SDM-SDI12G-TX – 12G SDI Output Module Card, 4K@60 12G SDI with Dual SDI Outputs
SDM-SDI12G-TX – 12G SDI Output Module Card, 4K@60 12G SDI with Dual SDI Outputs

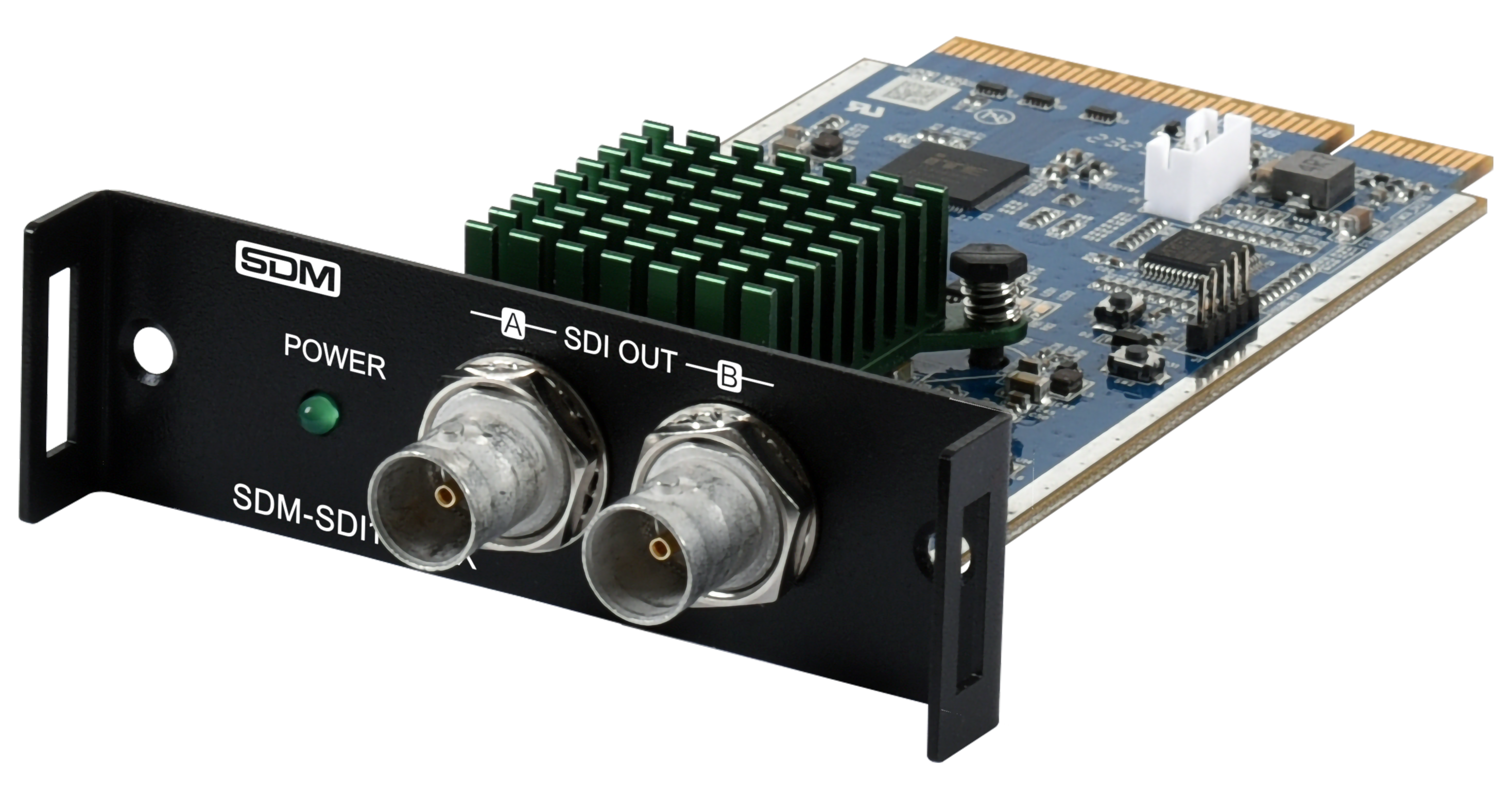

The SDM-SDI12G-TX is a 12G SDI transmitter module card from CYP’s SDM range.

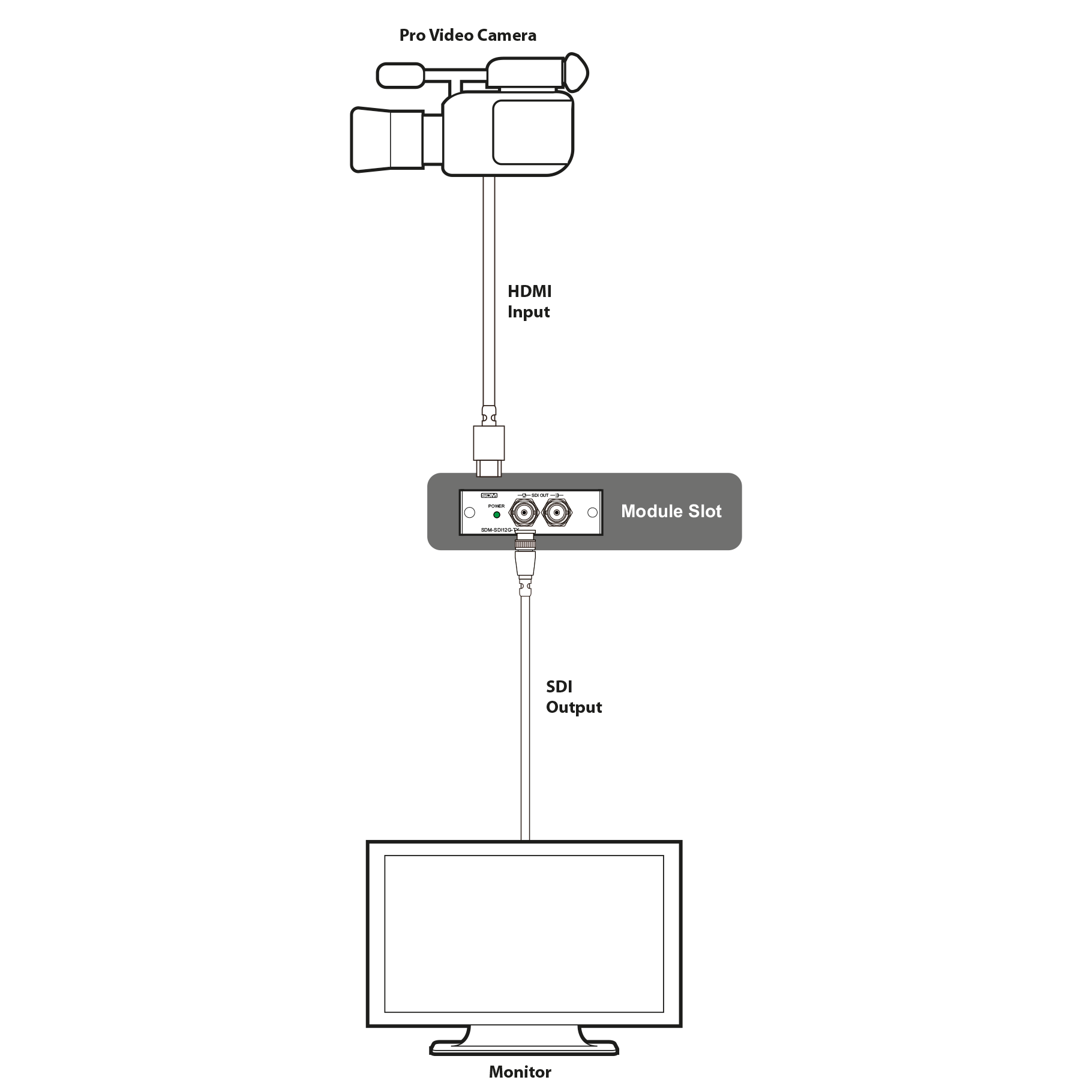

It is able to convert 12G, 6G, 3G, HD or SD SDI signals from the core module products, like the OR-PIP42SDMO. To be integrated with SDI devices like medical equipment, SDI displays or any wider SDI system.
This module offers customers great flexibility in different scenarios. Also, this module card can be used with other SDI product from CYP and can extend the distance of SDI signals up to 70 metres via an appropriate SDI cable (12G SDI signal source with a Belden 1694A SDI cable).
- Features
- Signal conversion from SDI signals to HDMI signals when integration with one of CYP's core SDM products

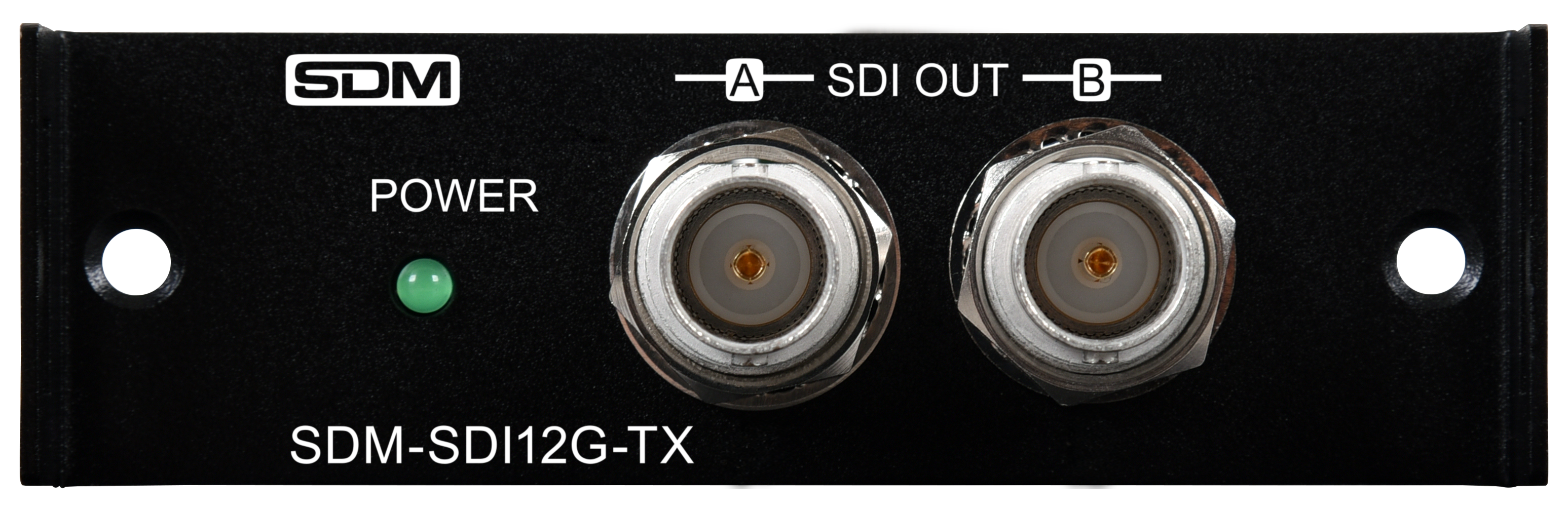

- Module has dual SDI outputs
Supports 12G, 6G, 3G, HD and SD SDI video formats
Supports output resolution up to 4K@60 4:2:2
Extension of SDI signals up to 70m (12G SDI), 100m (6G SDI), 200m (3G SDI) or 260m (HD SDI)
- Specification
Inputs N/A Outputs SDI 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI [1x BNC] PSU N/A Dimensions 82mm [W] x 25mm [H] x 111mm [D] Net Weight 100g Gross Weight 200g - Downloads
SDM-SDI12G-TX Manual SDM-SDI12G-TX Datasheet
