SDM-HBT1-TX – HDBaseT1 Transmitter SDM module
SDM-HBT1-TX – HDBaseT1 Transmitter SDM module

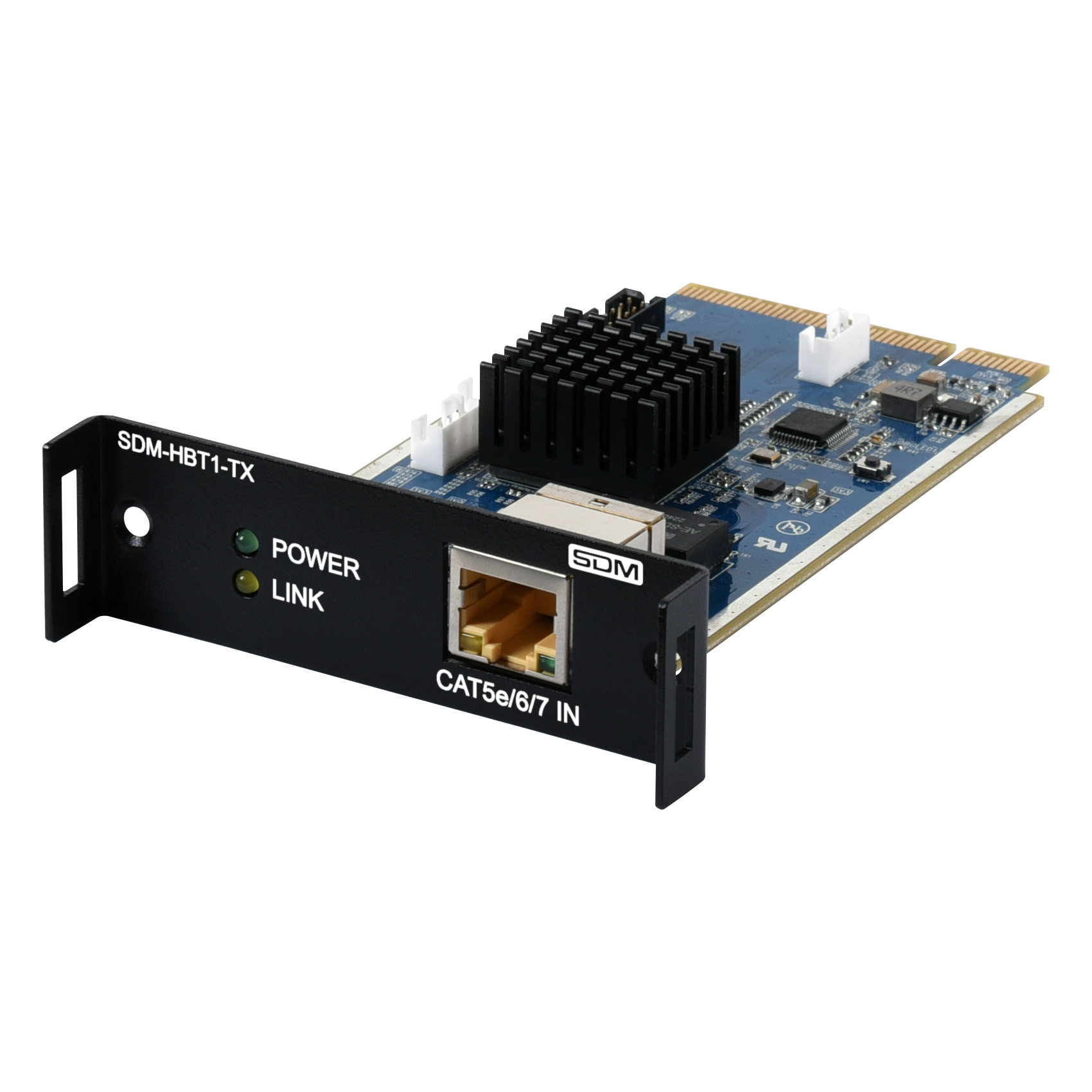

The SDM-HBT1-TX is an HDBaseT1, SDM Module Card that is able to transmit signals to a compatible HDBaseT receivers via Cat6 cabling.

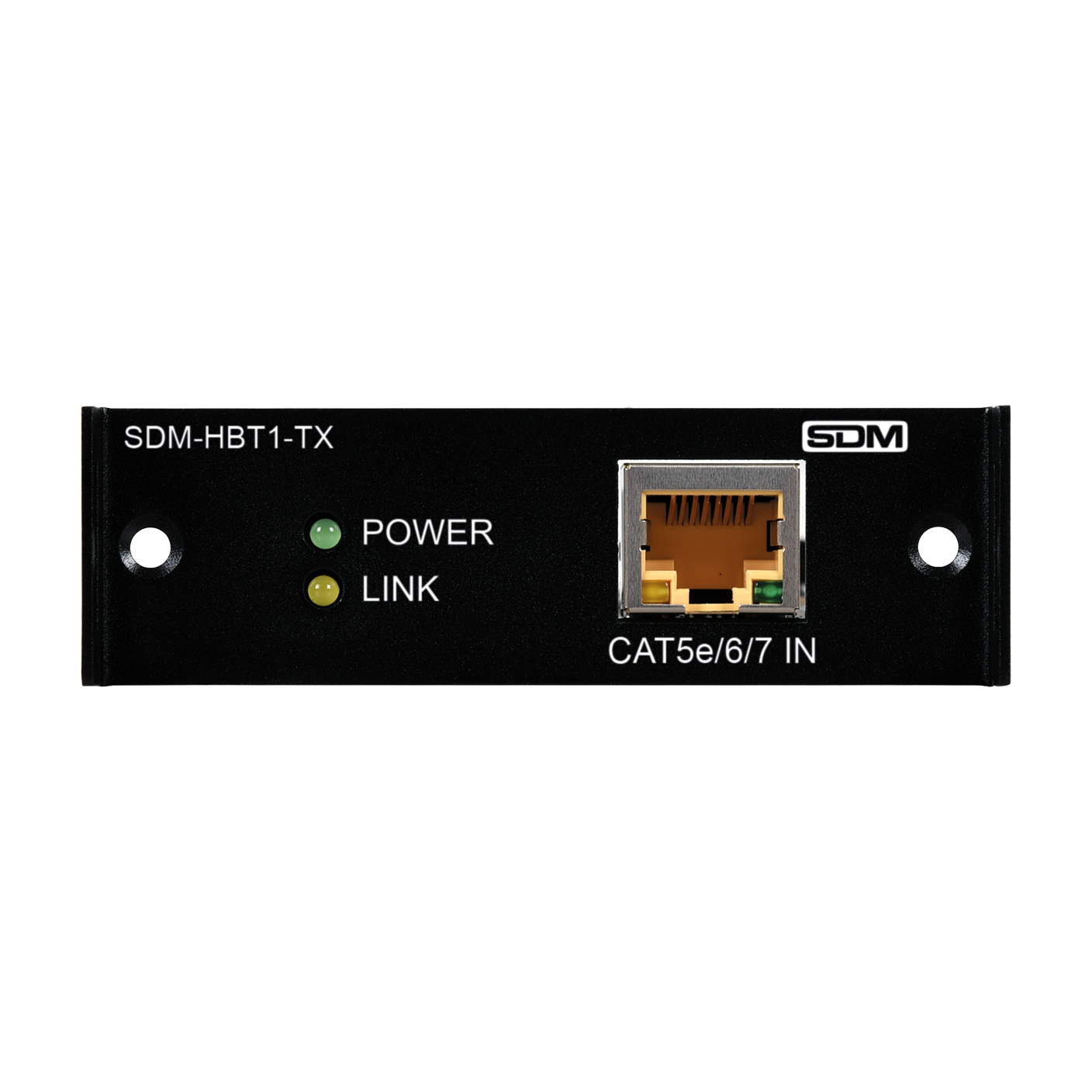

It supports resolutions up to 4K@60 4:2:0 or 4K30 4:4:4 and simply has a RJ45 HDBaseT input connection with Power and Link LED’s.

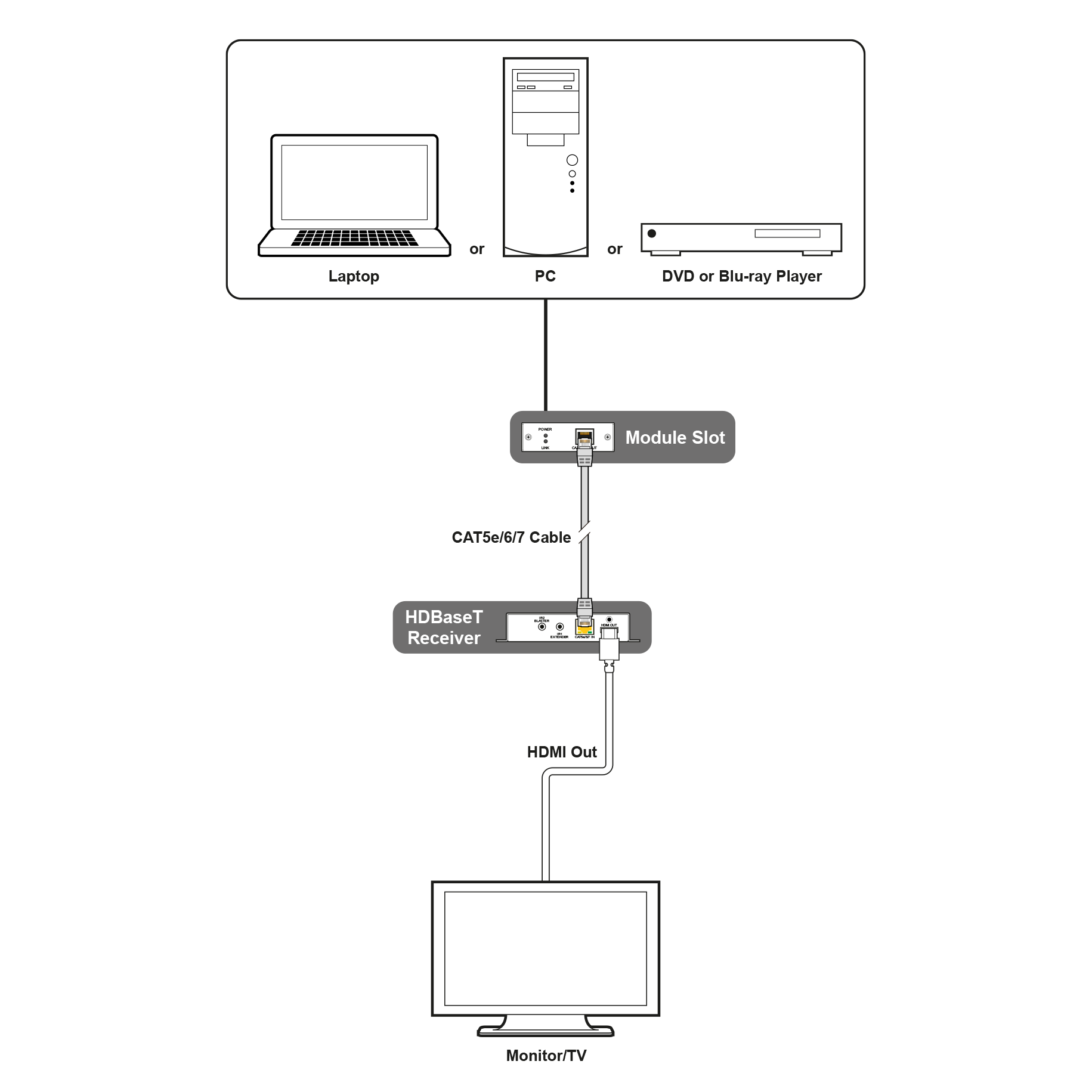

The SDM-HBT1-TX module card is compatible with CYP’s core SDM products like the OR-PIP42SDMO. It can be combined with CYP’s selection of different HDBaseT RX’s allowing for great installation flexibility.
- Features
- Compatible SDM core products with output Module slots
- Supports point to point extension for audio and video signals
- CAT cables can reach up to 40 metres at maximum 4K resolutions
- HDCP 1.x and 2.2 compatible
- Will transmit HDBaseT from any core SDM product into any wider HDBaseT system
- Specification
Inputs N/A Outputs HDBaseT HDMI & Propriety Data [1x RJ45] PSU N/A Dimensions 82mm [W] x 25mm [H] x 111mm [D] Net Weight 160g Gross Weight 60g - Downloads
SDM-HBT1-TX Manual
SKUSDM-HBT1-TX
