SDM-SDI12G-RX – 12G SDI Input Module Card, 4K@60 12G SDI with SDI Loop Out
SDM-SDI12G-RX – 12G SDI Input Module Card, 4K@60 12G SDI with SDI Loop Out

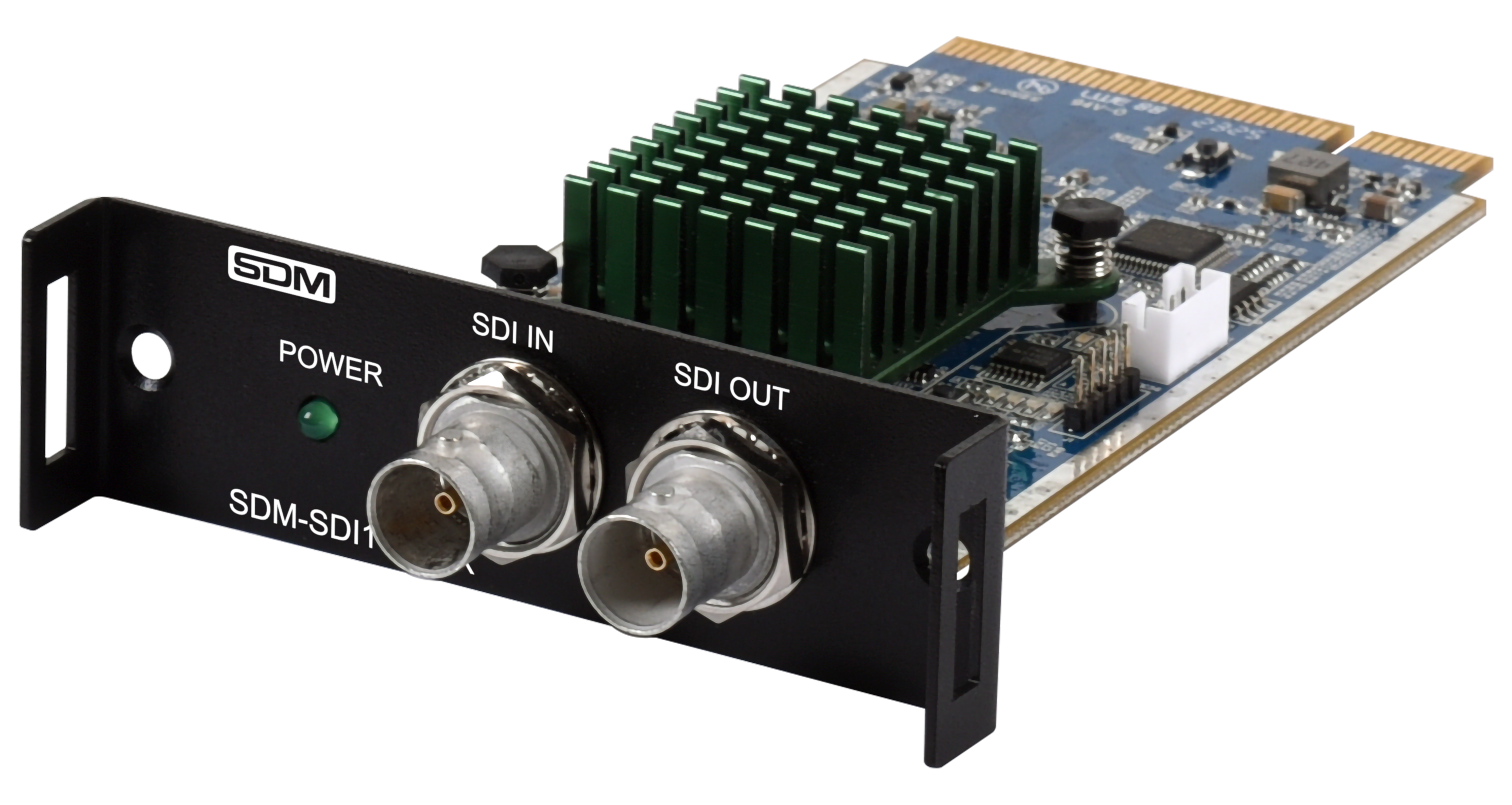

The SDM-SDI12G-RX is a 12G SDI receiver module card from CYP’s SDM range.

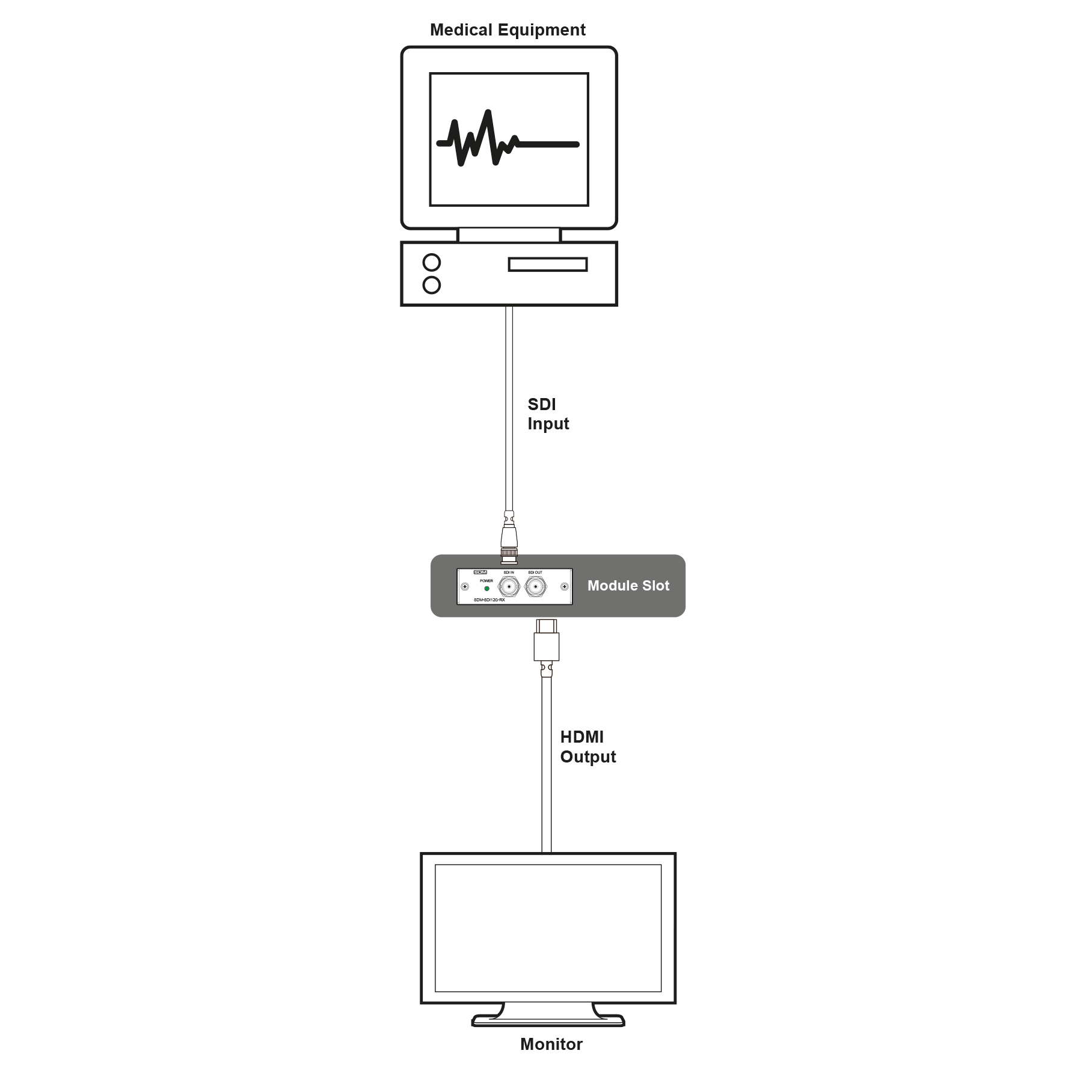

It is able to convert 12G, 6G, 3G, HD or SD SDI signals into the core module product, like medical equipment, SDI cameras and more to integrate into the core SDM products like the OR-32SDMI.
This module offers customers great flexibility in different scenarios. Also, this module card can be used with other SDI product from CYP and can extend the distance of SDI signals up to 70 metres via an appropriate SDI cable (12G SDI signal source with a Belden 1694A SDI cable). The SDM-SDI12G-RX also has an looped SDI output.
- Features
- Signal conversion from SDI signals to HDMI signals when integration with one of CYP's core SDM products

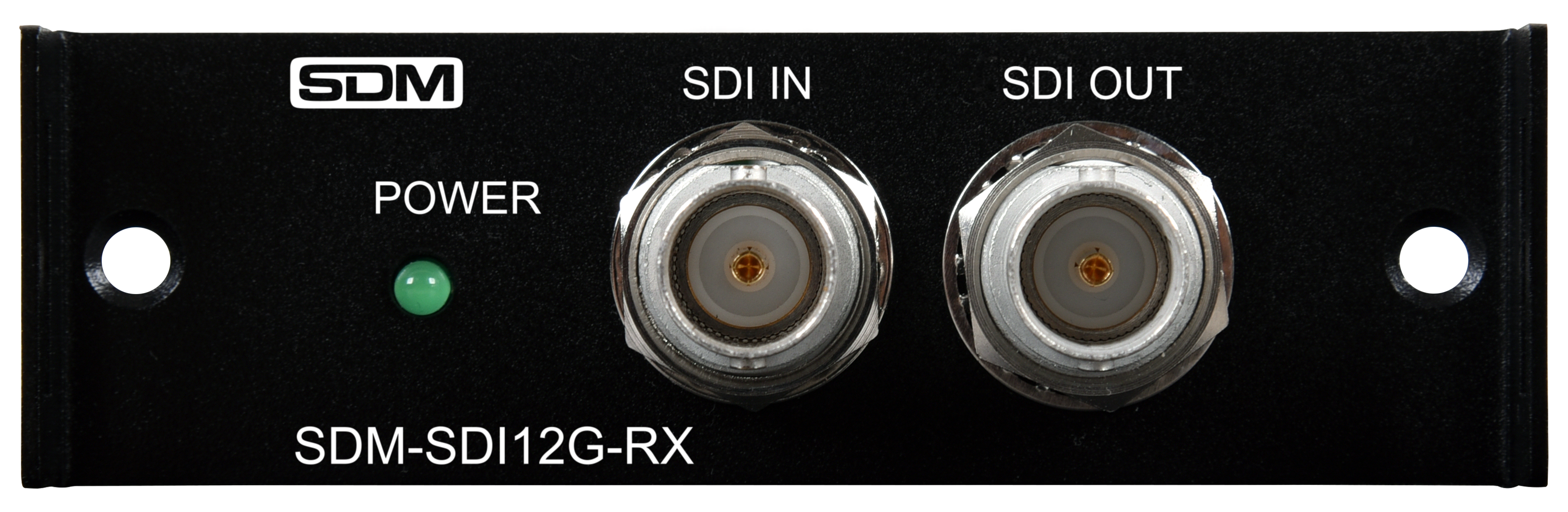

- Module has one SDI input port and one SDI loop out port
Supports 12G, 6G, 3G, HD and SD SDI video formats
Supports output resolution up to 4K@60 4:2:2
Extension of SDI signals up to 70m (12G SDI), 100m (6G SDI), 200m (3G SDI) or 260m (HD SDI)
- Specification
Inputs SDI 12G-SDI / 6G_SDI / 3G-SDI / HD-SDI [1x BNC] Outputs SDI 12G-SDI / 6G-SDI / 3G-SDI / HD-SDI [1x BNC] PSU N/A Dimensions 82mm [W] x 25mm [H] x 111mm [D] Net Weight 100g Gross Weight 200g - Downloads
SDM-SDI12G-RX Manual SDM-SDI12G-RX Datasheet
