SDM-HBT1-RX – HDBaseT1 Receiver SDM Module
SDM-HBT1-RX – HDBaseT1 Receiver SDM Module

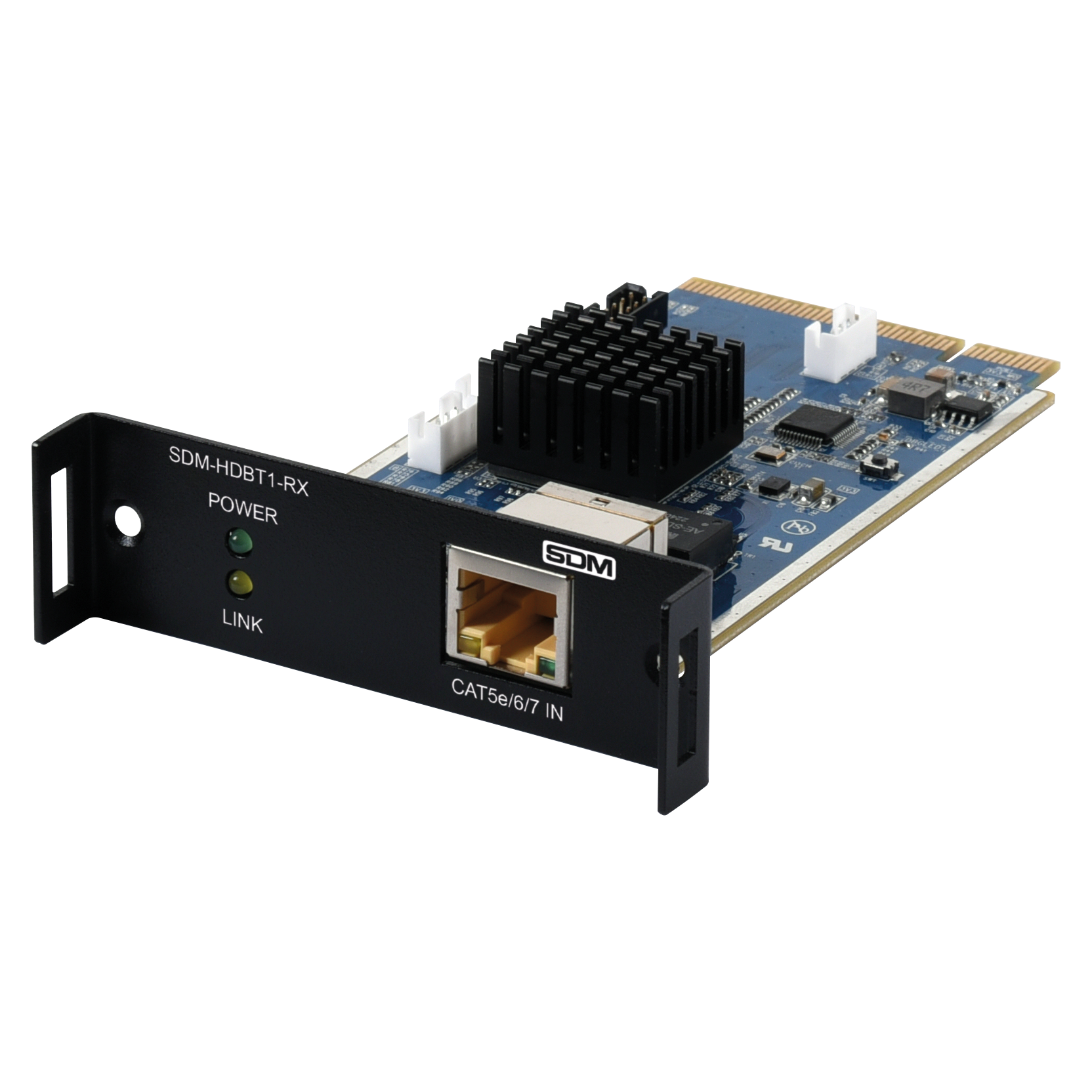

The SDM-HBT1-RX is an HDBaseT1, SDM Module Card that is able to receive signals from compatible HDBaseT transmitters via Cat6 cabling.

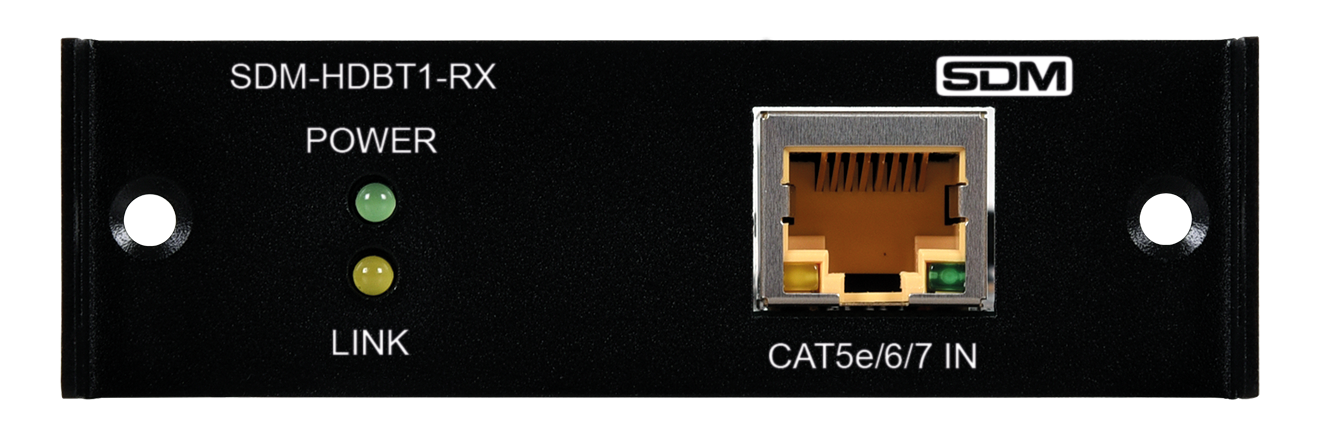

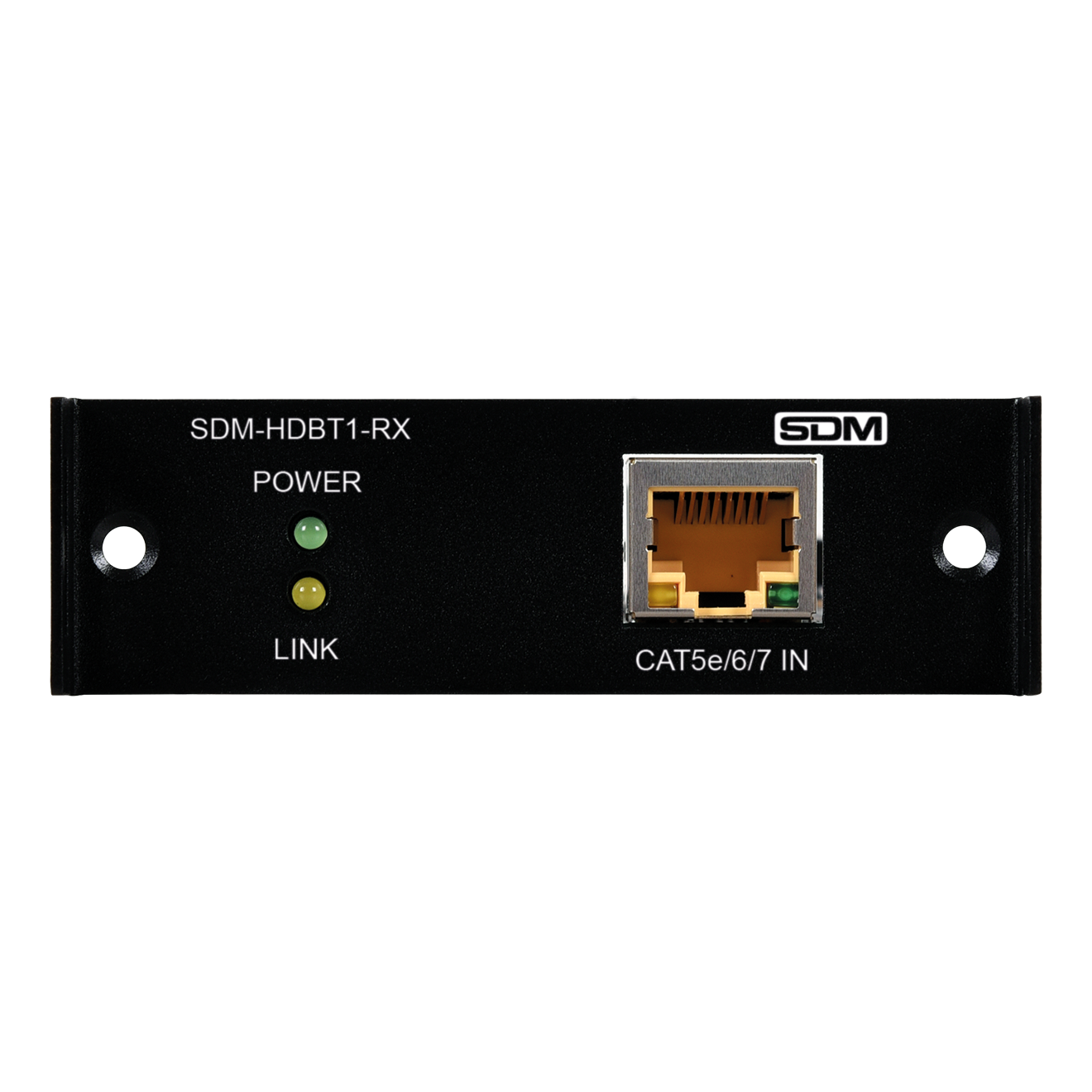

It supports resolutions up to 4K@60 4:2:0 or 4K30 4:4:4 and simply has a RJ45 HDBaseT output connection with Power and Link LEDs.

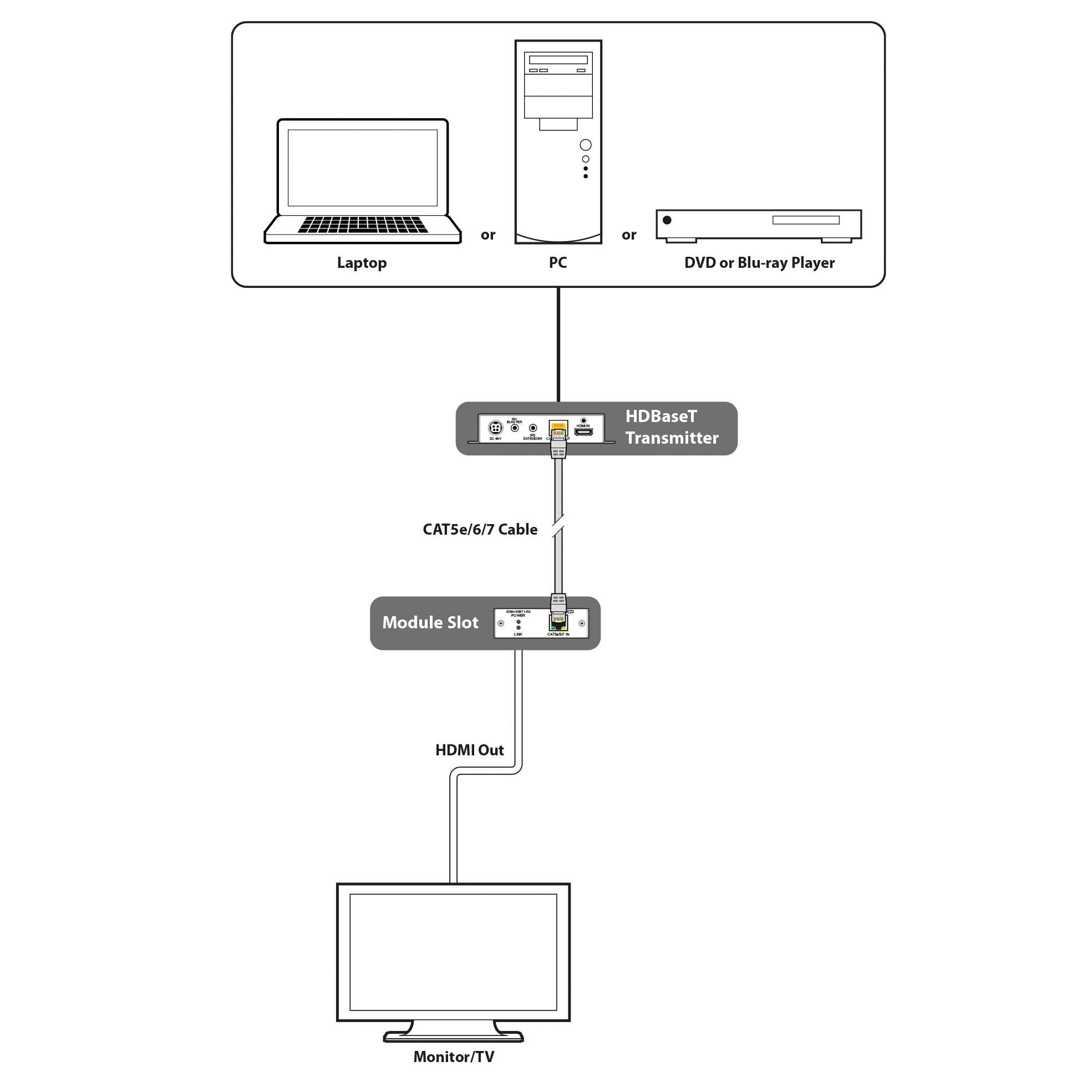

The SDM-HBT1-RX module card is compatible with CYP’s core SDM products like the OR-32SDMI. It can be combined with CYP’s selection of different HDBaseT TX’s allowing for great installation flexibility.
- Features
- Compatible SDM core products with input Module slots
- Supports point to point extension for audio and video signals
- CAT cables can reach up to 40 meters at maximum 4K resolutions
- HDCP 1.x and 2.2 compatible
- Will receive and integrate any HDBaseT transmission in the SDM core product in use
- Specification
Inputs HDBaseT HDMI & Propriety Data [1x RJ45] Outputs 1x LC-LC Duplex Multimode 62.5-125 Fibre [1x TX: SFP+ HDMI & Propriety Data]
1x HDMI [1x RX: HDMI Uncompressed AV and Data]PSU N/A Dimensions 82mm [W] x 25mm [H] x 111mm [D] Net Weight 160g Gross Weight 60g - Downloads
SDM-HBT1-RX Manual
