PU-1201-KIT – Full 4K HDMI over CAT extender kit with local HDMI bypass and RX input
PU-1201-KIT – Full 4K HDMI over CAT extender kit with local HDMI bypass and RX input
The PU-1201-KIT is a UHD+ HDMI over Cat Cable extension system which is able to extend high quality 4K HDMI video along with audio up to 60m (197ft) of Cat.6a/7 network cable without signal loss or introducing delay.

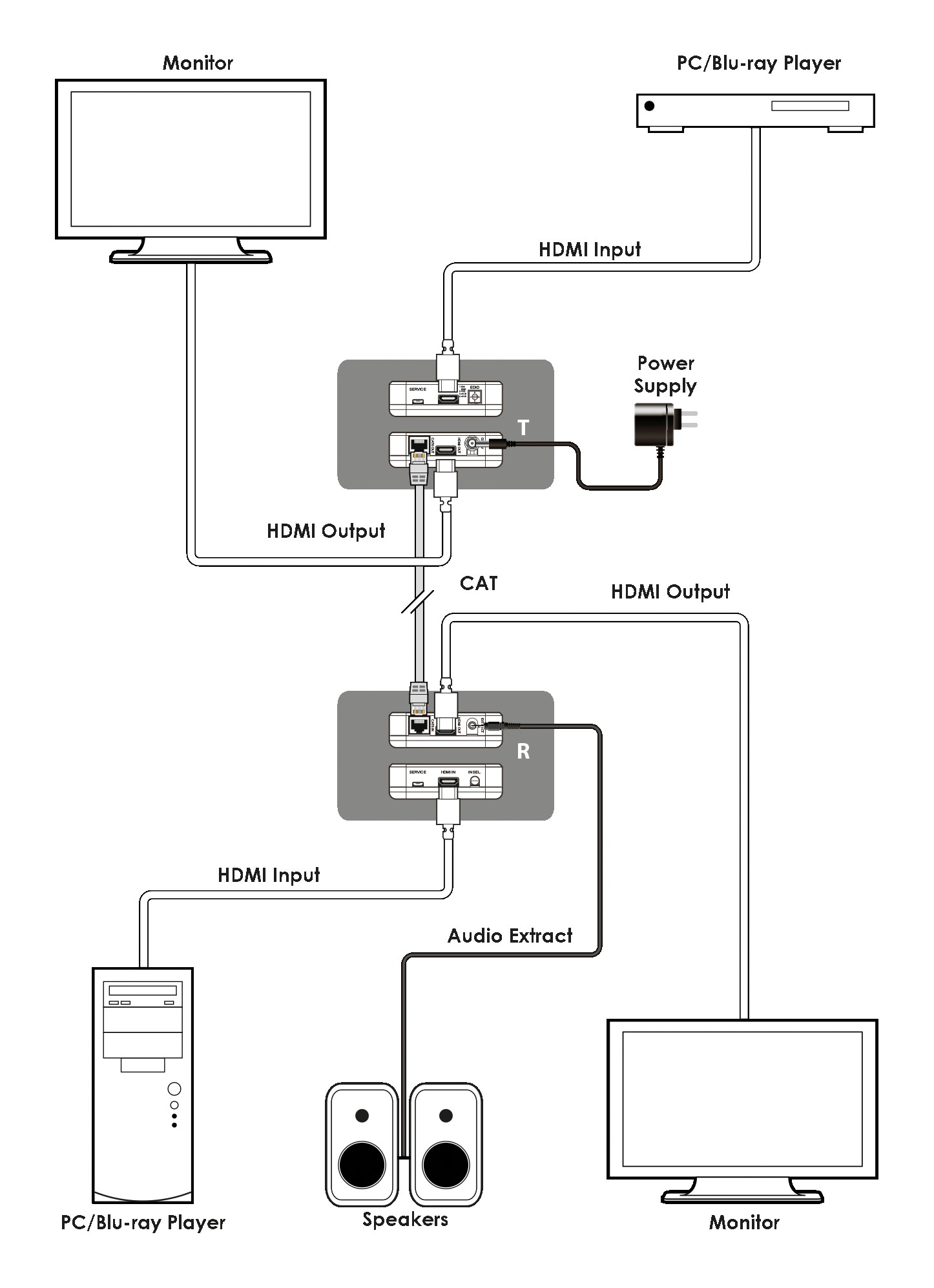

The transmitter unit includes basic EDID management functionality, an HDMI bypass output, and provides PoC (Power over Cable) to the connected supplied receiver. The receiver itself has a local HDMI input and an analogue stereo audio output.
- Features
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- TX: 1 x HDMI input, 1 x CAT.6 output, 1 x HDMI bypass output
- RX: 1 x HDMI output, 1 x CAT.6 input, 1 x local HDMI input
- Supports HDMI input and CAT.6 output resolutions up to 4K@60Hz (4:4:4, 8-bit)
- CAT.6a/7 extension can reach up to 60m (197ft)
- CAT.5e/6 extendion can reach up to 40m (131ft)
- Supports extension of many audio formats including LPCM (up to 8 channels) and standard Bitstream
- Basic EDID management with 3 built in EDIDs and an EDID bypass option
- Top panel LEDs indicate link state, power & additional on the RX input selected LED
- Unit is a PoC (PSE) device and can provide power to a connected compatible receiver
- EDID can switch among 4 modes: Sink EDID, FHD, UHD, and UHD+
- Specification
Inputs 1x HDMI [1x TX: HDMI Uncompressed AV and Data]
1x RJ45 [1x RX: Extender CAT in HDMI & Propriety Data]

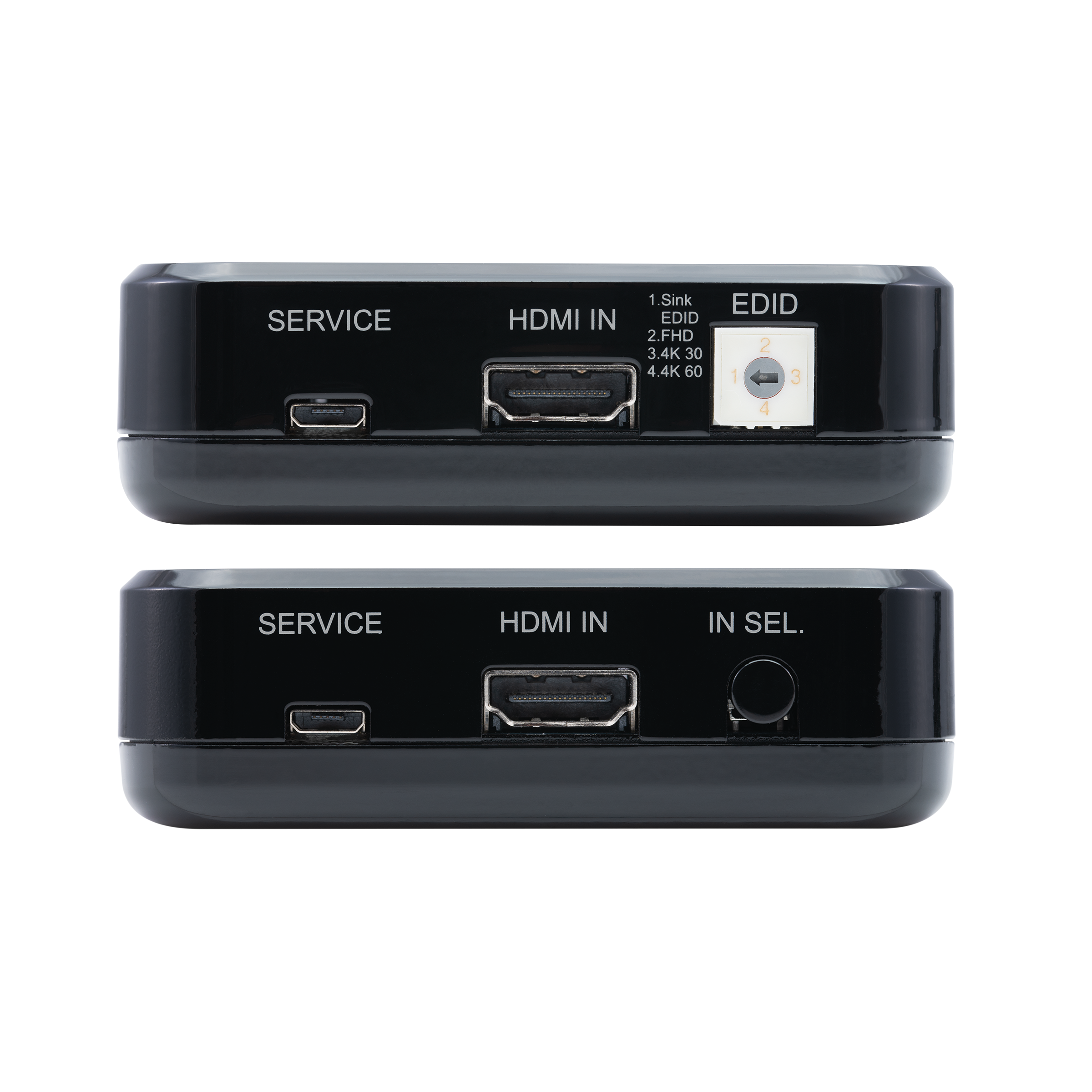

1x HDMI [1x RX: local HDMI in Uncompressed AV and Data]
1x USB Micro [1x Service Port Propriety Data]Outputs 1x HDMI [1x RX: HDMI Uncompressed AV and Data]
1x HDMI [1x TX: HDMI Uncompressed AV and Data]

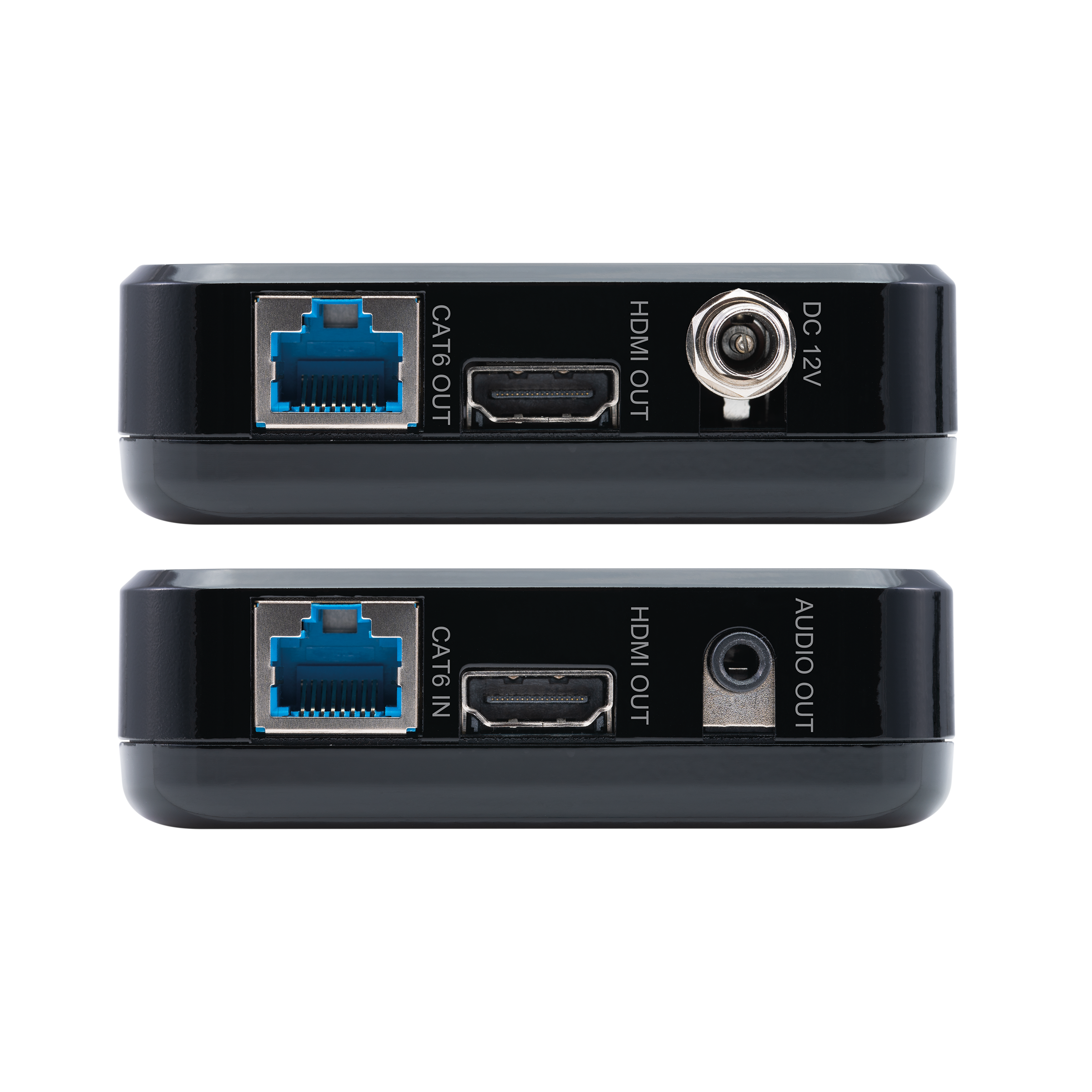

1x RJ45 [1x TX: Extender CAT out HDMI & Propriety Data]POE PSU PoC PSU 12V/3A Dimensions 85mm [W] x 26mm [H] x 85mm [D] per Unit. Net Weight 100g Gross Weight 740g - Downloads
PU-1201-KIT Manual
