PU-101PL-KIT - HDBaseT1 Lite HDMI Extender Set with PoC, 2-way IR and RS232
PU-101PL-KIT - HDBaseT1 Lite HDMI Extender Set with PoC, 2-way IR and RS232

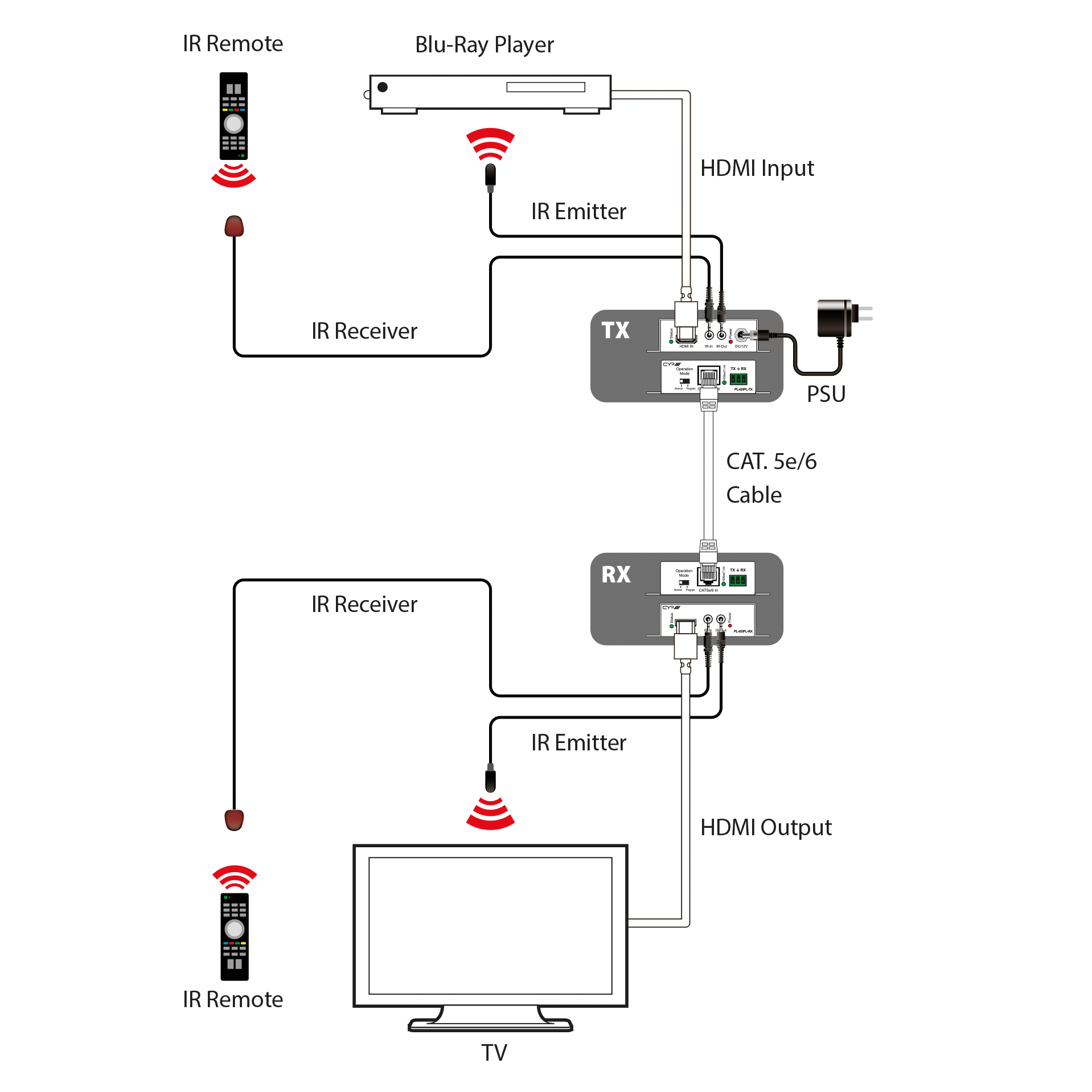

The PU-101PL-Kit, HDMI extender with bi-directional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 70 metres at 1080p or 40 metres at 4K. with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT technology allows a full usage of HDMI and controls over CAT5e/6
- Features
- HDCP 2.2 Compliant
- HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
- 4K/2K & 4K UHD signals can be transmitted up to 40m via CAT5e/6
- Complies with HDBaseT™- Lite specifications
- HDMI status, Power & HDBaseT Link LED's
- Supports two-way IR, RS-232 Control, and Power Over Cable (PoC)
- Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Specification

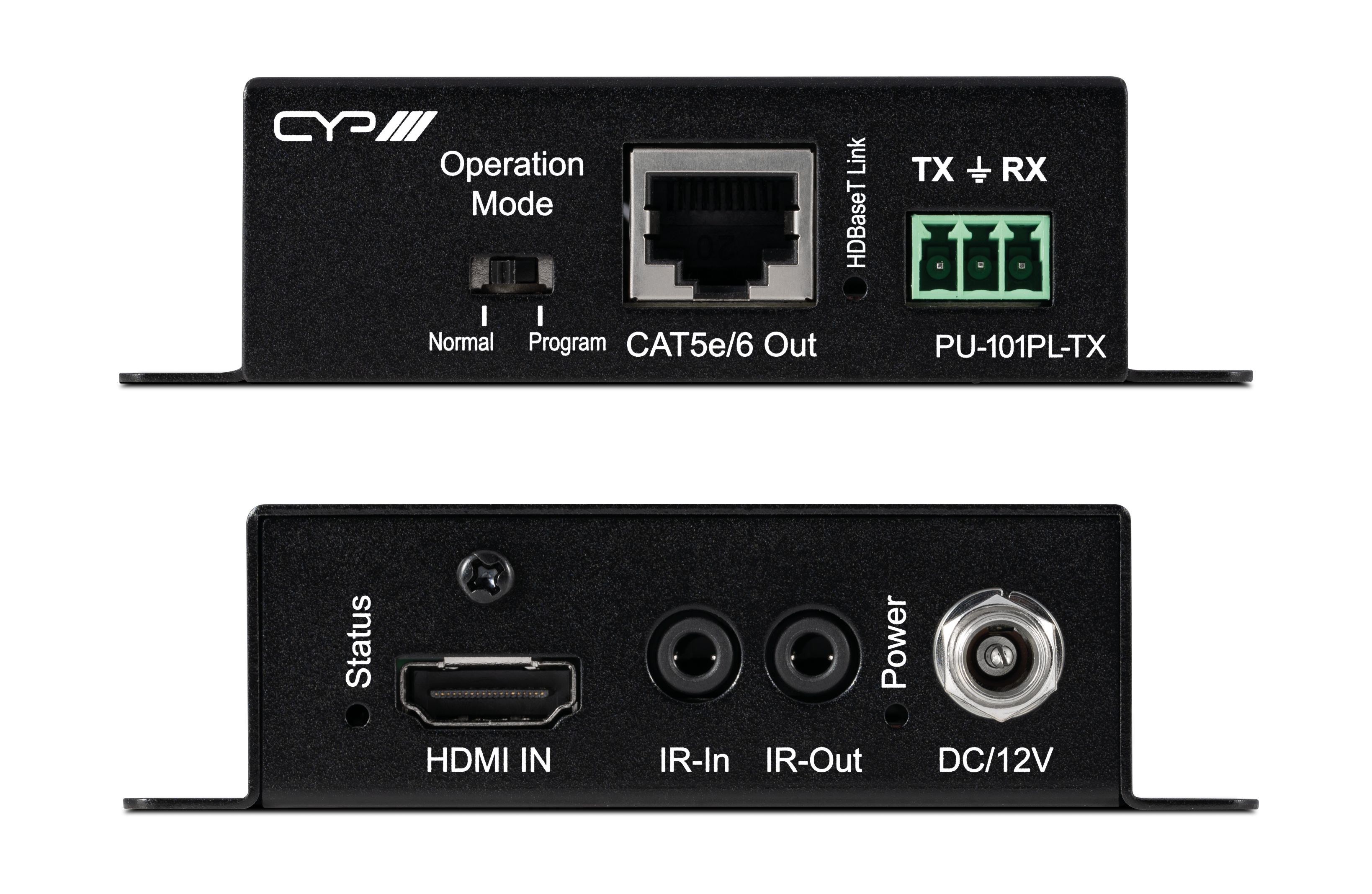

Inputs 1x HDMI [1x HDMI (TX) Uncompressed AV and Data]
1x RJ45 [1x HDBaseT (RX) HDMI & Propriety Data]
1x Phoenix (3 pin) [1x RS-232]

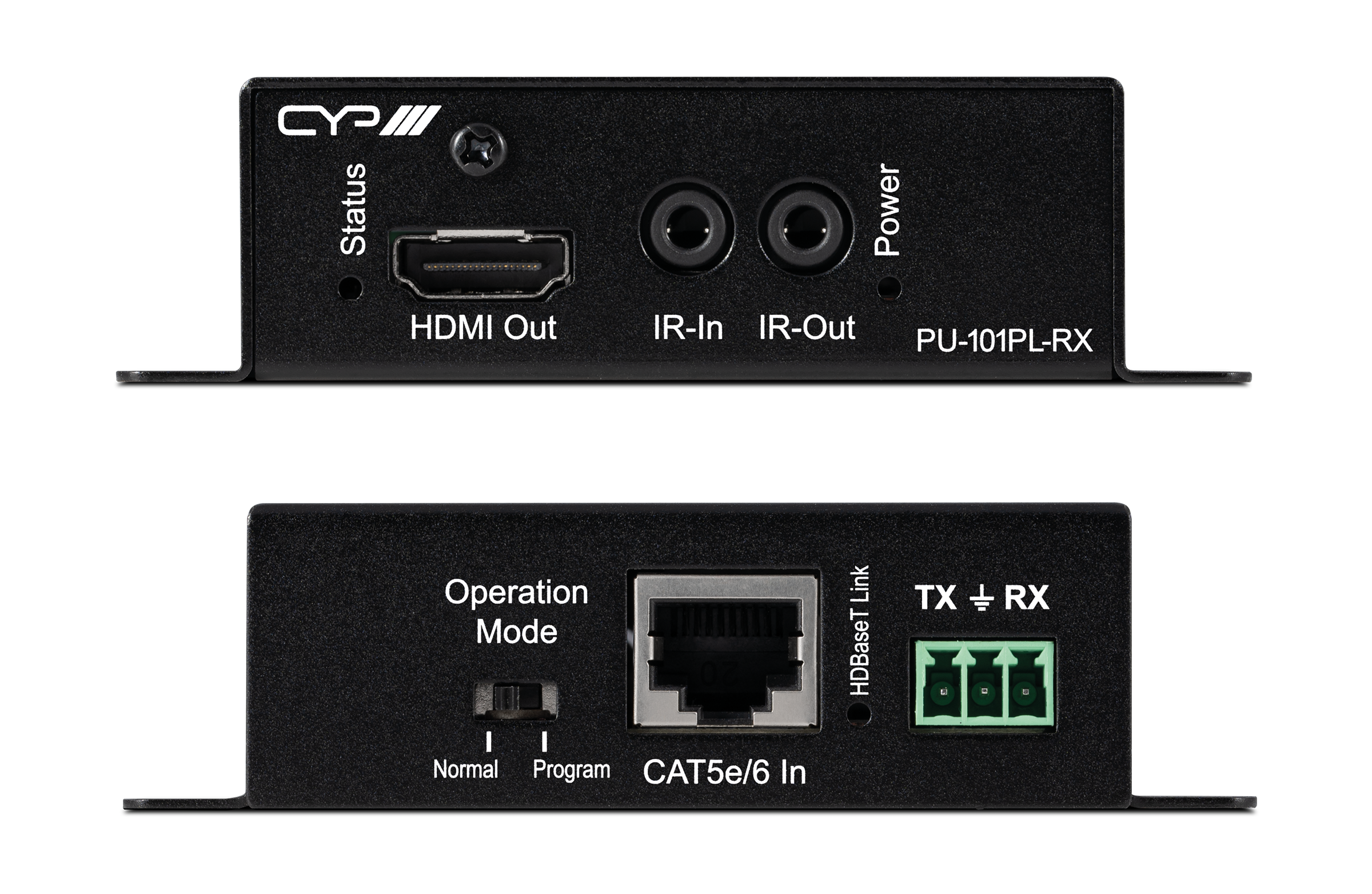

2x 3.5mm Stereo mini-jack [2x Infra Red Receiver]Outputs 1x HDMI [1x HDMI (RX) Uncompressed AV and Data]
1x RJ45 [1x HDBaseT (TX) HDMI & Propriety Data]
1x Phoenix (3 pin) [1x RS-232]
2x 3.5mm Stereo mini-jack [2x Infra Red Emitter]POE PSU PoC PSU 12V/2A Dimensions 71mm [W] x 25mm [H] x 105mm [D] Net Weight 520g Gross Weight 880g - Downloads
PU-101PL-KIT Manual
