PUV-1230PL-KIT – HDBaseT1 LITE KIT with OAR & PoH
PUV-1230PL-KIT – HDBaseT1 LITE KIT with OAR & PoH

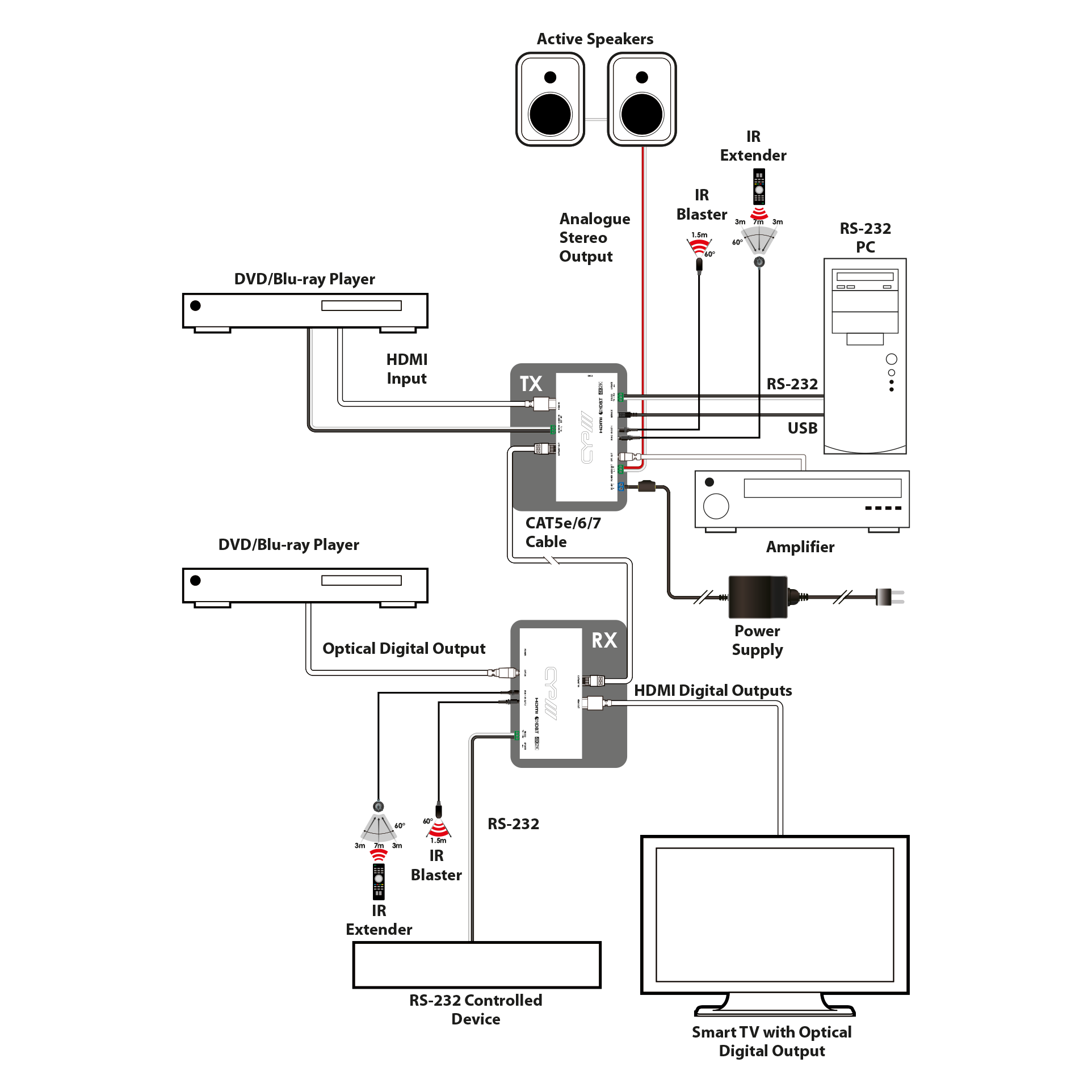

The PU-1230PL-KIT enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and OAR (Optical Audio Return) up to 60m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 60m (35m over CAT5e/6).
- Features
- HDCP2.2 Compliant
- High-Definition video and audio, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 35m via CAT5e/6 and 60m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR) system
- Supports HDCP repeating and CEC functions
- Specification

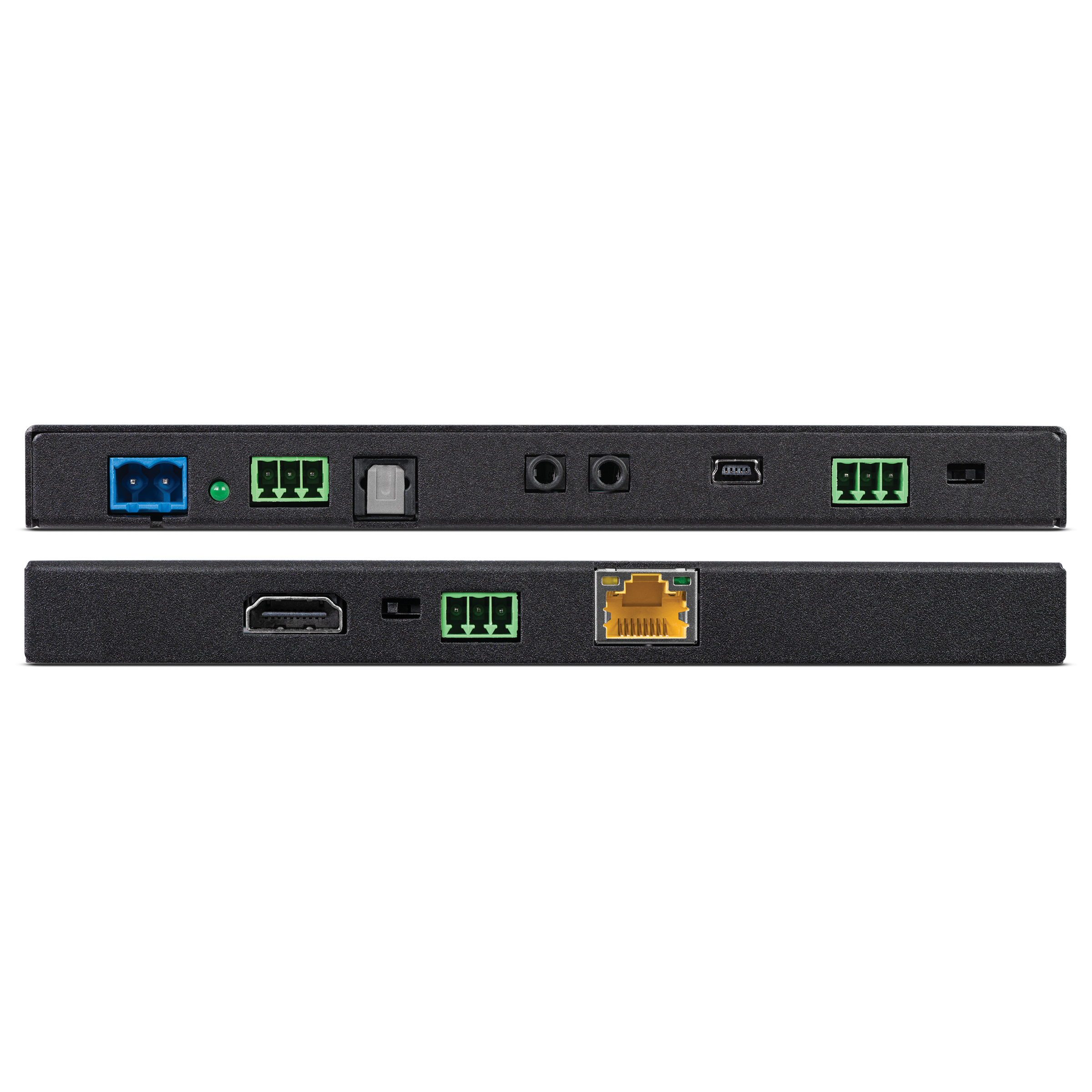

Inputs 1x HDMI [1x TX HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x TX Infra Red Receiver]
1x Phoenix (3 pin) [1x TX RS-232]

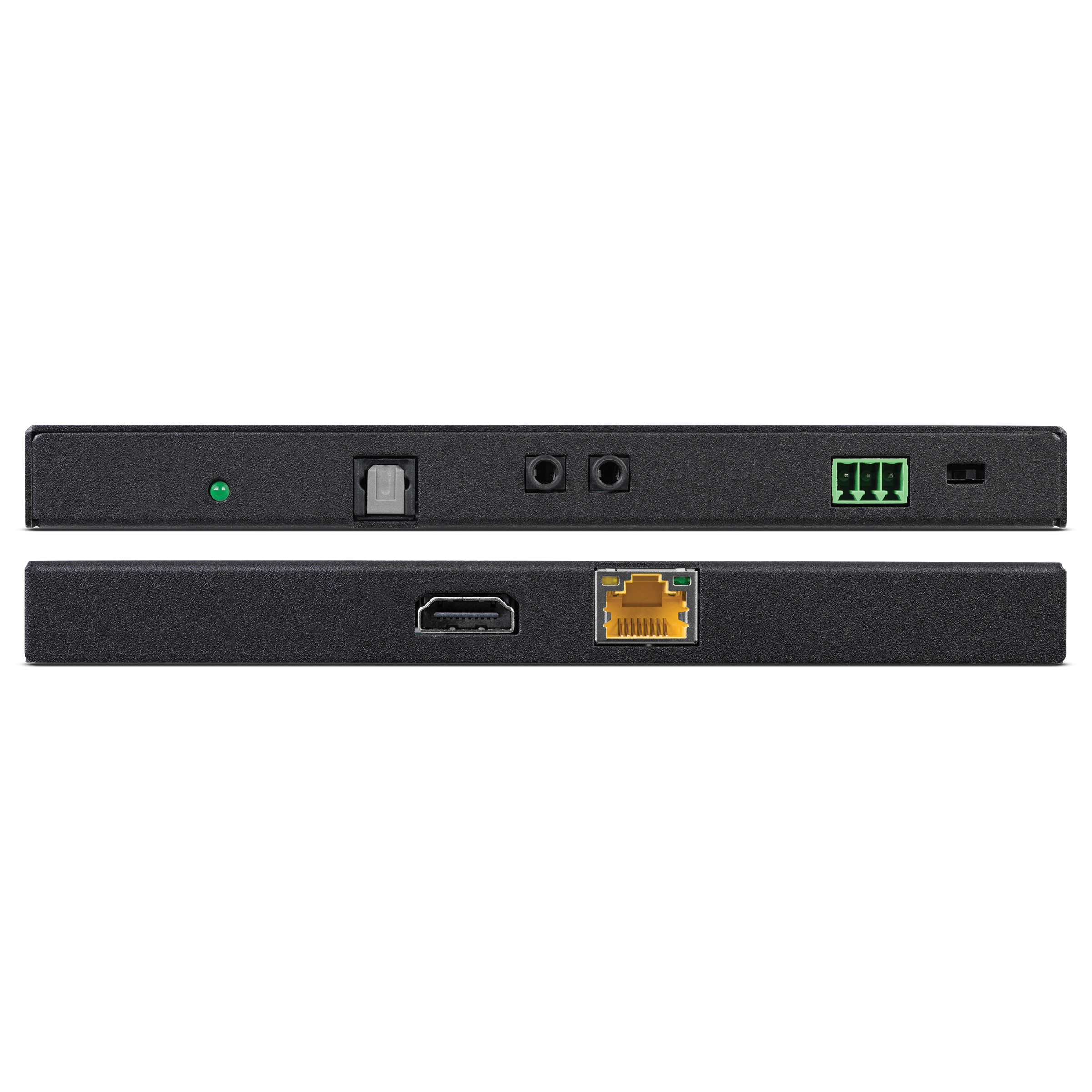

1x RJ45 [1x RX HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x RX Infra Red Receiver]
1x Toslink [1x RX Dolby Digital / DTS / 2 Channel LPCM]
Outputs 1x HDMI [1x RX HDMI Uncompressed AV and Data]
1x Phoenix (3 pin) [1x RX RS-232]
1x 3.5mm Stereo mini-jack [1x RX Infra Red Emitter]
1x RJ45 [1x TX HDMI & Propriety Data]
1x Toslink [1x TX Dolby Digital / DTS / 2 Channel LPCM]
1x Phoenix (3 pin) [1x TX Stereo (L/R) Audio Output]
1x 3.5mm Stereo mini-jack [1x TX Infra Red Emitter]
POE PSU PoH PSU 48V/0.83A Dimensions 163mm [W] x 16mm [H] x 78mm [D] Net Weight 400g Gross Weight 1.68kg - Downloads
PUV-1230PL-KIT Manual
