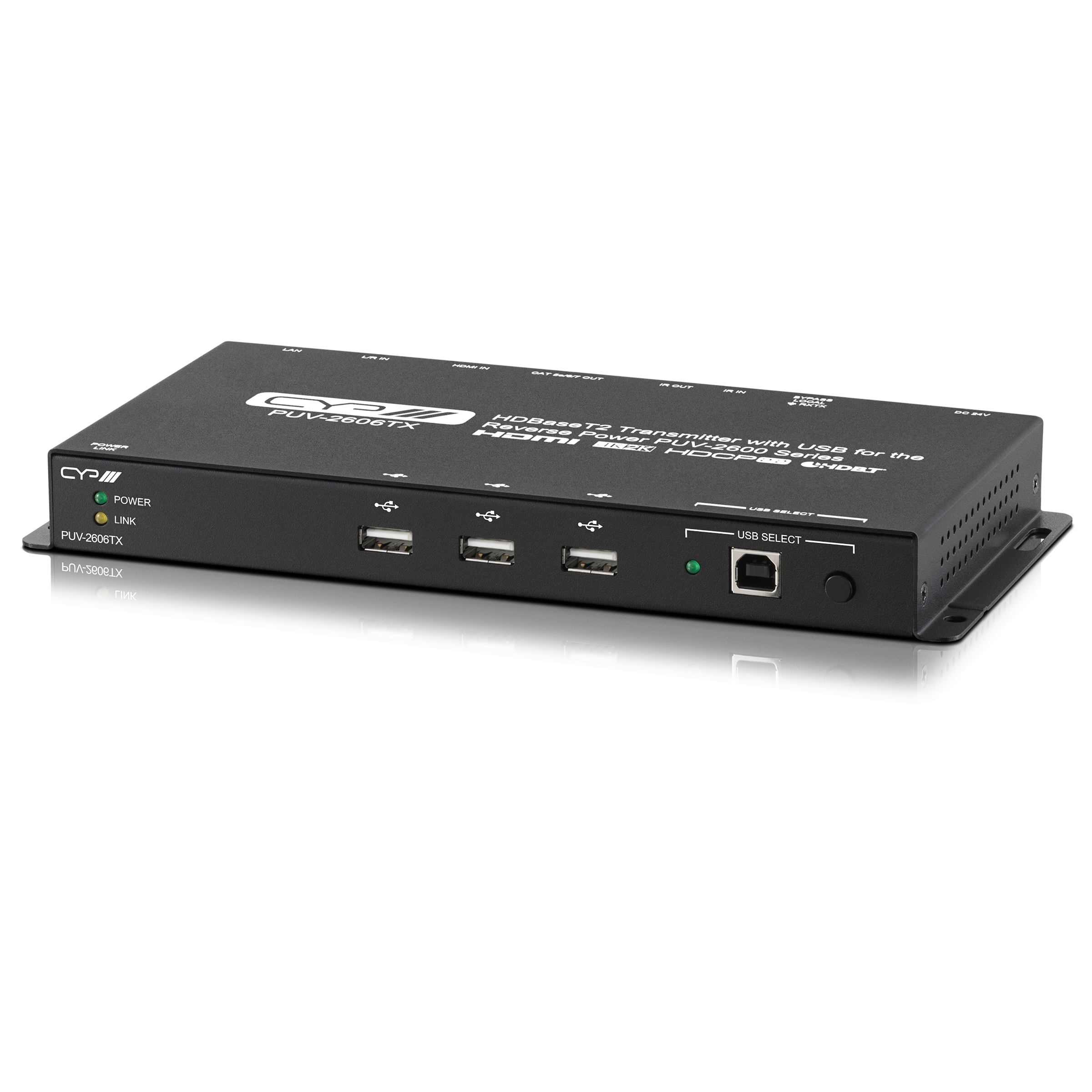

The PUV-2606TX HDBaseT2 Transmitter has USB connectivity, audio embedding and all the features of HDBaseT2 plus the reverse PoH (RX powers TX) featured in all our PUV-2600 range along with its primary HDMI and analogue audio inputs.

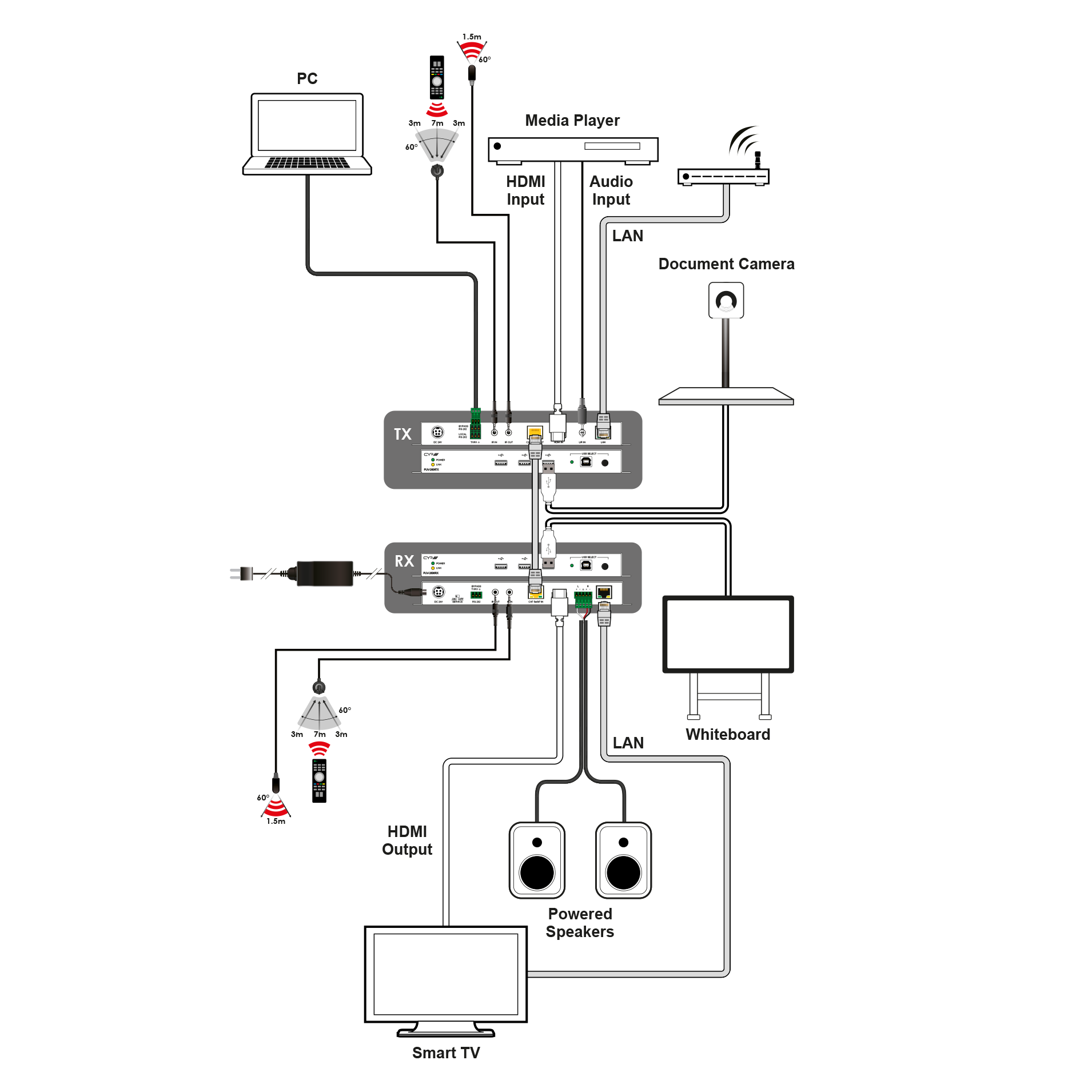

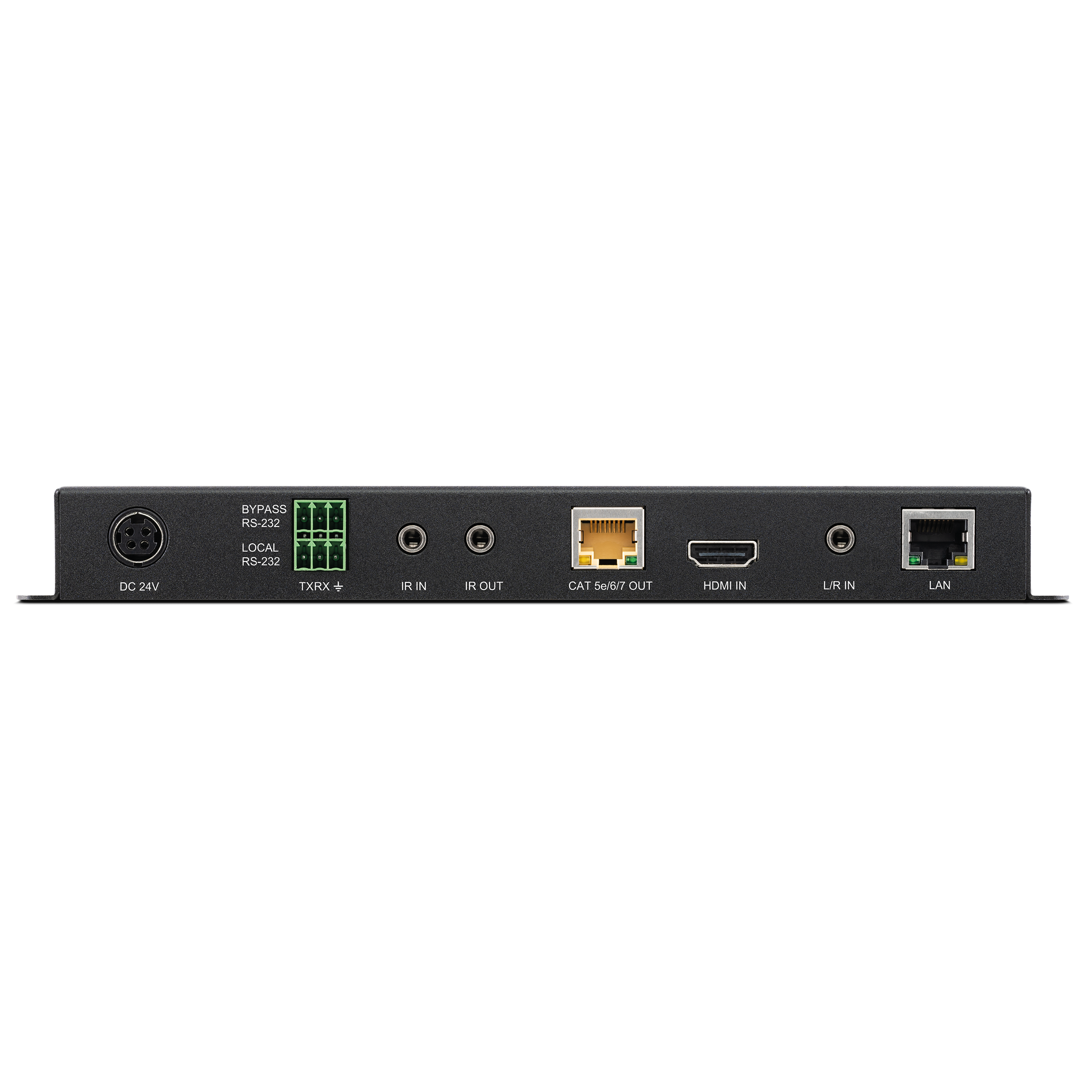

The PUV-2606TX can send uncompressed audio/video along with Ethernet, USB, IR, and RS-232 over a single Cat.6/7 cable up to a distance of 100m. The HDMI input supports  resolutions up to 4K@60Hz (4:2:0, 8-bit). The minijack 3.5mm stereo audio input, may also be embedded into the HDBaseT output signal. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD+ HDMI video sources, up to and including 4K@60Hz (4:2:0, 8-bit).

Whether paired with the standard PUV-2606RX or the more advanced matrix receiver, the PUV-2600RX or EL-8400VA has a total of 3 selectable USB host (Type-B/C) connections available which provide access to 5 USB device (Type-A) ports forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). Additionally, the USB Type-C input can provide power (up to 60W) to any connected device (only available when the unit is powered locally). All USB ports on the transmitter support up to USB 3.0 data transfer speeds.

Additional functionality such as advanced EDID management, HDCP management, and basic signal event automation (which can automatically send customised RS-232 or CEC commands to an external device) are also available via the webGUI or via the control commands clearly listed in the product manual.

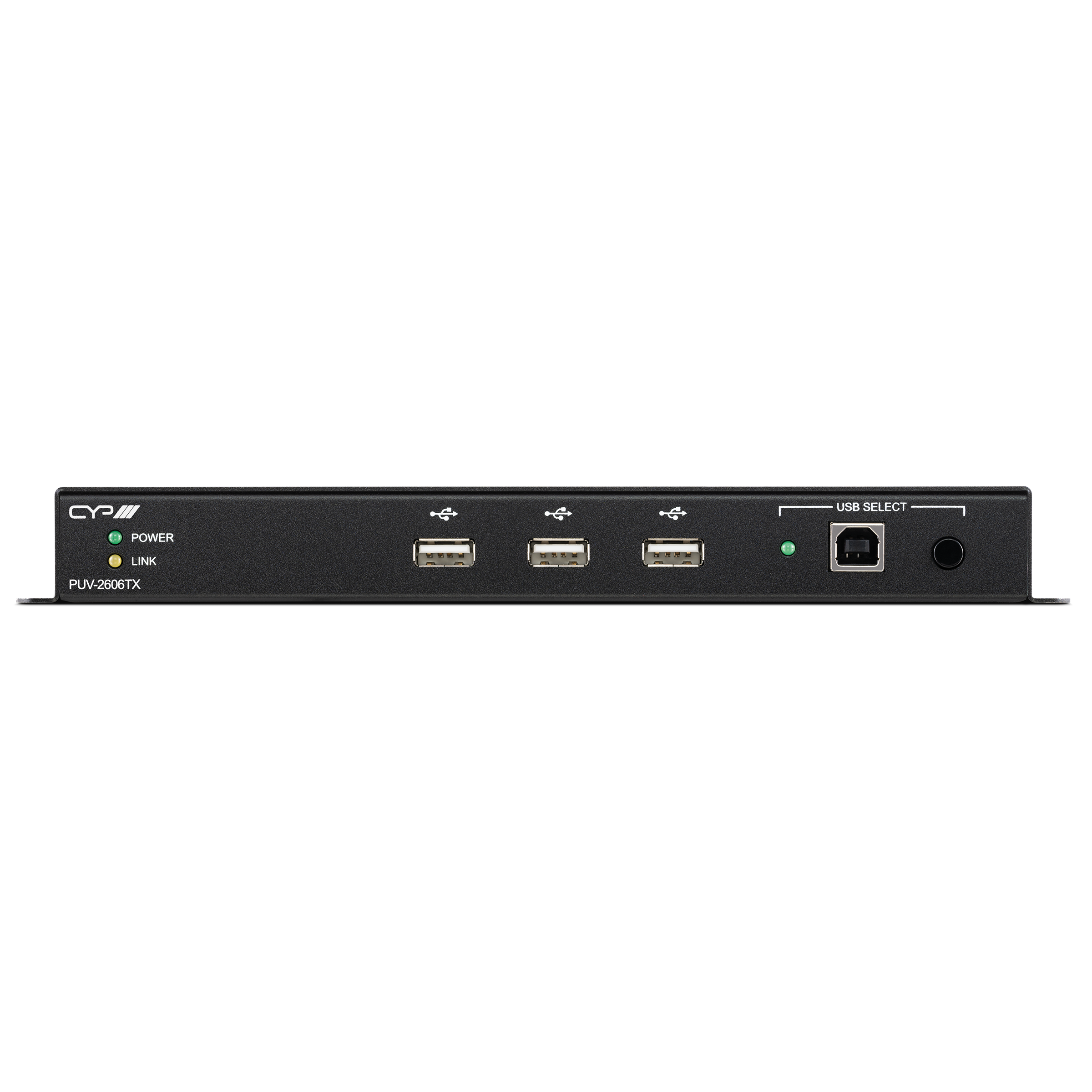

The PUV-2606TX can be powered locally with a 24V power supply or remotely via PoH (Power over HDBaseT) from a compatible PUV-2600 series HDBaseT receiver or EL-8400VA, allowing for greater flexibility in installations. Via the front panel buttons you can switch USB host, can be configured and controlled via webGUI, Telnet, and RS-232.
