OR-DT42-4K22 - UHD+ 4x2 HDMI Matrix with Dante Decoder
OR-DT42-4K22 - UHD+ 4x2 HDMI Matrix with Dante Decoder

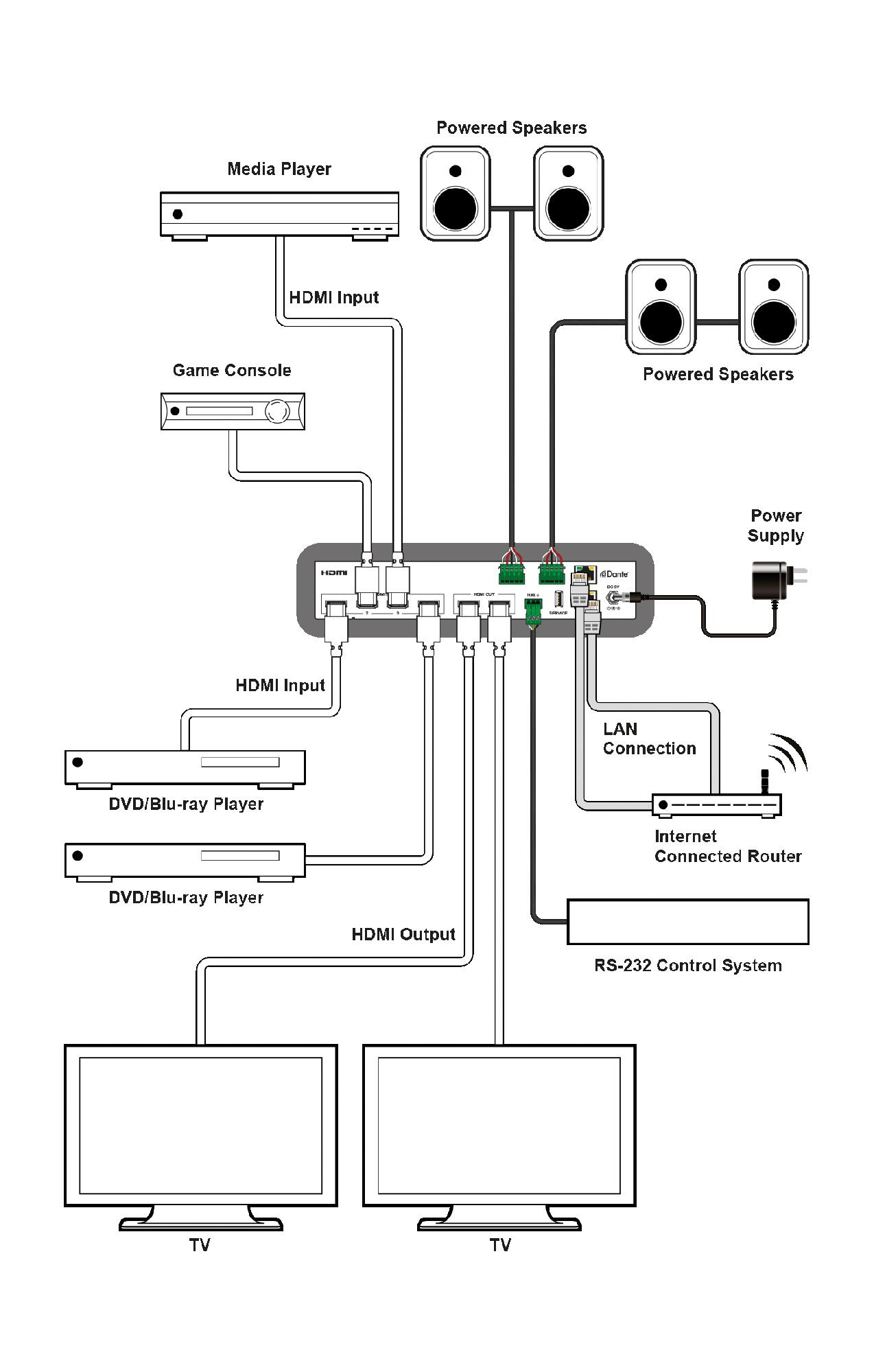

The OR-DT42-4K22 integrates Dante® technology into a 4x2 HDMI Matrix. It is a high performance HDMI switch which provides 4K UHD+ (18Gbps) HDMI matrix routing and integrated Dante®/AES67 network audio support, including insertion and extraction. It is an ideal solution for switching between multiple sources in a control room, conference room or classroom while simultaneously providing and receiving high quality digital stereo audio via the connected network. Video resolutions up to 4K@60Hz 4:4:4, 8-bit with 8 channel LPCM or HD bitstream audio is supported for local routing while 2 channel LPCM audio is supported via Dante®.
Basic control of video and audio routing is provided by front panel controls, with additional control via WebGUI, RS-232, and Telnet. Dante® audio management requires the use of 3rd party software, such as Dante® Controller from Audinate.
- Features
- HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter)
- HDCP 1.x and 2.2 compliant
- 4 HDMI inputs and 2 HDMI outputs
- 4×2 matrix routing with per-output analog audio extraction
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Support pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream
- Each output’s audio is selectable between the routed HDMI source or an independent Dante network audio source
- Compatible with existing Dante and AES67 audio networks for transmission and reception of uncompressed audio with near-zero latency
- Simple and easy network audio routing via 3rd party control software (available for both Windows and macOS systems)
- Per-input EDID management with internal or external EDID options

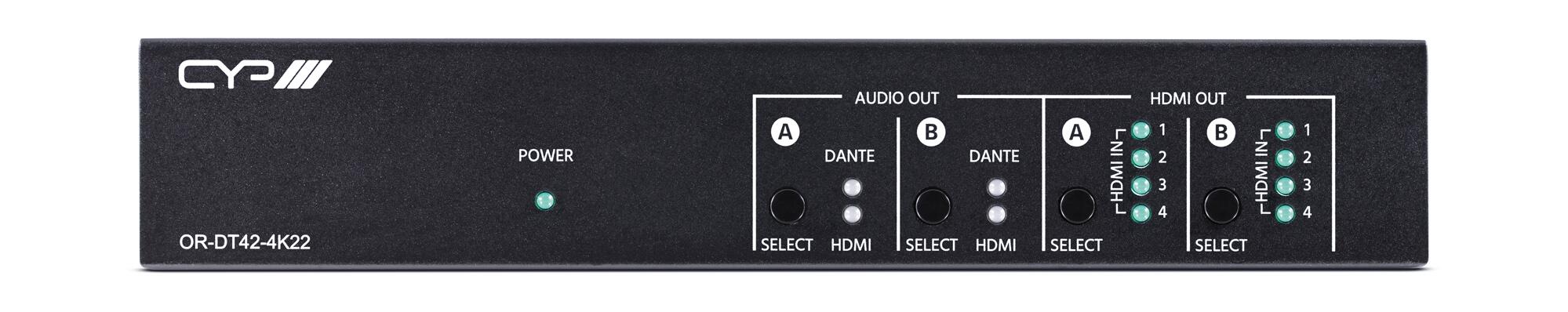

- Controllable via front panel buttons, WebGUI, Telnet, and RS-232
- Specification

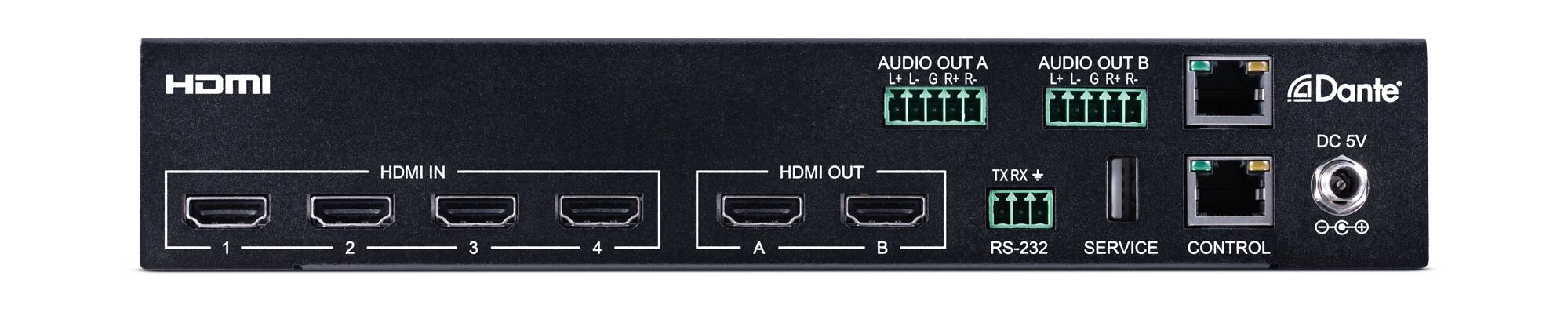

Inputs 4x HDMI [4x HDMI Uncompressed AV and Data]
1x Phoenix (3 pin) [1x RS-232]
1x RJ45 [1x Dante I/O port Propriety Data]
1x RJ45 [1x IP Control]
1x USB Type A [1x Service Port Propriety Data]Outputs 2x HDMI [2x HDMI Uncompressed AV and Data]
2x Phoenix (5 pin) [2x Analogue Stereo (Balanced or Unbalanced)]PSU: 5V/2.6A Dimensions 240mm [W] x 104mm [D] x 43mm [H] Net Weight 810g Gross Weight 1230g - Downloads
OR-DT42-4K22 Data Sheet OR-DT42-4K22 Manual
