IP-9000TX - 1G 4K60 AV over IP Transmitter with USB & PoE
IP-9000TX - 1G 4K60 AV over IP Transmitter with USB & PoE
The IP-9000TX 1G AV over IP encoder with full 4K HDR and Dolby Vision support is the latest advancement in AV over IP technology. Supporting both Unicast and Multicast modes, enabling AV signals distribution with video wall modes and USB functionality in Multicast mode. It supports the transmission of Ultra High-Definition signals (up to 4K@60Hz 4:4:4 plus 4K HDR and Dolby Vision) with audio, IR, RS-232 and USB 2.0 up to 100m on a single cable. The USB connectivity allows for the connection of USB flash drives, webcams, keyboard, and mouse etc. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

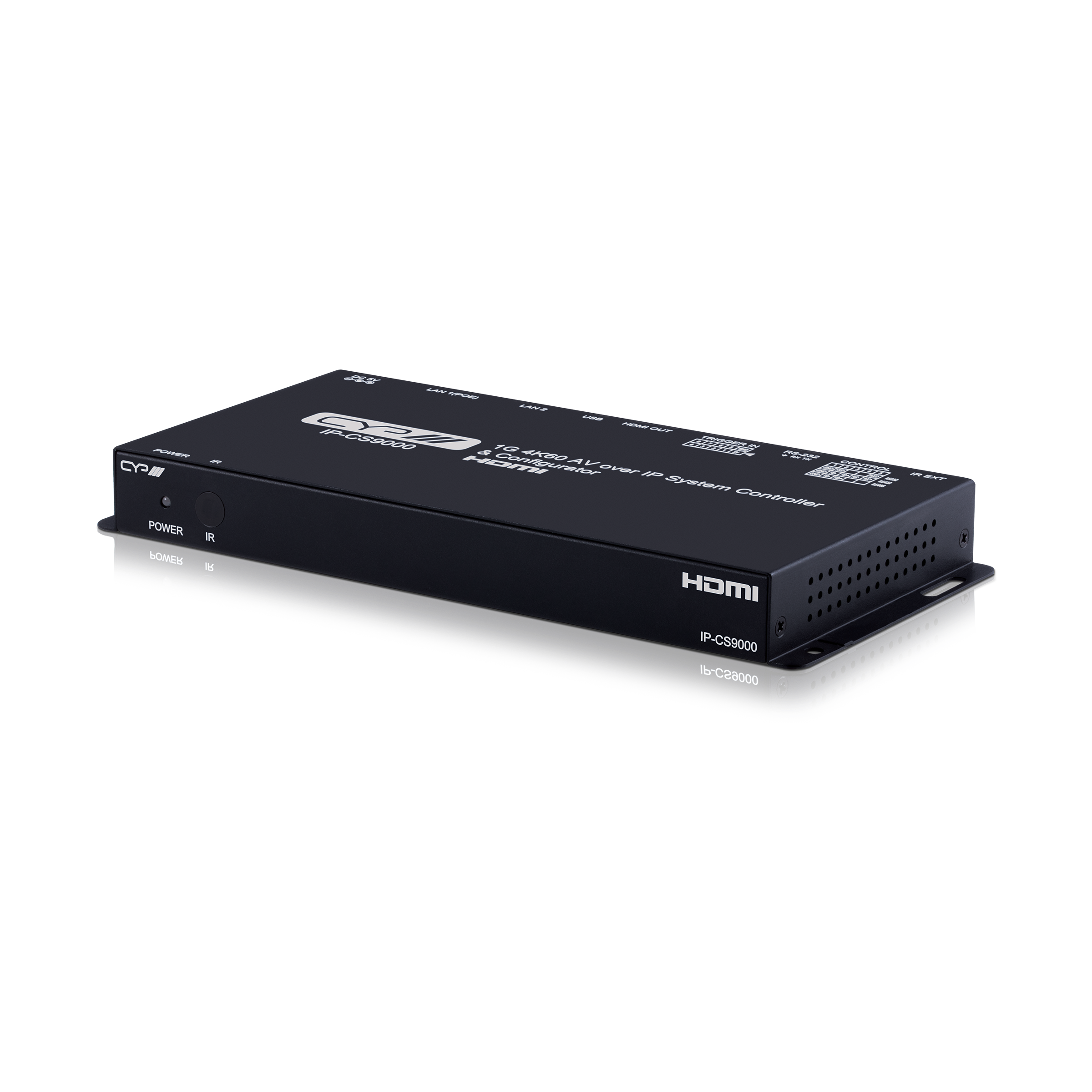

When the extension system’s units are in multicast mode, a single transmitter’s AV signal can be sent to a large number of receivers within the same local network without the additional receivers causing any bandwidth requirement increase. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. When combined with the optional IP Master Controller (IP-CS9000) the functionality of the system expands exponentially. Its centralised web-based interface greatly simplifies control and management of large, distributed video matrix or video wall systems adding to their flexibility in large residential or commercial installations.

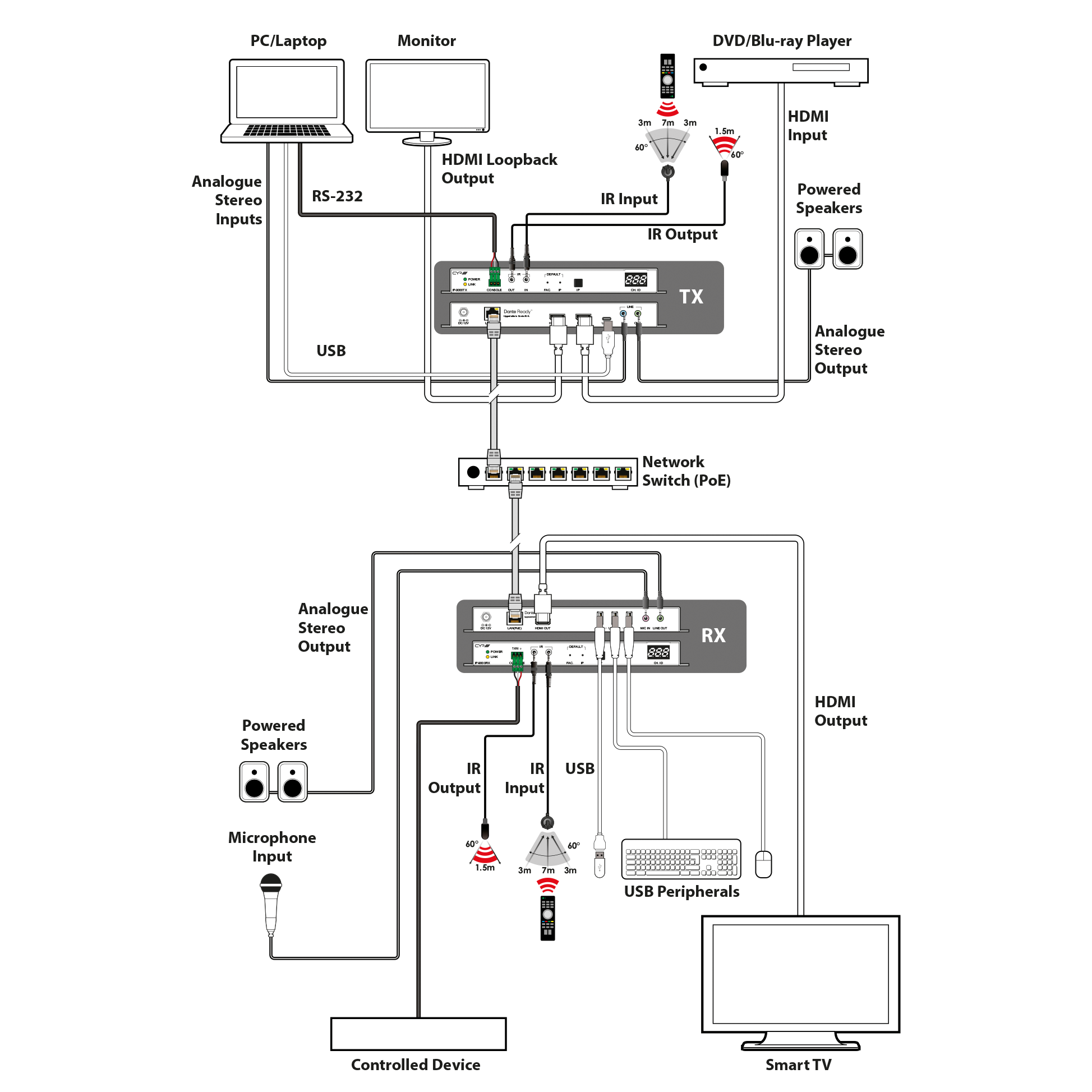

This system also features bi-directional IR and RS-232 pass-through, analogue line level in/out, and a microphone input (on the receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the HDMI input/output feature, provides a flexible remote platform for the seamless control of multiple PC systems. Configuration information is provided via On Screen Display (OSD) and the encoder own webgui plus using the IP-CS9000 IP Master Controller, and direct Telnet commands.
The IP-9000TX is Dante Ready which can transmit Dante data upon activation and is compatible with any standard Dante audio transmitters/receivers that the audio might be routed to. Dante Ready provides a flexible way to enable and expand the connectivity and interoperability of the world’s de-facto AV-over-IP solution, even after the initial purchase. Upgrade your system with Dante and connect to over 4,000 products from 500 manufacturers. Dante Ready is built within the widely used Dante Controller application for Dante audio and video subscription management. Transactions are simple and secure, and device upgrades are seamlessly actioned without the need to enter complex license keys of copy license files.
- Features
- 4K@60 1Gbps AV over IP transmitter in Unicast or Multicast mode
- Full 4K60 4:4:4, HDR10, HDR10+, Dolby Vision & HLG compatible
- IP interface: RJ45 CAT cable
- Supports USB over IP (flash drive, USB web cam (isochronous/Bulk), keyboard and mouse) and seamless control of multiple PC systems
- Supports PoE-PD (IEEE 802.3af)
- Bi-directional IR and RS-232 pass-through
- Controlled via WebGUI, IP Master Controller, and Telnet
- 1×HDMI input, 1×HDMI loopback output
- Supports the use of an external control system (IP Master Controller) to provide expanded functionality (Contact your authorised dealer for more information)
- Supports independent breakaway A/V and control matrix routing
- Supports extension of many audio formats including 8 channel LPCM and standard Bitstream
- The analogue Line In is automatically embedded in the streaming output and can be independently routed to any receiver
- Dante Ready brings Dante functionality to products already shipping and installed in sites
- Channels and features can be added as an installation grows
- Specification
Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB-C [1x USB Proprietary data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]Outputs 1x HDMI [1x HDMI bypass Uncompressed AV and Data]
1x RJ45 [1x AV over IP HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x Phoenix (3 pin) [1x RS-232]POE PSU: PoE PSU: 12V/12.5A Dimensions 231mm [W] x 117mm [D] x 25mm [H] Net Weight 660g Gross Weight 940g - Downloads
IP-9000TX Manual
