OR-442USB – 4×4+2 USB3.2 Data Matrix Switch
OR-442USB – 4×4+2 USB3.2 Data Matrix Switch

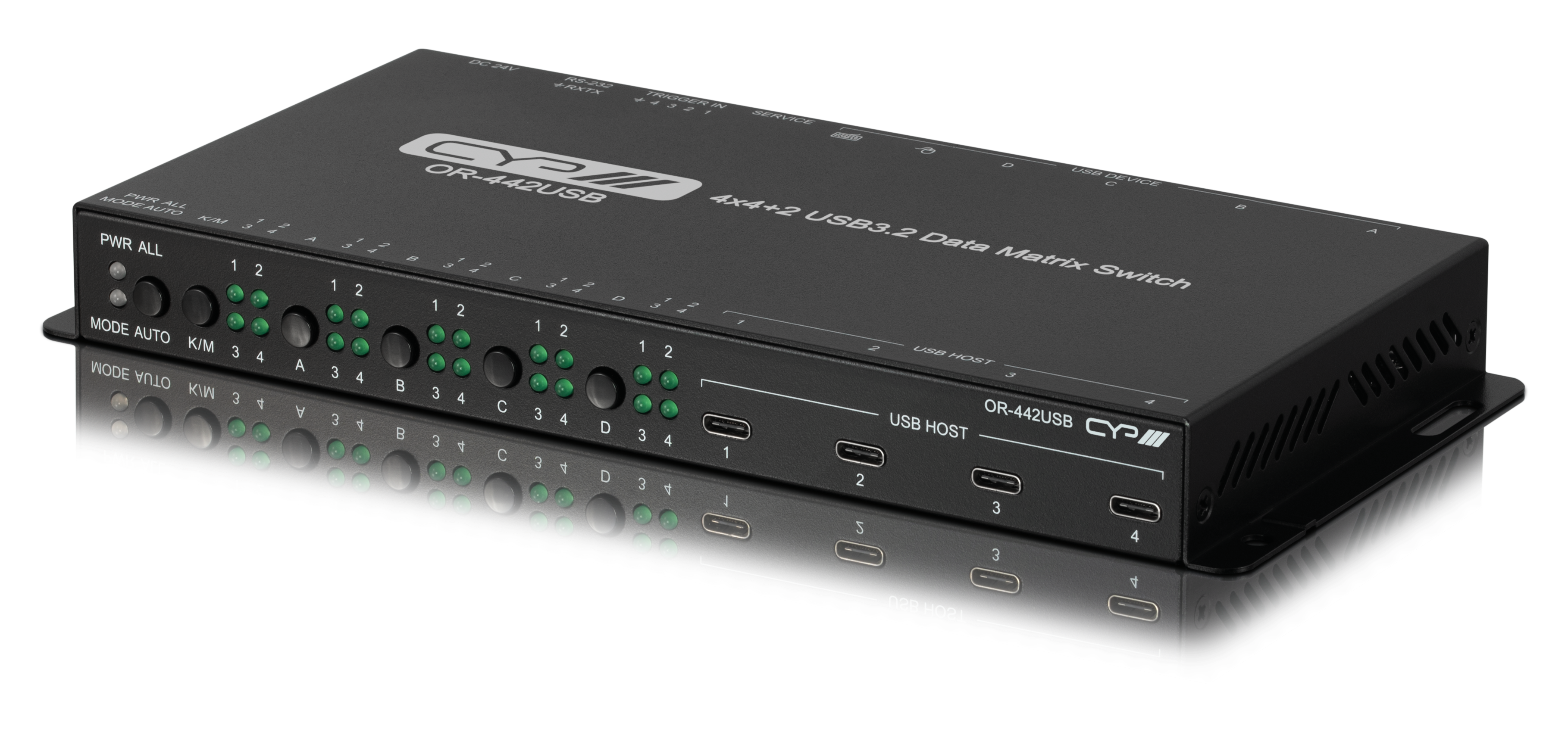

This OR-442USB is a 3.2 Gen 2 4×4 Matrix Switch that provides a simple and efficient solution for plug-and-play, point-to-point, and sharing USB devices. With the ability to connect 4 USB 3.2 Gen 2 devices with support for up to 10Gbps transfer rates, and 2 dedicated USB 2.0 device ports for keyboard and mouse connections.

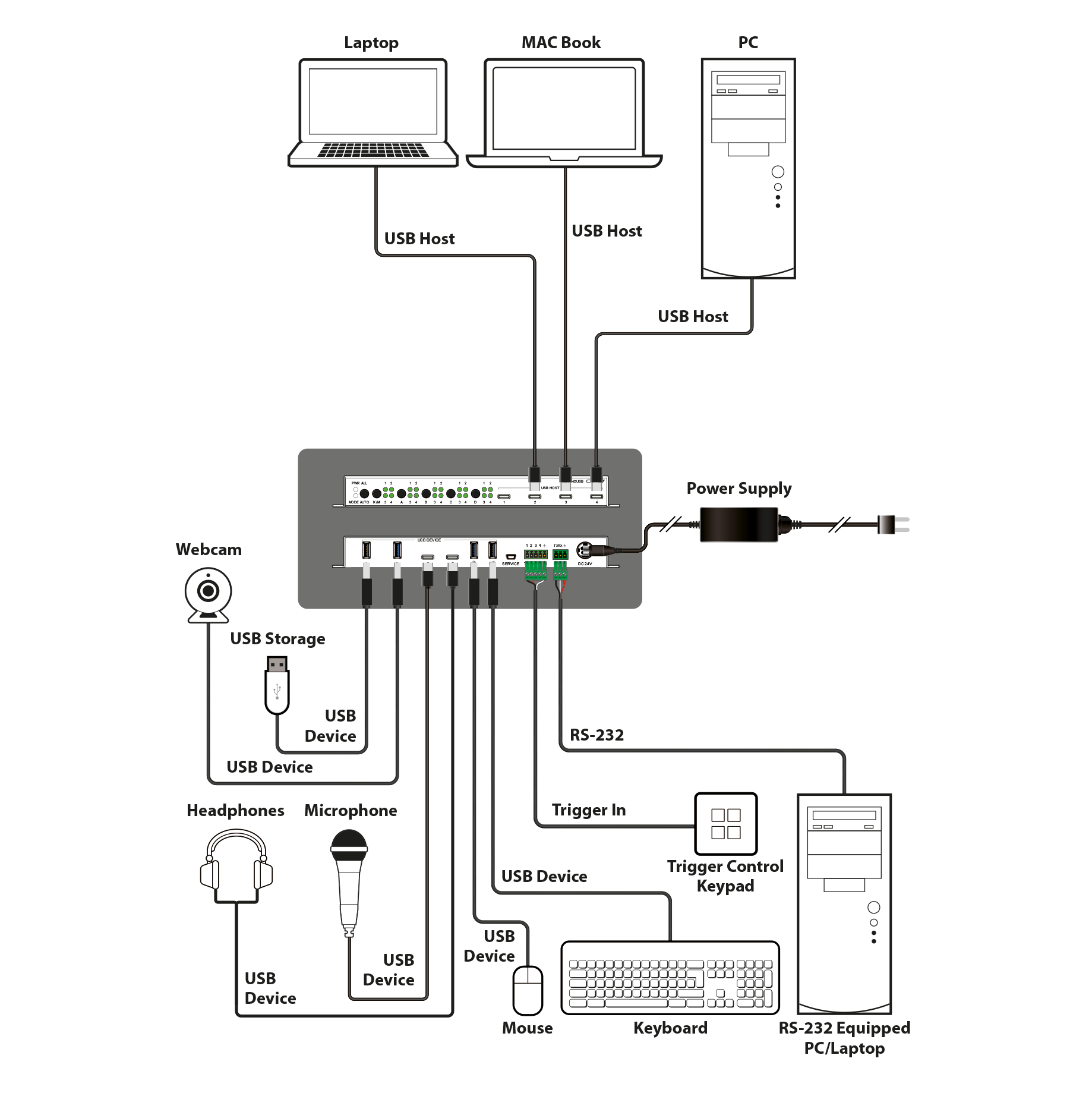

The 4 USB Type-C hosts and 6 USB devices support fully matrixed switching. The location of the USB host device is automatically set by hot plug detection, but can also be manually controlled using front panel buttons, triggers and RS-232 commands.
This flexible USB connectivity makes the switch ideal for frequent data transfer and device management across informational, industrial, educational, and commercial applications.
- Features

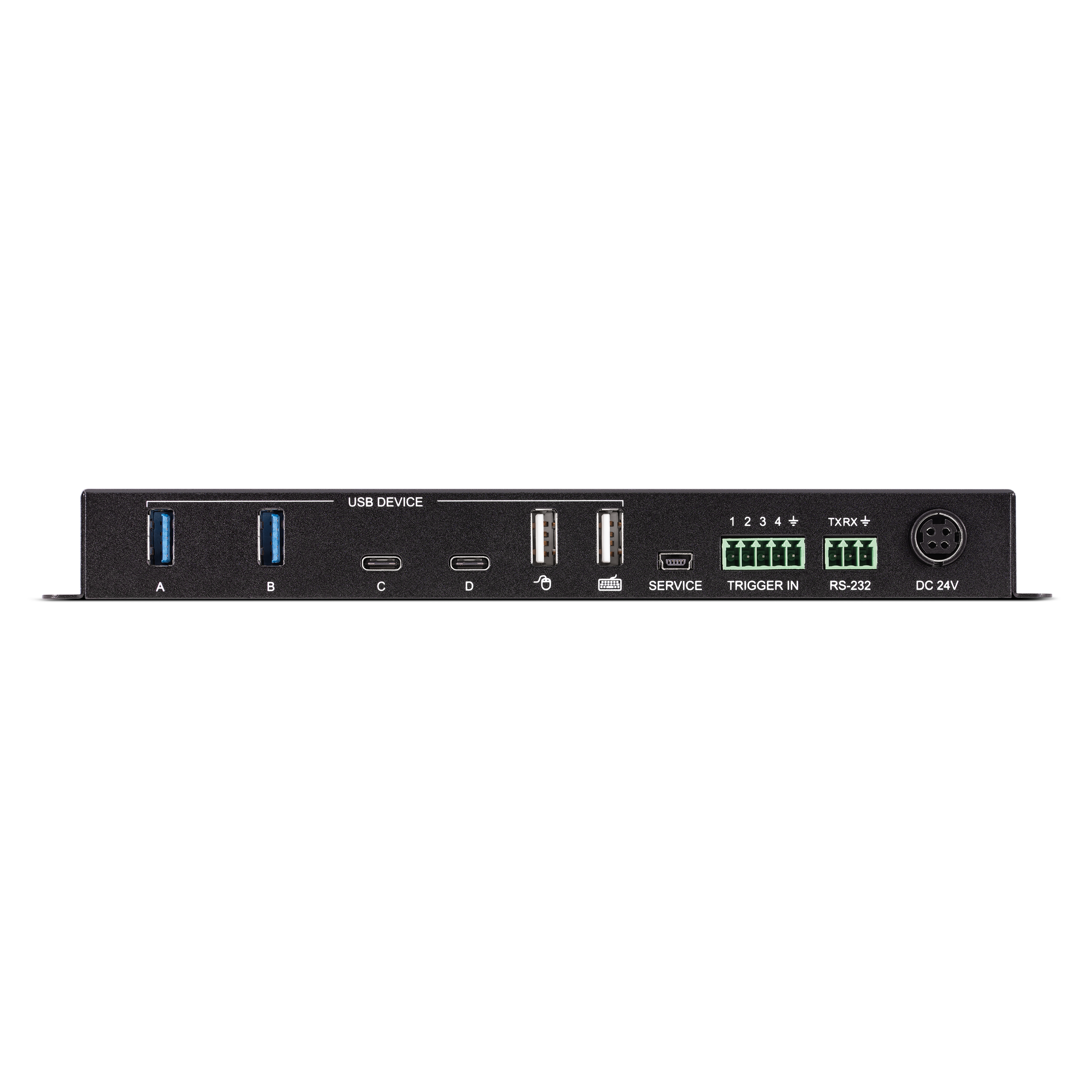

- 4 USB 3.2 USB-C hosts ,4 USB 3.2 device ports and 2 USB 2.0 device ports
- Supplies up to 900mA/5V to 4 USB 3.2 device ports (A~D) and 500mA/5V USB 2.0 device ports (K/M)
- Controllable via front-panel buttons, RS-232, and triggers
- Supports wide USB peripherals with plug-and-play:
- USB 3.2 Gen 2: 2 USB-A and 2 USB-C ports, up to 10Gbps
- USB 2.0: 2 USB-A ports for keyboard and mouse
- USB host selection is controllable via front panel buttons or auto connect detection
- Supports three different modes: All mode/ Auto mode/ Matrix mode
All Mode: Simultaneously assigns all devices to a single host
Auto Mode: Automatically assigns all devices to the host when connected
Matrix Mode: Freely assigns one or more devices to any host
- Specification
USB Host 4×USB 3.2 Gen2 (Type-C)
USB Device 2×USB 3.2 Gen2 (Type-A)
2×USB 3.2 Gen2 (Type-C)
2×USB 2.0 (Type-A)
PSU 24V/2.7A Dimensions 231.5mm [W] x 25mm [H] x 112.7mm [D] Net Weight 625g Gross Weight TBC - Downloads
OR-442USB Manual OR-442USB Datasheet
