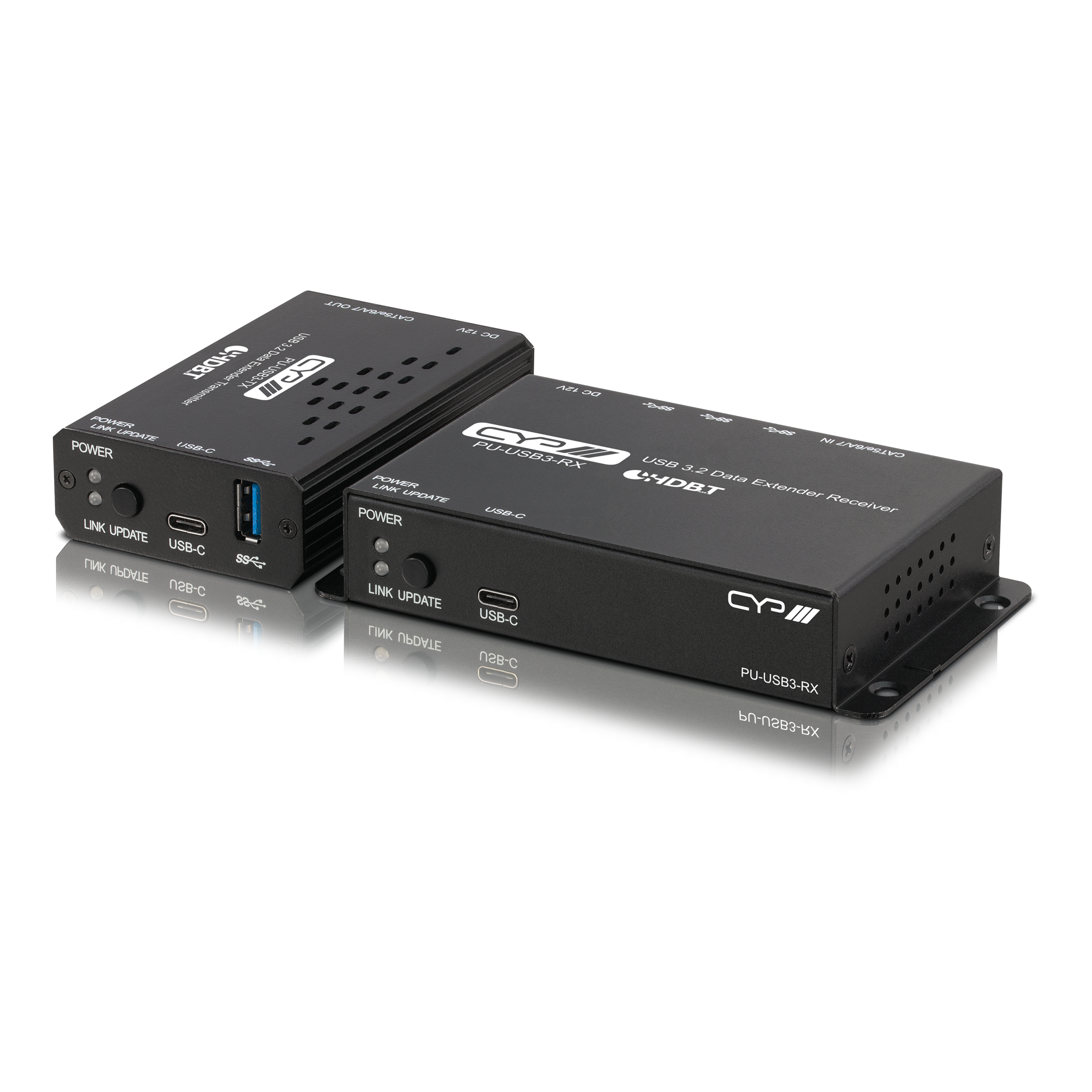

PU-USB3-KIT – USB 3.2 Data Extender Kit
PU-USB3-KIT – USB 3.2 Data Extender Kit
The PU-USB3-KIT is a USB 3.2 Gen1 extender set designed to extend signal from one USB host to multiple USB devices for up to 100 meters (328 feet).

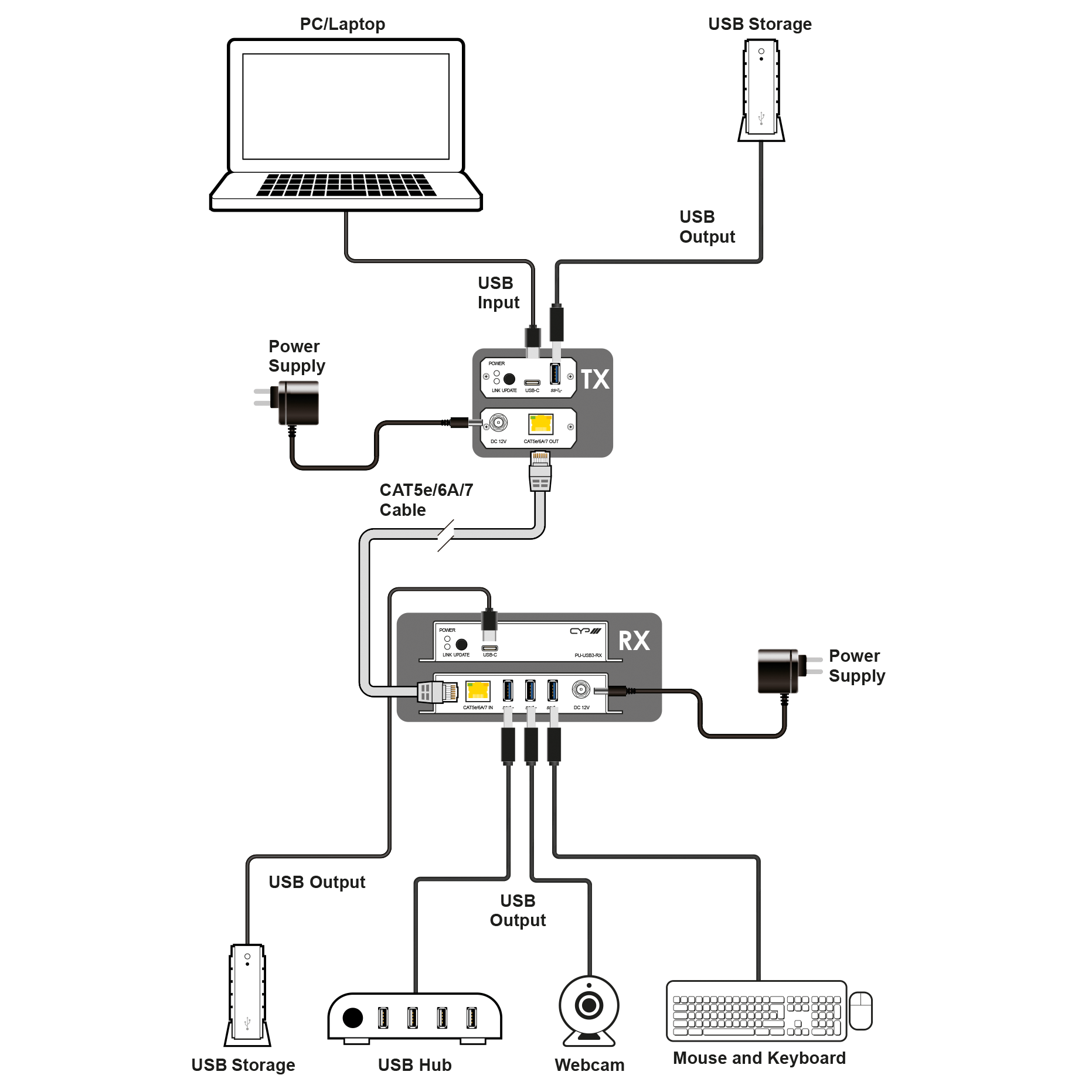

This transmitter enables the extension from the USB-C host to a local USB device and across CAT cabling to the USB devices on the receiver. The transmitter can be powered by a connected host device such as a computer or laptop, without the need for an external power adaptor. Type-A port can provide up to 5V/900mA (4.5W) power when unit is active.
The receiver enables users to extend up to 4 USB 3.2 devices remotely, such as flash drives, keyboards and USB cameras. With an adapter, USB-C port supports 5V/3A power and USB-A ports provides 5V/0.9A power to USB devices. The KIT also supports a hotkey for convenient firmware update (from the transmitter side for both TX and RX).
- Features
- Support USB 3.2 Gen1 with 1 USB-C host port and 1 USB-A device port
- Support Point-to-Point transmission via CAT cabling
- Transmission up to 100 meters (328 feet)
- The transmitter can be powered by a connected host such as a computer or laptop
- The host can control multiple USB devices on transmitter side and receiver side
- Firmware update with hotkey from the transmitter, enabling remote firmware updates to the receiver
- Backward compatible with USB 2.0
- Receiver supports 4 USB 3.2 Gen1 device ports
- Specification

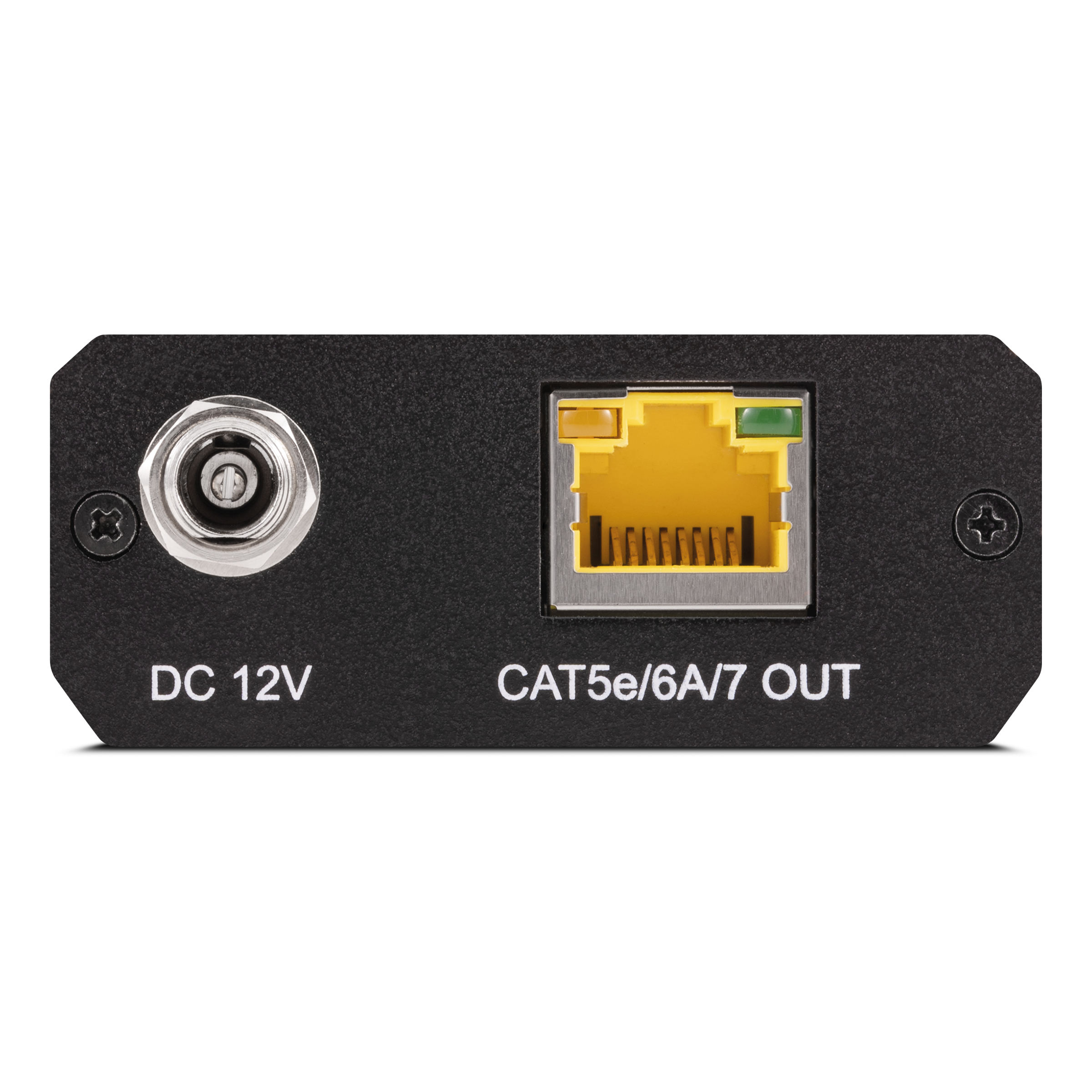

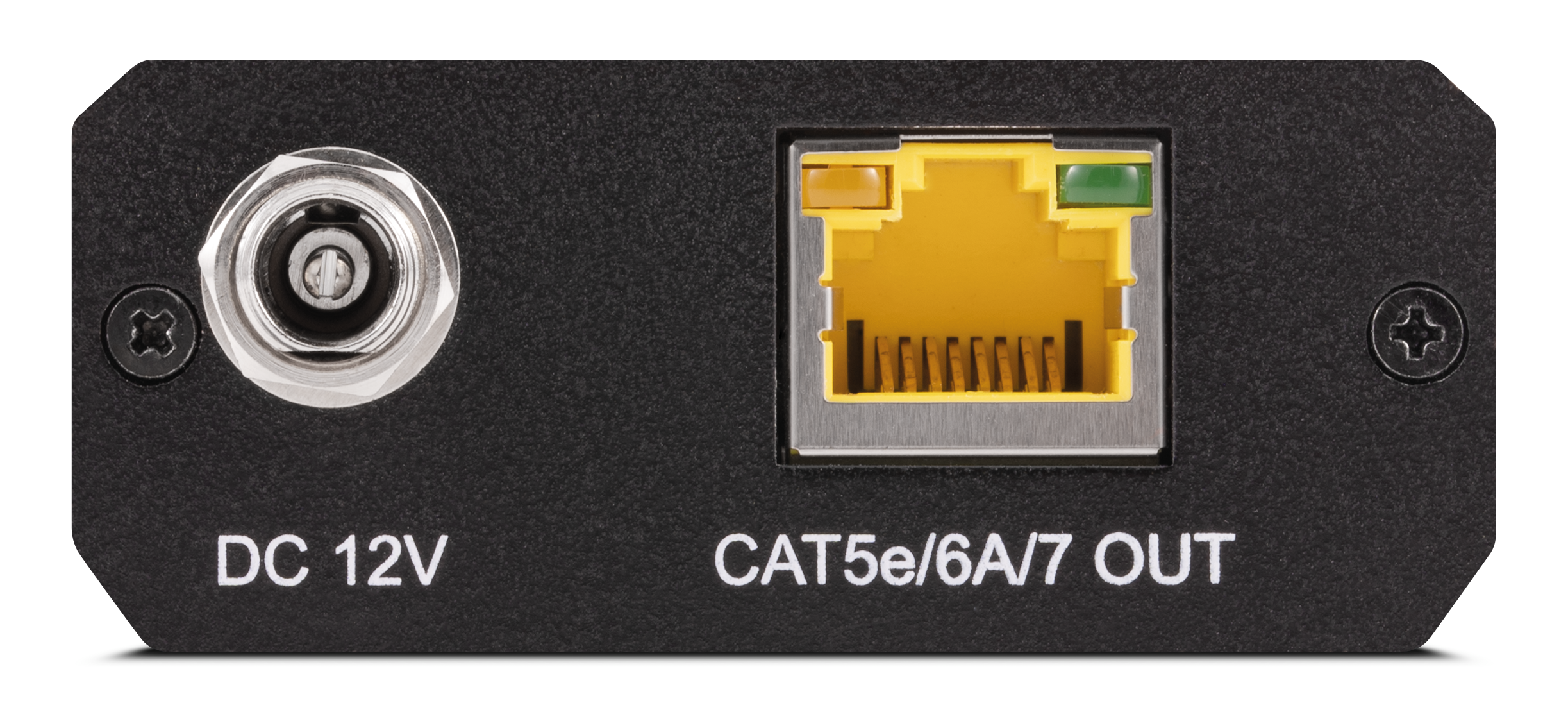

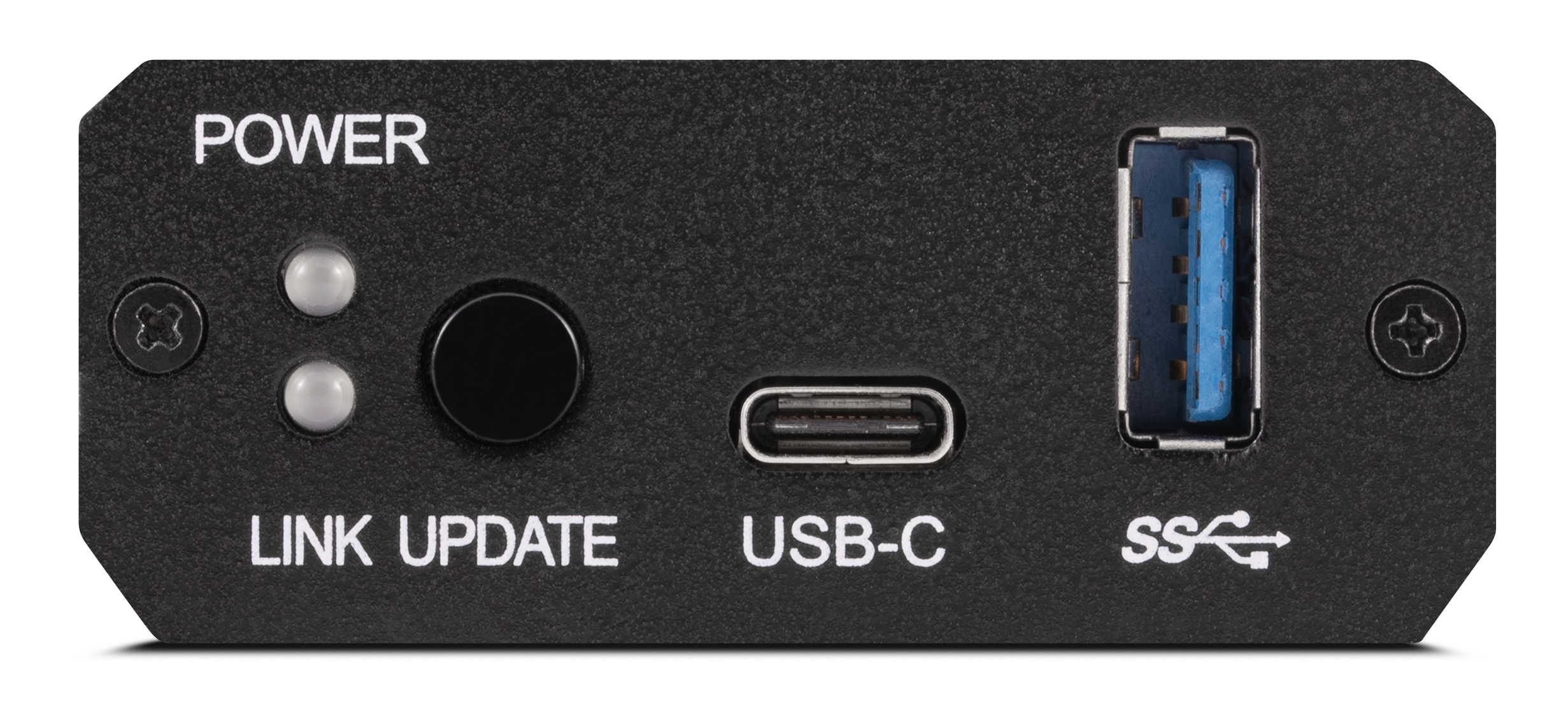

TX Inputs 1x USB-C [USB-C Host Port Proprietary data] Outputs 1x RJ45 [USB Data Extension Propriety Data]

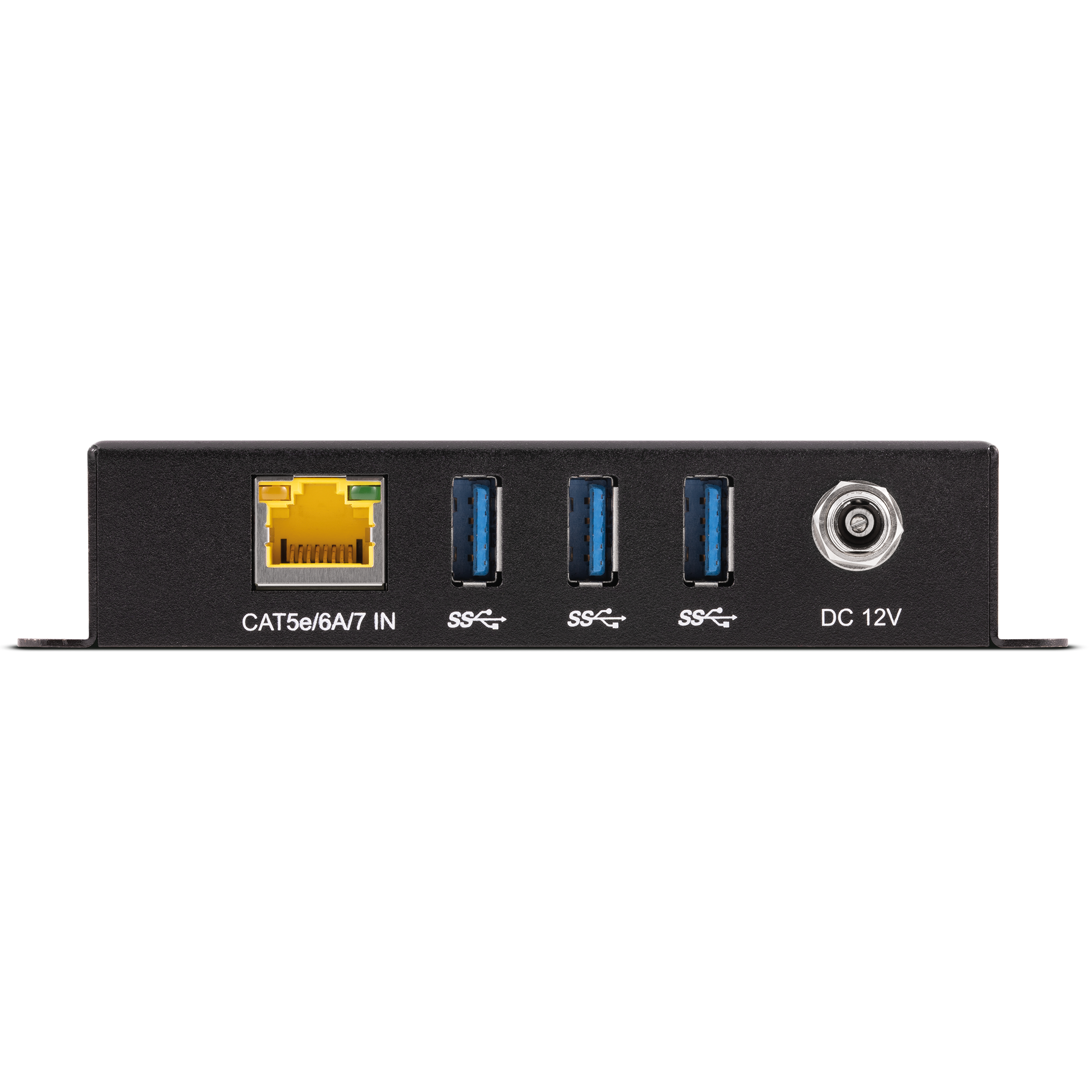

1x USB Type A [USB Device Port Propriety Data]PSU 12V/3A, USB powered Dimensions 60mm [W] x 25mm [H] x 95mm [D] Net Weight 160g RX Inputs 1x RJ45 [USB Data Extension Propriety Data] Outputs 3x USB Type A [USB Device Port Propriety Data]

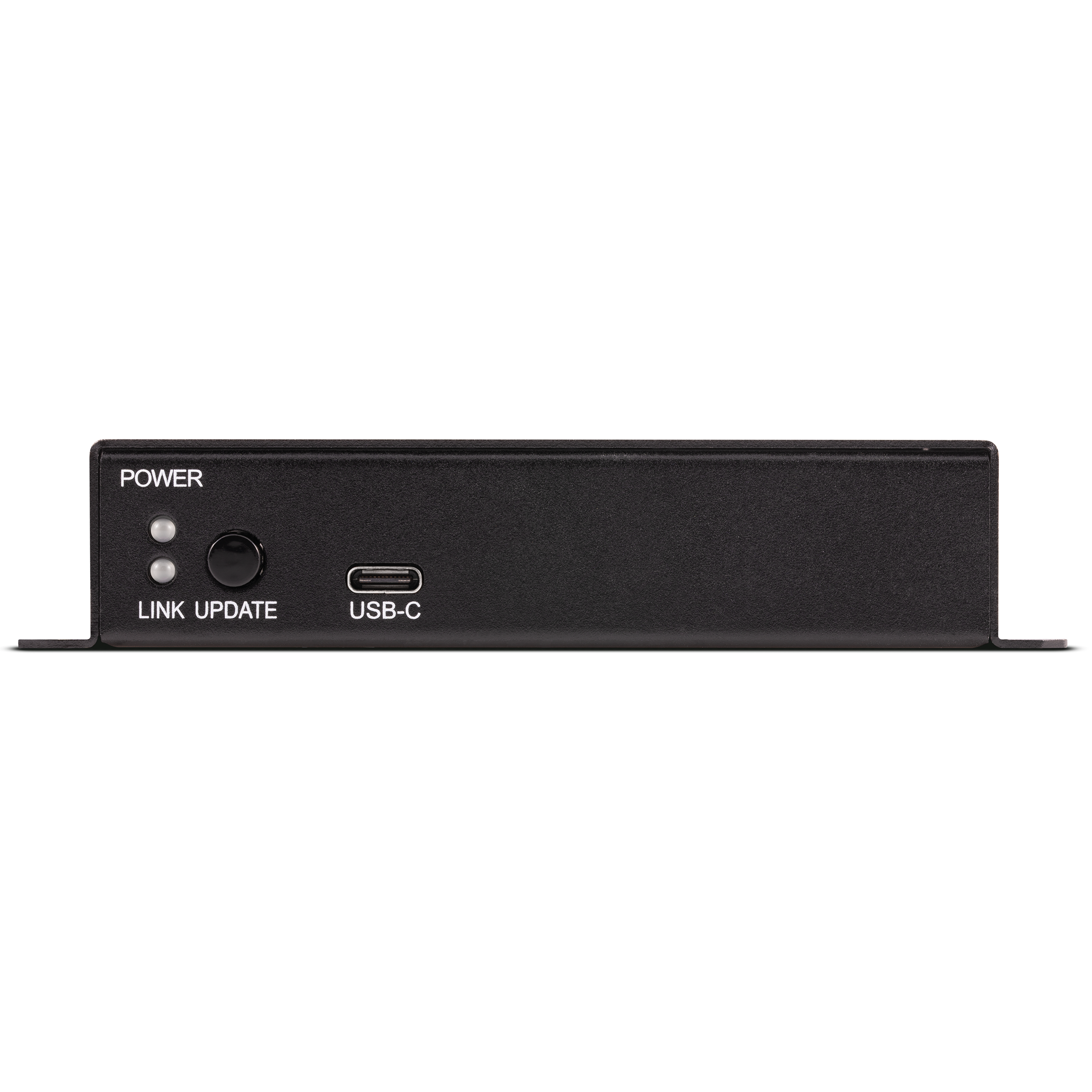

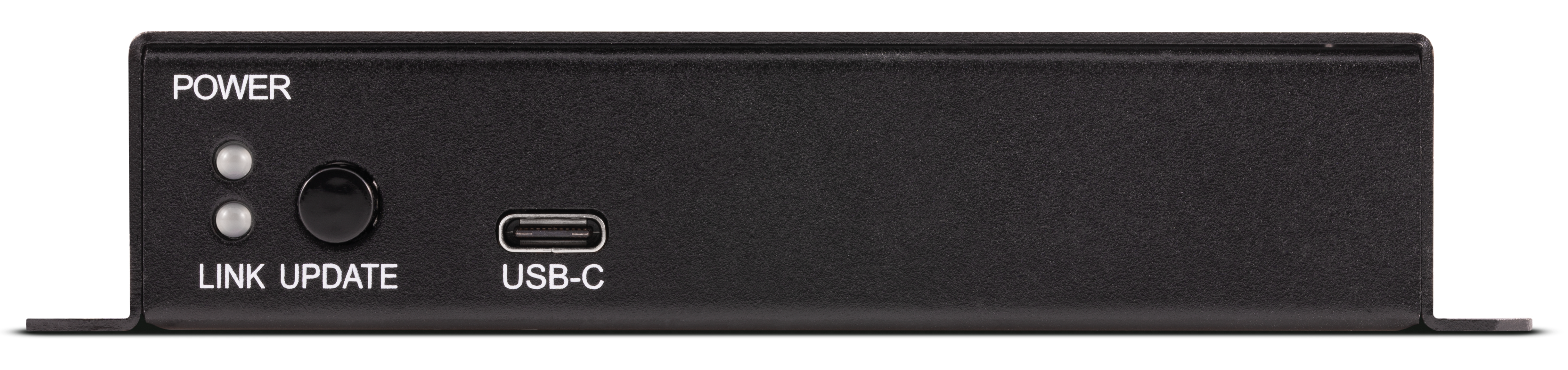

1x USB-C [USB-C Device Port Proprietary data]PSU 12V/3A Dimensions 128mm [W] x 25mm [H] x 75mm [D] Net Weight 280g Gross Weight 900g - Downloads
PU-USB3-KIT Manual
