The PUV-2200PL-KIT HDMI over single CAT5e/6/7 Transmitter and Receiver Kit can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 metres. This system also features analogue audio input/output and mic input for flexible audio options.
Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.
All the benefits of HDBaseT 2 but in a lite version, more cost effective at a shorter CAT cable distance.
- Features
- HDBaseT 2.0 compatible
- Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m
- Supports 16-bit Deep Colour up to 1080p@60Hz
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
- Specification

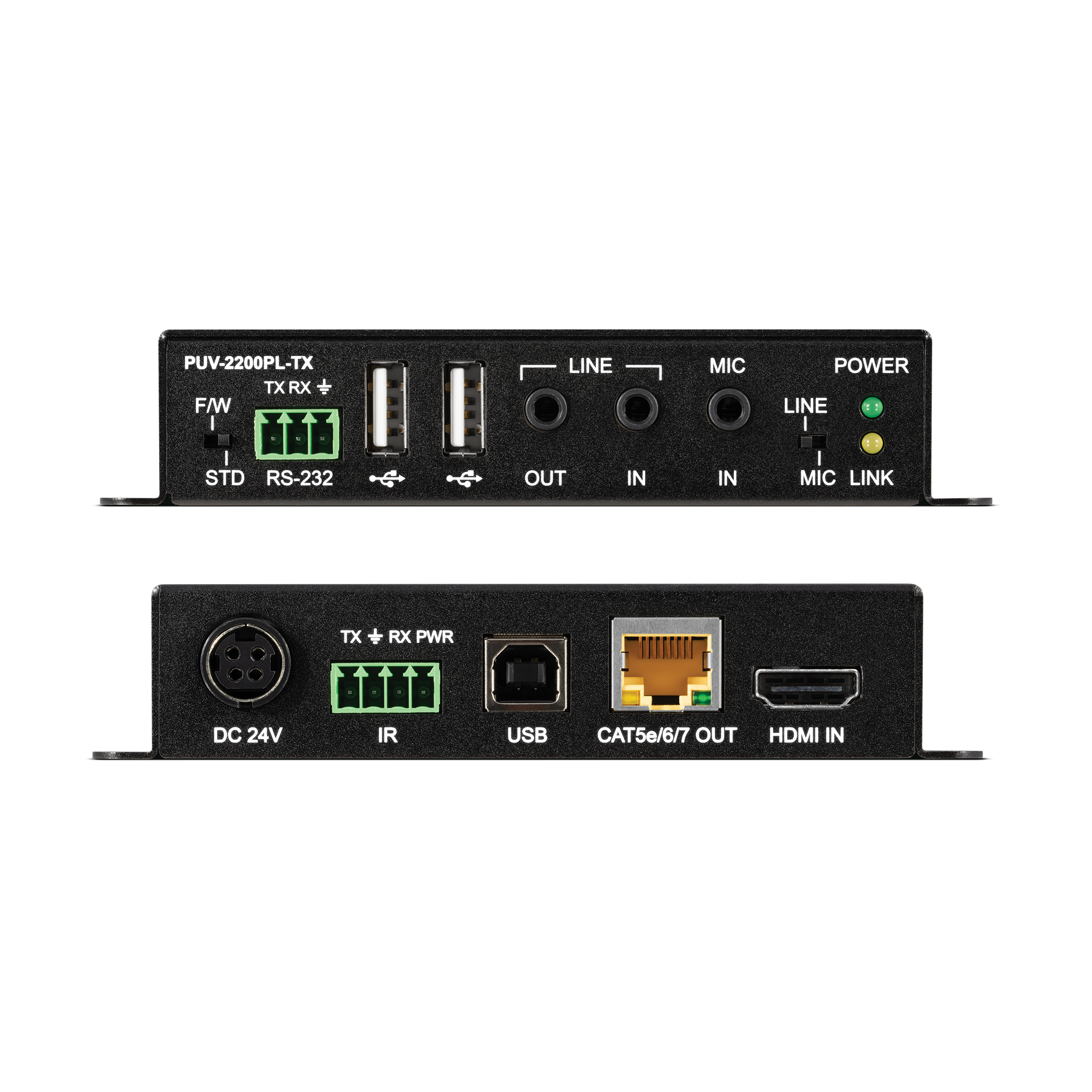

TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB 3 Type B [1x USB Power & Data]
1x Phoenix (4 pin) [1x Shared IR I/O]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Microphone]Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x Phoenix (3 pin) [1x RS-232]
2x USB Type A [2x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]PSU 24V/2.7A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 400g RX Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]

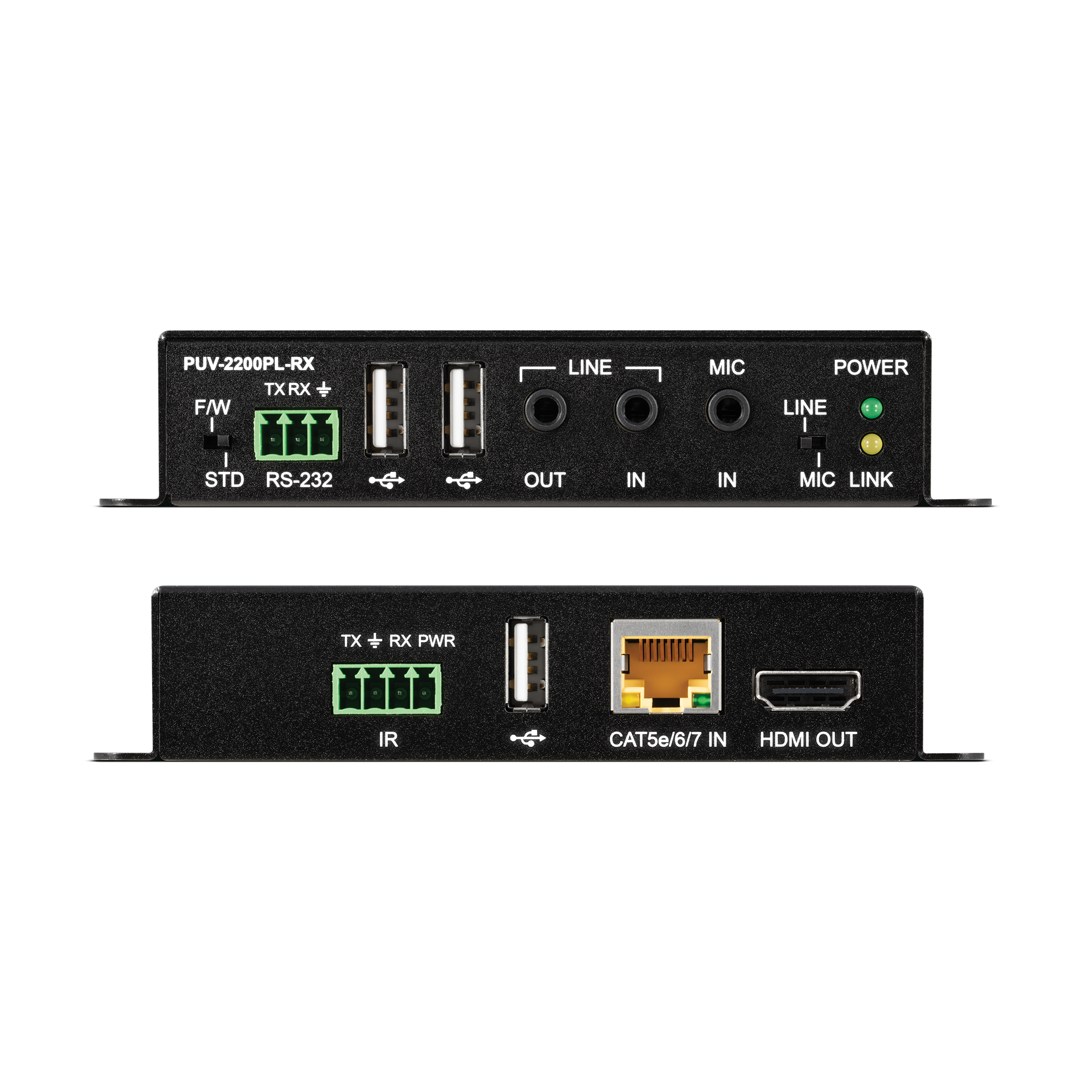

1x Phoenix (4 pin) [1x Shared IR I/O]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Microphone]Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x Phoenix (3 pin) [1x RS-232]
3x USB Type A [3x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]PSU PoH Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 400g Gross Weight 2.16kg - Downloads
