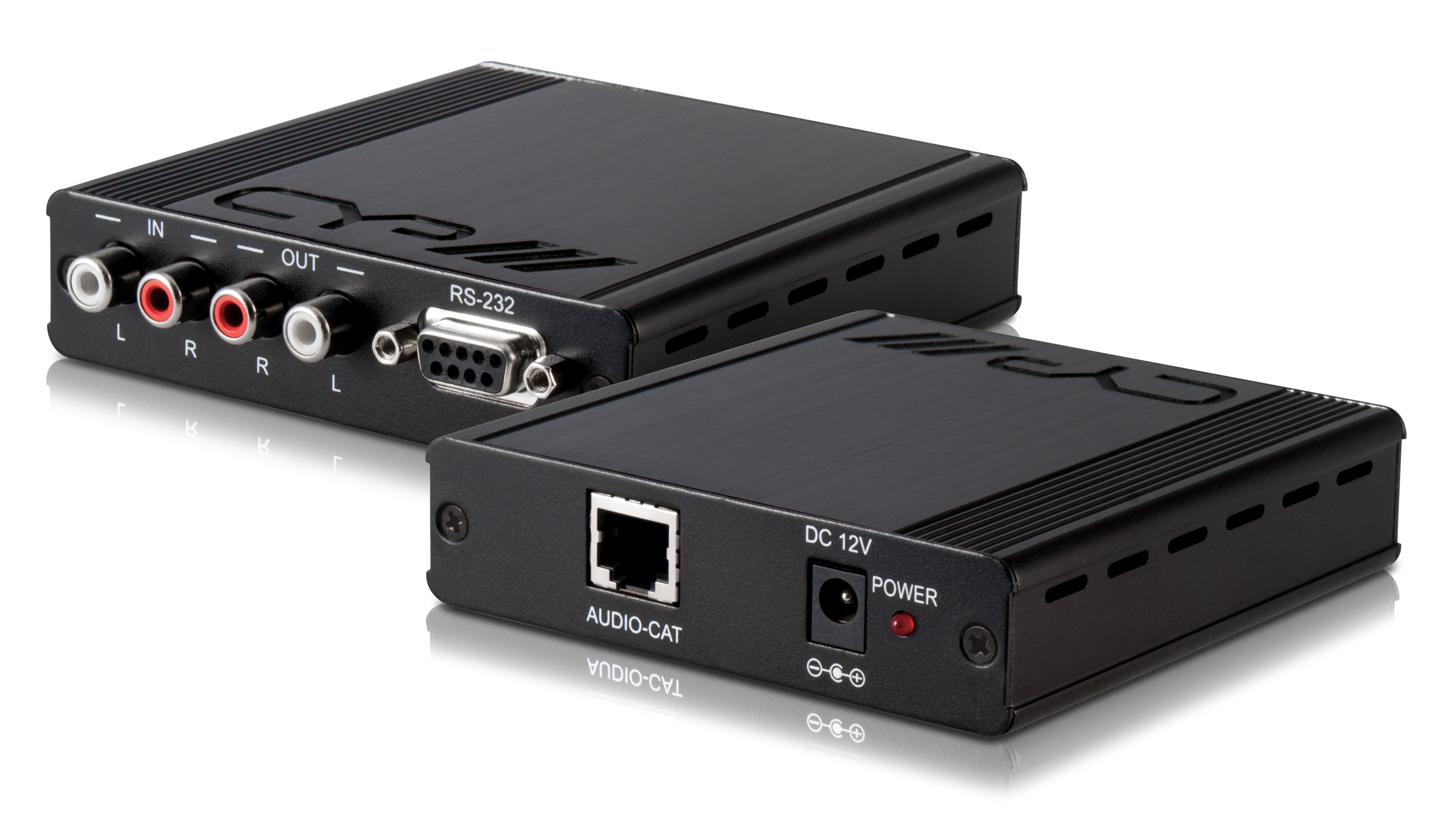

PU-305BDA-KIT – Bi-Directional Analogue Audio over Single CAT KIT
PU-305BDA-KIT – Bi-Directional Analogue Audio over Single CAT KIT

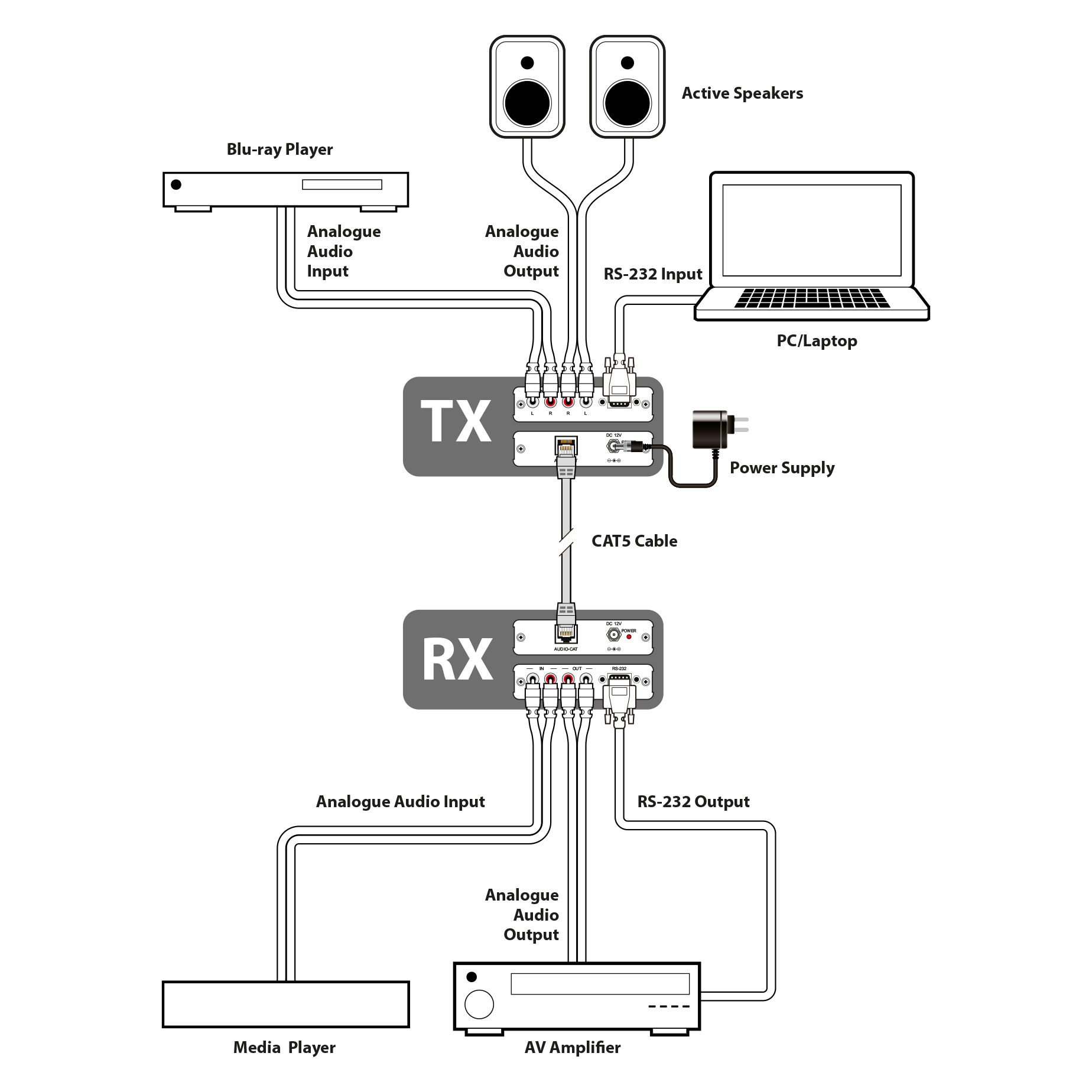

- Supports bi-directional transmission (in/out) of analogue audio and RS-232 pass-through
- Supports Power over CAT to either TX or RX
- Only one PSU is required and can be used at either the TX or RX
- Bi-directional RS-232 control
- Features
- Supports Coaxial or Optical digital audio SPDIF signals.
- Supports Stereo and Multichannel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus).
- Supports sample rate up to 96kHz.
- Dual transmission 1 x Coaxial and 1 x Optical
- Signals can be extended over single CAT5e/CAT6 up to 150m
- Specification

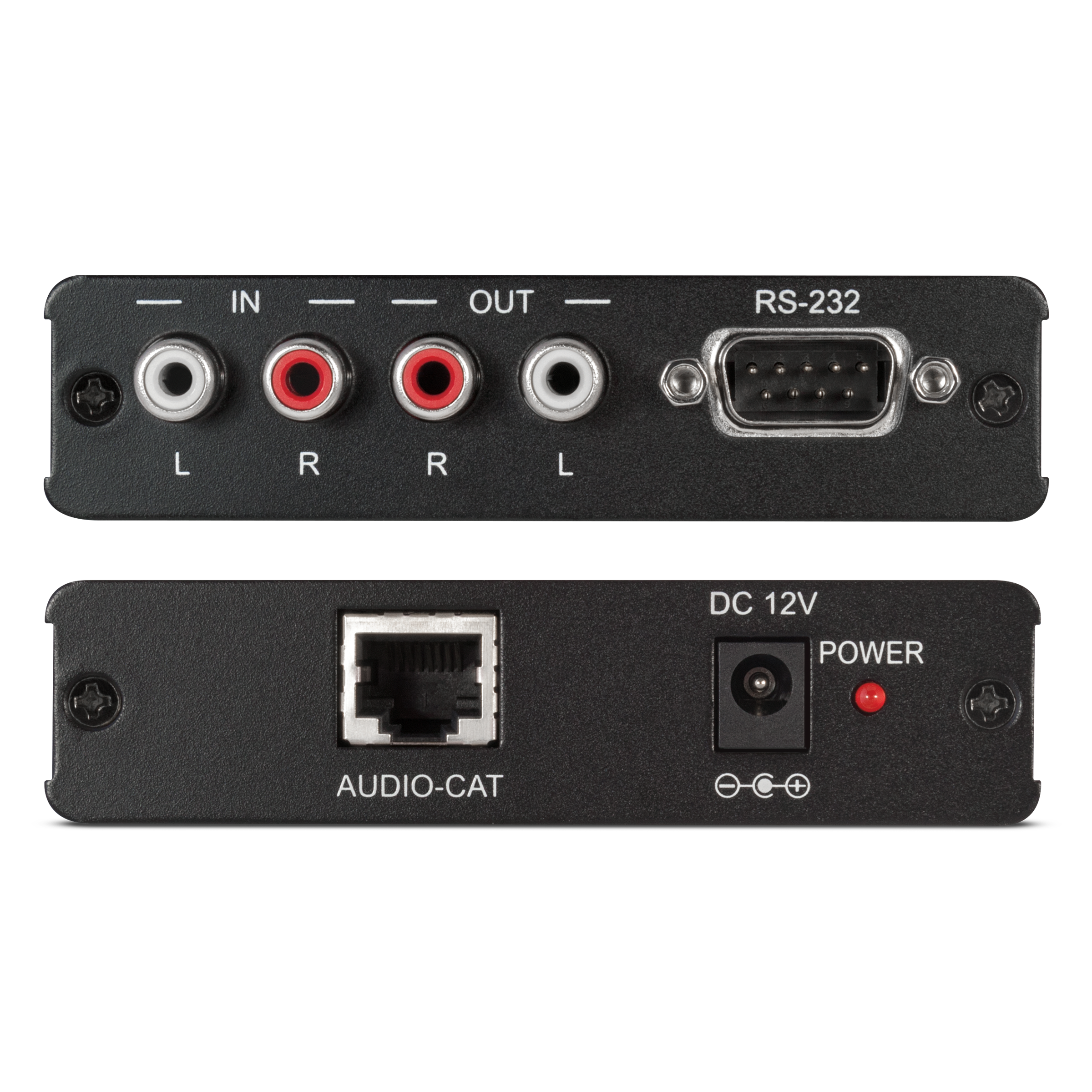

Inputs 2x RCA [1x TX Analogue Stereo (L/R)]
2x RCA [1x RX Analogue Stereo (L/R)]
1x 9pin Dsub [1x TX RS-232 Data]
1x RJ45 [1x RX Bi-directional Audio plus Propriety Data]
Outputs 2x RCA [1x TX Analogue Stereo (L/R)]
2x RCA [1x RX Analogue Stereo (L/R)]
1x 9pin Dsub [1x RX RS-232 Data]
1x RJ45 [1x TX Bi-directional Audio plus Propriety Data]
POE PSU PoC PSU 12V/1.25A,Bi-directional POE Dimensions 102mm [W] x 25mm [H] x 102mm [D]
Net Weight 480g Gross Weight 940g - Downloads
PU-305BDA-KIT Manual PU-305BDA-KIT Datasheet
