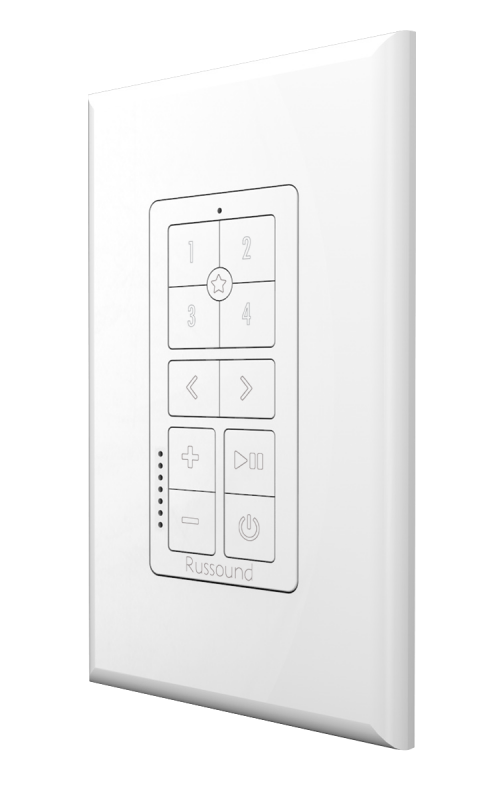

IPK-1 Single-Gang IP Keypad
IPK-1 Single-Gang IP Keypad
The IPK-1 is designed to provide easy access and convenient control to a room or zone using any of the following Russound audio systems: SMZ8, SMZ16-PRE, MCA-66, MCA-88, MBX-PRE, or MBX-AMP. While the Russound audio systems can be controlled by app, many users prefer having a dedicated keypad that is always available without having to pull out their phone, navigate to the Russound app, and then navigate to the room they want to control. The IPK-1 is designed to intuitively control your system without interfering with your lifestyle. For example, the volume LED’s only illuminate when the volume is adjusted. The status LED is designed to turn off when your audio system is not in use so that the LED will never light up a dark bedroom at night.
Two-way Feedback showing system status and volume level
Save and recall up to four room favourites for quick access to your favourite music
Single Wire Connection for both power and data (802.3af PoE)

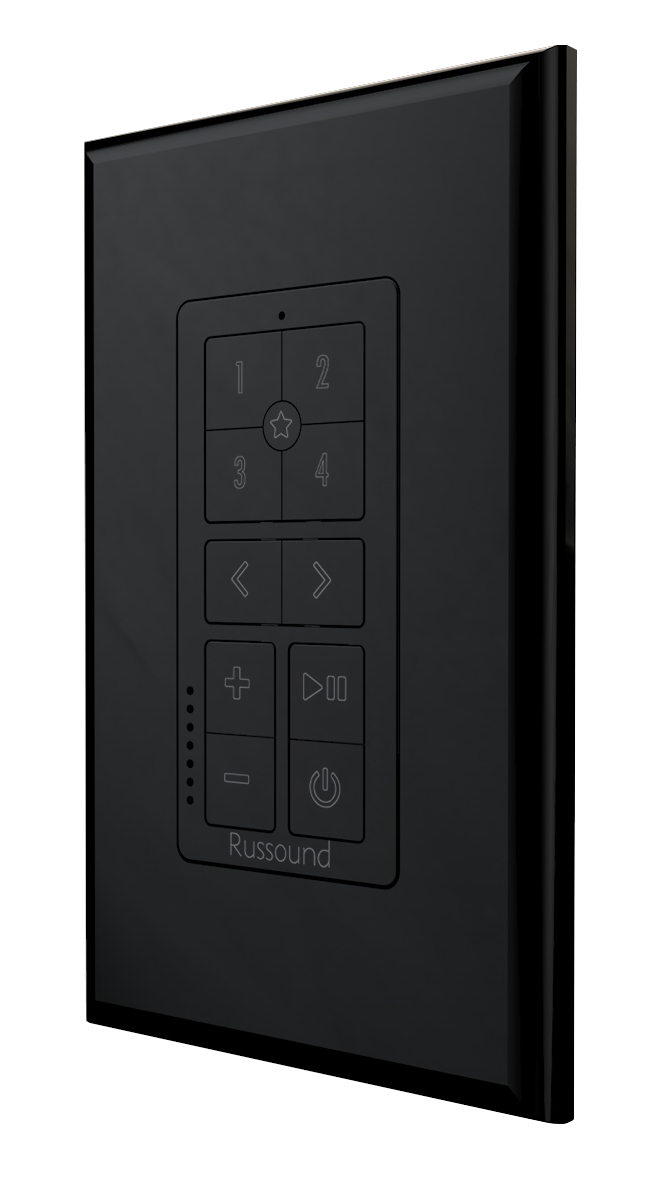

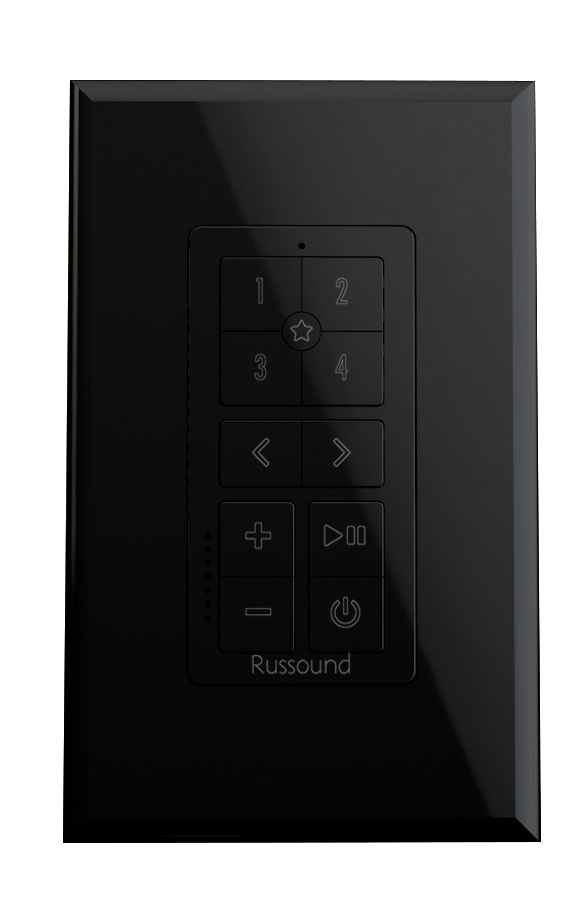

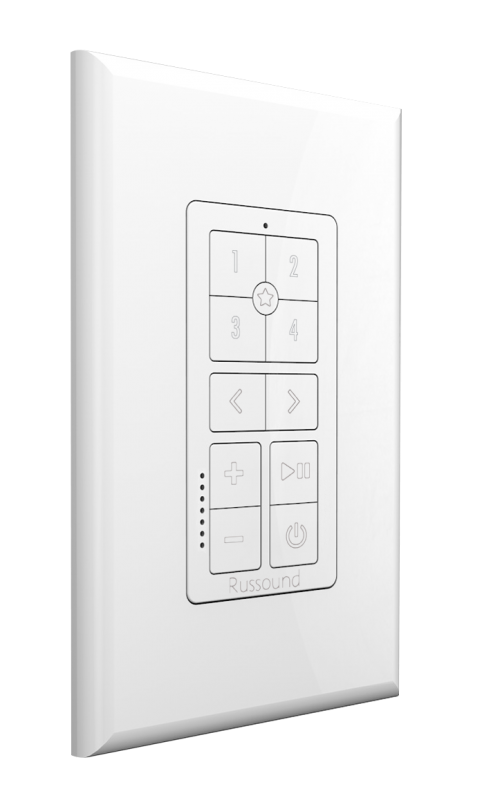

Two colour options included: White and Black
- Features
- Simple Configuration, No Programming Needed
- Controls a Russound Audio Zone
- Provides Easy to Use Interface for Audio Control and Favourites
- PoE Powered: 802.3af (Power supply not included)
- Works with: SMZ8, SMZ16-PRE, MCA-66, MCA-88, MBX-AMP, MBX-PRE
- Includes Black and White Decora Inserts. Decora wall-plate not included and must be purchased separately
- Requires a Wired Ethernet Connection
- Mounting Depth Behind Faceplate: 1-1/32”(26.2 mm)
- Specification
- Shipping Dimensions: 6.66" (W) x 2.95" (H) x 2.48" (D) / (16.9 x 7.5 x 6.3cm)
- Product Dimensions: 1.75" (W) x 4.19" (H) x 1.31" (D) / (4.4 x 10.6 x 3.3cm)
- Shipping Weight: 1 lb (0.45 kg)
- Connection: Requires a Wired Ethernet Connection
- Mounting Depth Behind Faceplate: 1-1/32”(26.2 mm)
- Power Requirement(s): PoE Powered: 802.3af (Power supply not included)
- Downloads
IPK-1 Manual IPK-1 Product Brief
