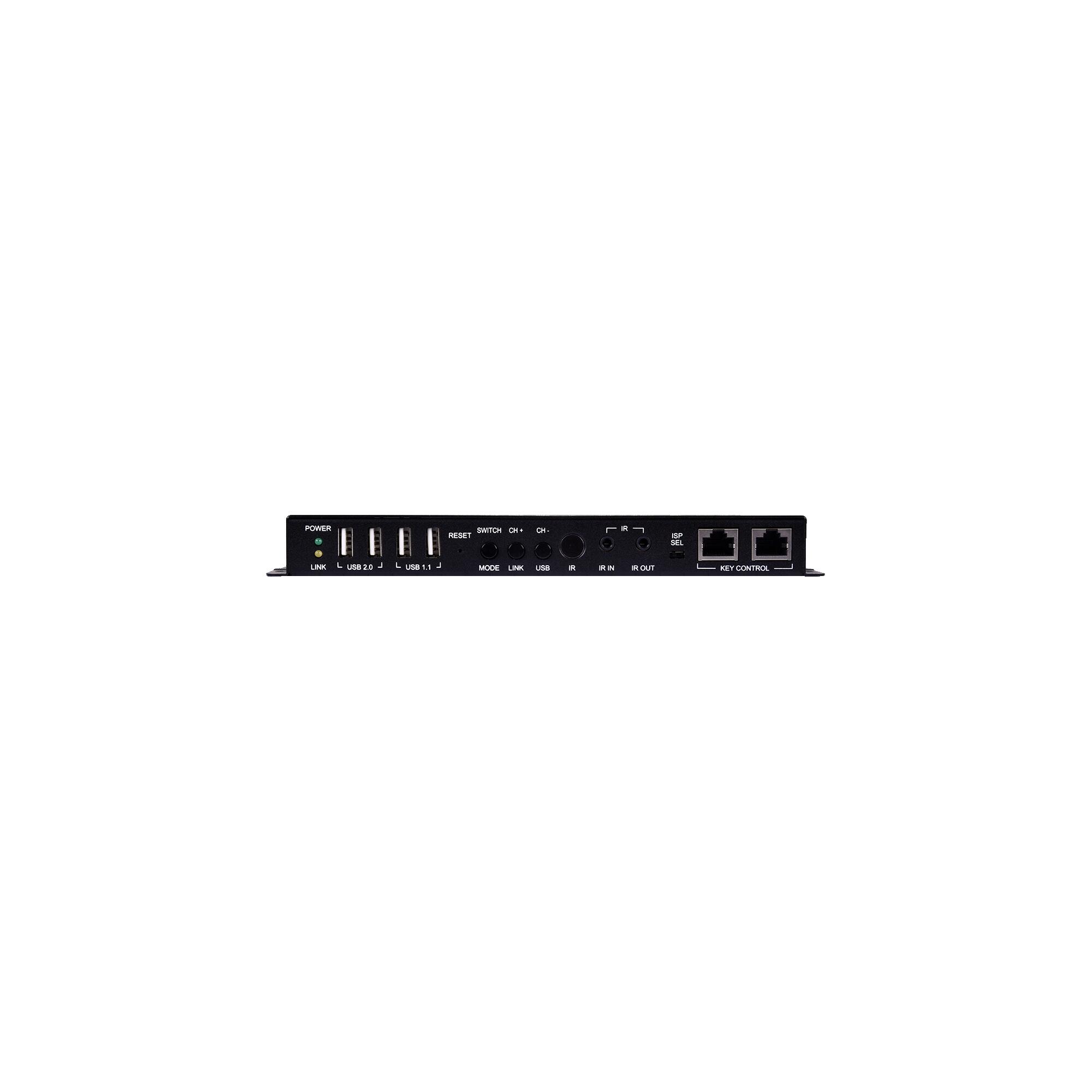

IP-7050RX-TG - AV over IP HDMI Receiver with Control Button Inputs (4K, HDCP2.2, PoE)
IP-7050RX-TG - AV over IP HDMI Receiver with Control Button Inputs (4K, HDCP2.2, PoE)
The IP-7050RX-TG is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
When the extension system's units are in multicast mode, a single transmitter’s AV signal can be sent to a large number of receivers within the same local network without the additional receivers causing the bandwidth requirements to increase. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. When combined with the optional IP Master Controller the functionality of the system expands exponentially. Its centralized web-based interface greatly simplifies control and management of large distributed video matrix or video wall systems adding to their flexibility in large home or commercial installations.
This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the VGA input/output feature, provides a flexible remote KVM platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, IP Master Controller, Telnet, Trigger Buttons, and front panel controls.
- Features
- HDMI 2.0 and DVI 1.0 compliant
- HDCP 1.4 & 2.2 compliant
- 1×HDMI output
- Video, audio and control reception over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes
- HDMI output resolutions up to 4K@30Hz (RGB, 8-bit)
- VGA input supports resolutions up to WUXGA (RB)
- Supports extension of many audio formats including 8 channel LPCM and standard Bitstream
- Supports independent breakaway A/V and control matrix routing
- Multi-monitor video wall support with 180° and 270° rotation options
- The Mic In sends audio directly to the analog Line Out on the currently routed transmitter
- May be powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
- Includes 3 LAN ports, allowing multiple receivers to be daisy chained without the need for an external Gigabit Ethernet switch
- Supports USB keyboard, mouse and storage extension
- Supports IR and RS-232 bypass
- Supports the use of 2 external Trigger Buttons to control streaming channel selection (Optional, not included)
- Supports the use of an external control center (IP Master Controller) to provide expanded functionality (Contact your authorized dealer for more information)
- Basic control via front panel buttons and external Trigger Buttons, or can be fully controlled via WebGUI, IP Master Controller, and Telnet
- Specification
Inputs 1x RJ45 [1x PoE HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Microphone]
1x Phoenix (3 pin) [1x RS-232]
2x RJ45 [2x Control Button ports Propriety Data]Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
2x RJ45 [2x Bypass AV over IP outputs HDMI & Propriety Data]
1x Toslink [1x DTS / Dolby Digital / 2 Channel LPCM / Dolby Digital Plus]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
6x USB Type A [6x USB Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]PSU: 5V/4A Dimensions 230mm [W] x 110mm [D] x 25mm [H] Net Weight 660g Gross Weight 960g
