120571C - Webro WEBNET Cat 6A 23AWG 4PAIR U/FTP LSNH 300m Reel
120571C - Webro WEBNET Cat 6A 23AWG 4PAIR U/FTP LSNH 300m Reel

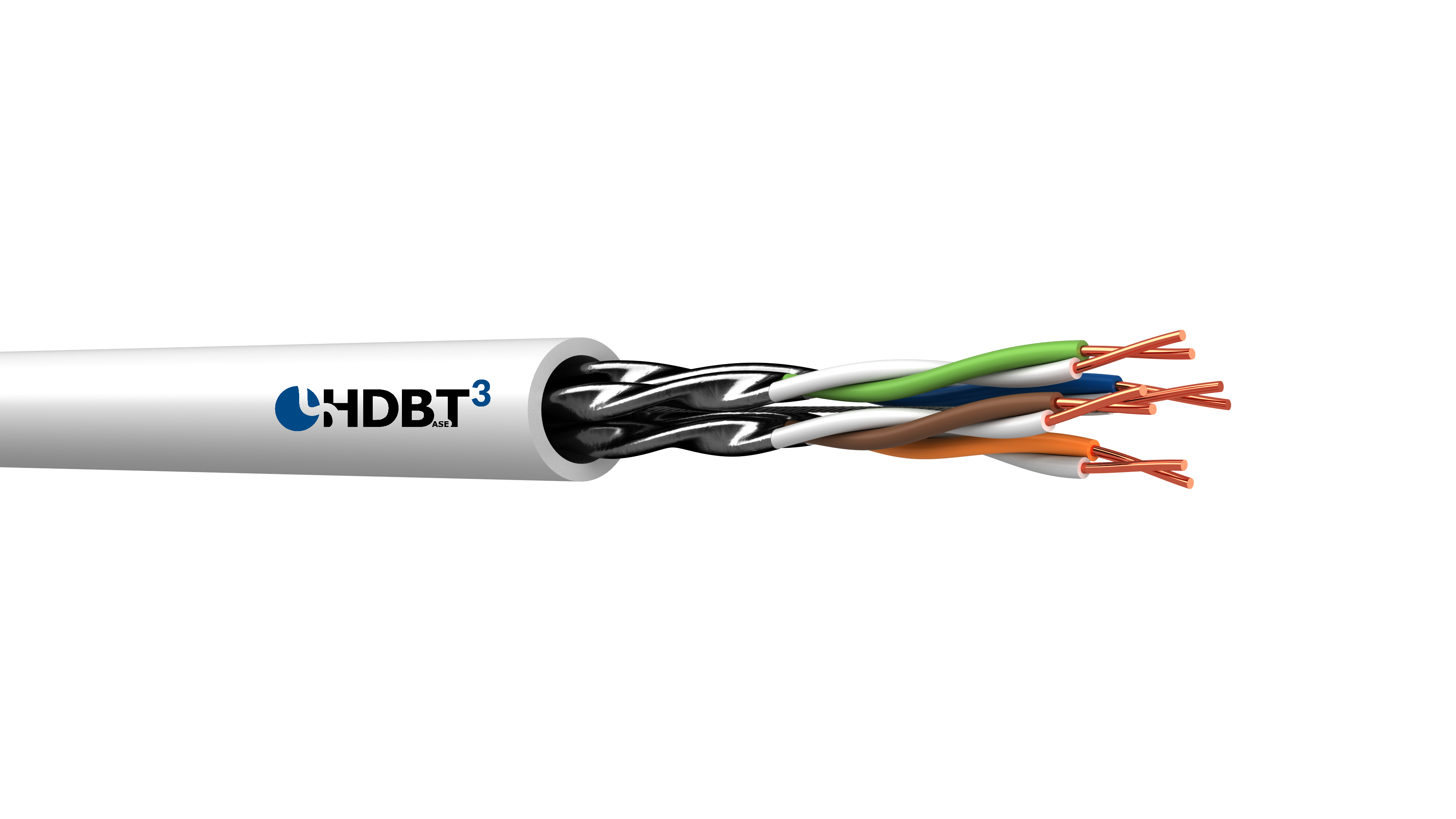

WEBNET Cat 6A U/FTP cable has been tested and certified by the HDBaseT alliance. Featuring individually foil screened pairs and a Low Smoke Non-Halogen (LSNH) sheath it's suitable for installation in public buildings and is CPR classified to Cca s1a, d1, a1 and perfect for installs requiring compliance to BS6701.
HDBaseT’s signature 5Play solution facilitates the simultaneous distribution of uncompressed ultra-high-definition A/V, USB 2.0, Ethernet, control, and power, over a single Category cable for distances up to 100m.
The HDBaseT standard ensures that any two HDBaseT supported devices will work at the highest possible version of their shared feature set, thus leading to more choice for installers and end users.
Available in Blue, Violet, and White on bulk reels and cut to length.
- Features
Conductor Material Bare Copper AWG Size 23 AWG Number of Pairs 4 Insulation Material HDPE Screening Type U/FTP Sheath Material Low Smoke Non-Halogen Flame Retardancy BS EN 60332-1-2 Low Smoke Emissions BS EN 61034-2 Halogen Gas Emissions BS EN 60754-1, BS EN 60754-2 Certifications & Approvals HDBaseT 3.0 Overall Diameter 7.7 mm - Specification
Overall Diameter : 7.7mm ± 0.20mm
Temperature Range Fixed : -20°C to +70°C; Flexing : 0°C to +50°C
Bend Radius Fixed : 4 x Overall Diameter Flexing : 8 x Overall Diameter
Weight : 66 kg/km; 20kg per 300m Reel
- Downloads
Webro WEBNET 120571C
