SDM-XT-FHD – FHD Live Video Streaming and Recording SDM Module
SDM-XT-FHD – FHD Live Video Streaming and Recording SDM Module

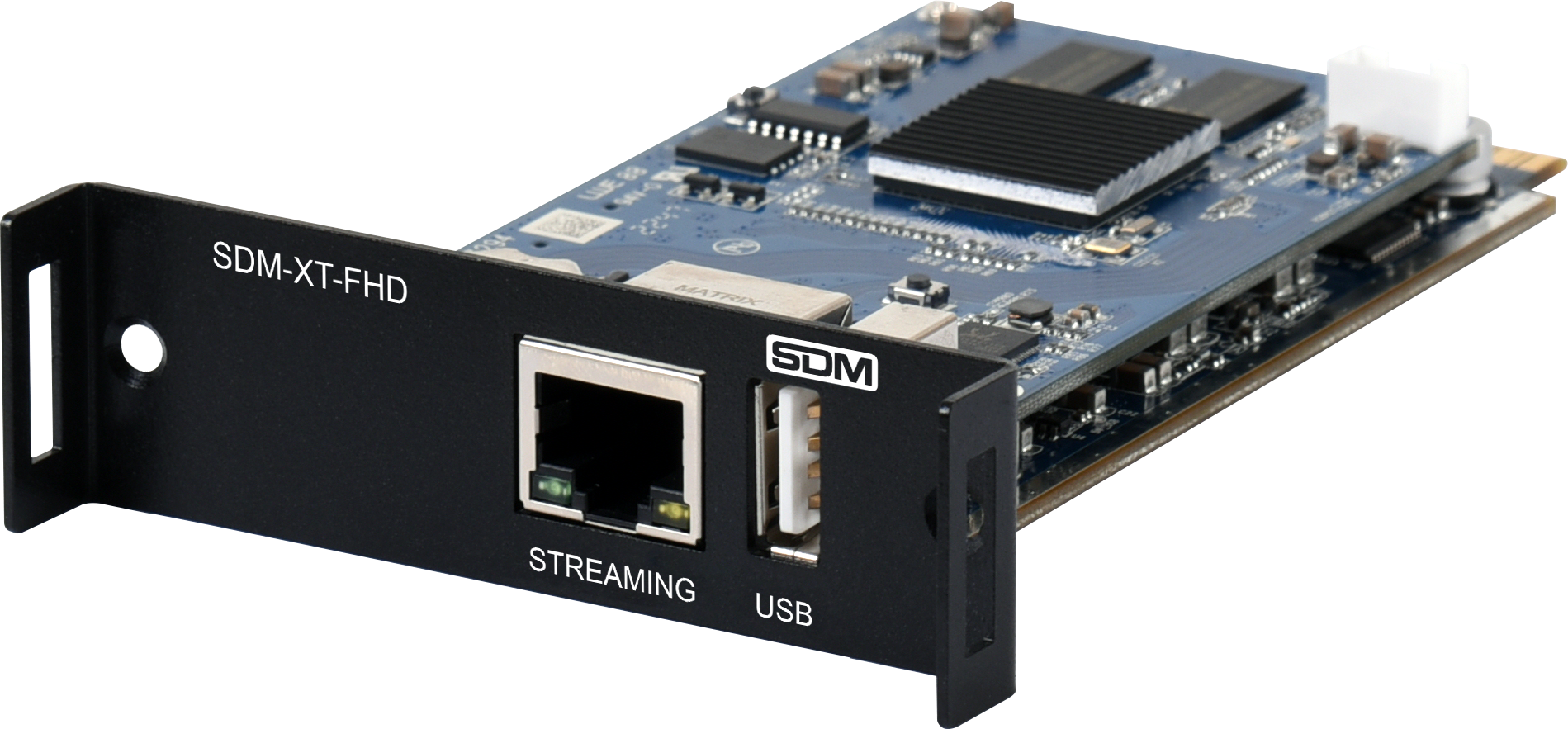

The SDM-XT-FHD SDM module card provides live video streaming and recording via any CYP output based core SDM products, like the OR-PIP42SDMO via it’s standard Gigabit Ethernet connection.
Video received via the core product can be 4K and will automatically converted to up to 1080p 60Hz for streaming. The unit supports RTSP/TCP/UDP/RTMP protocols. All video content is encoded and streamed with minimal latency, making it ideal for live streaming on a variety of popular platforms or within a local network.
The video may also be recorded locally (via USB drive) or to a local network drive at the same time as it is being streamed.
- Features
- Generates a stream Primary stream for large screen use and 3 Service targeted streams for mobile devices
- Supports live direct streaming to Facebook, YouTube, Twitch channels etc
- Supports independent recording to a user-determined destination Recorded video can be stored on locally connected USB storage (FAT or exFAT format) or to a designated network drive supporting NFS or CIFS
- For use with any of CYP's output based SDM core Products
- Specification
Inputs Local USB recording storage Propriety Data [1x USB Type A] Outputs Encoded AV & Data stream [1x RJ45] PSU N/A Dimensions 82mm [W] x 25mm [H] x 111mm [D] Net Weight 100g Gross Weight 200g - Downloads
SDM-XT-FHD Manual
SKUSDM-XT-FHD
