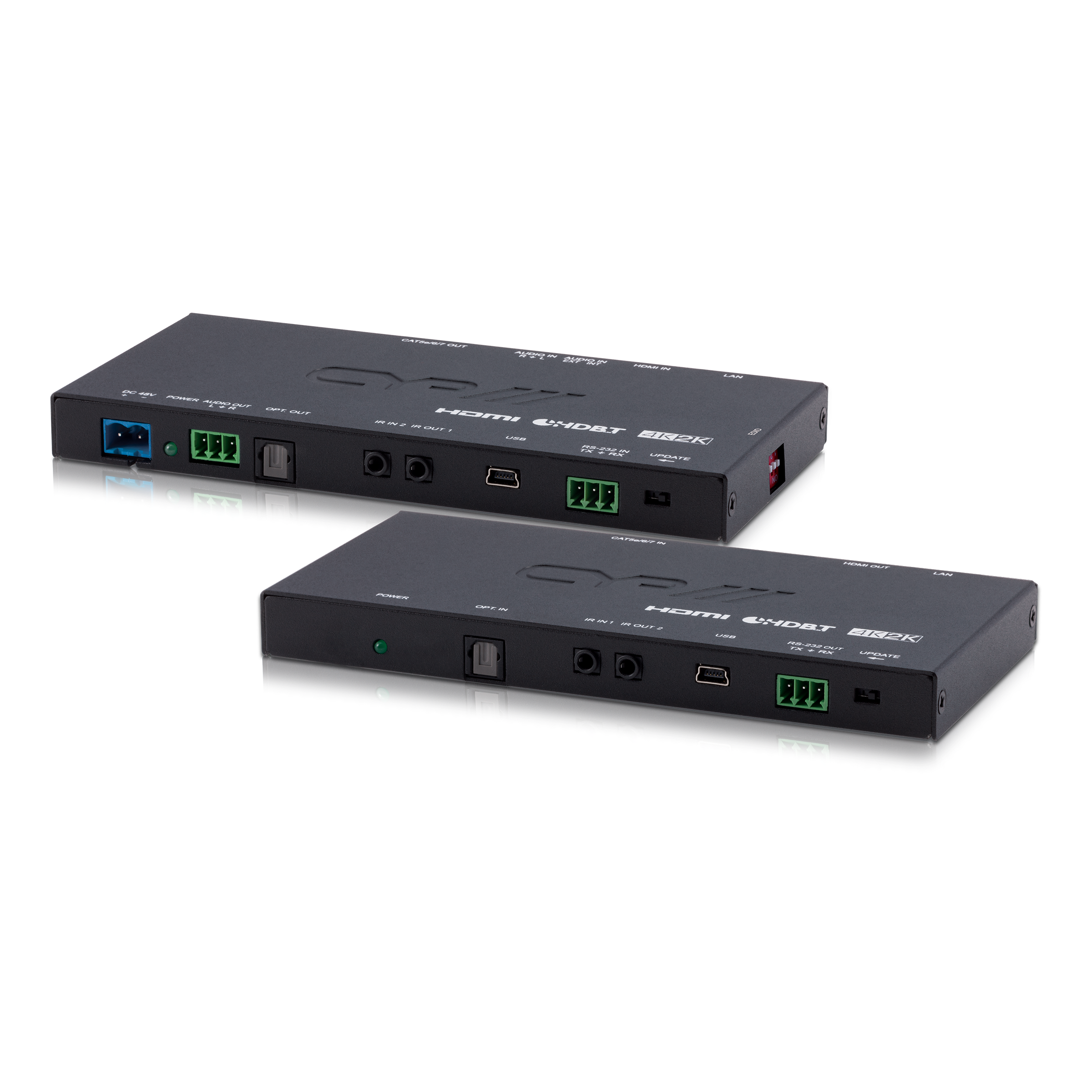

PUV-1530-KIT – HDBaseT1 Transmitter & Receiver Kit with LAN, OAR & PoH
PUV-1530-KIT – HDBaseT1 Transmitter & Receiver Kit with LAN, OAR & PoH

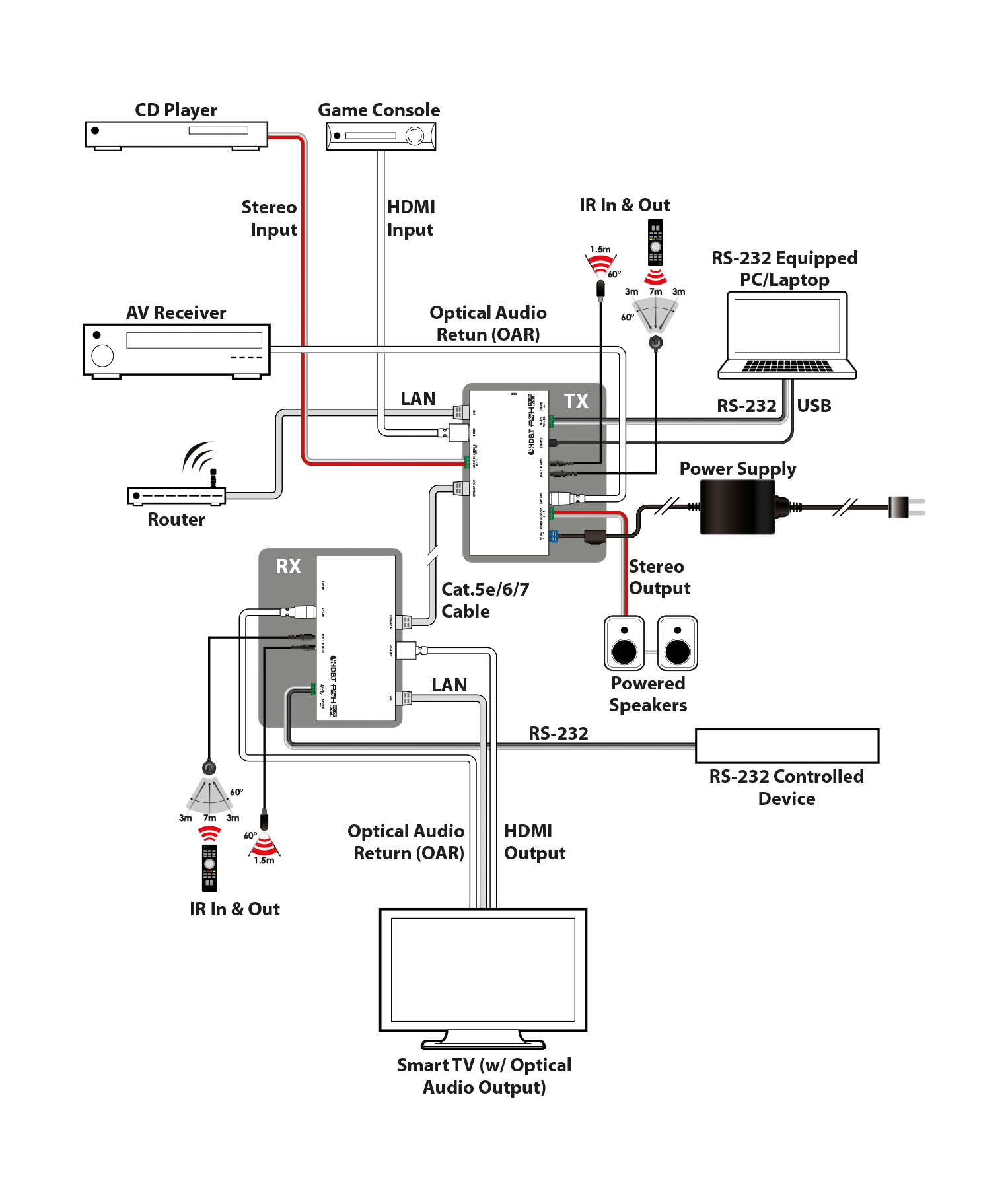

The PUV-1530-KIT Transmitter and Receiver Kit enables transmission of video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), OAR (Optical Audio Return), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.
- Features
- HDCP2.2 Compliant
- HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
- Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
- 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
- Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
- Optical Audio Return (OAR)
- Supports optical sampling rate up to 48kHz
- Supports HDCP repeating and CEC functions
- Supports 3D signals
- Specification

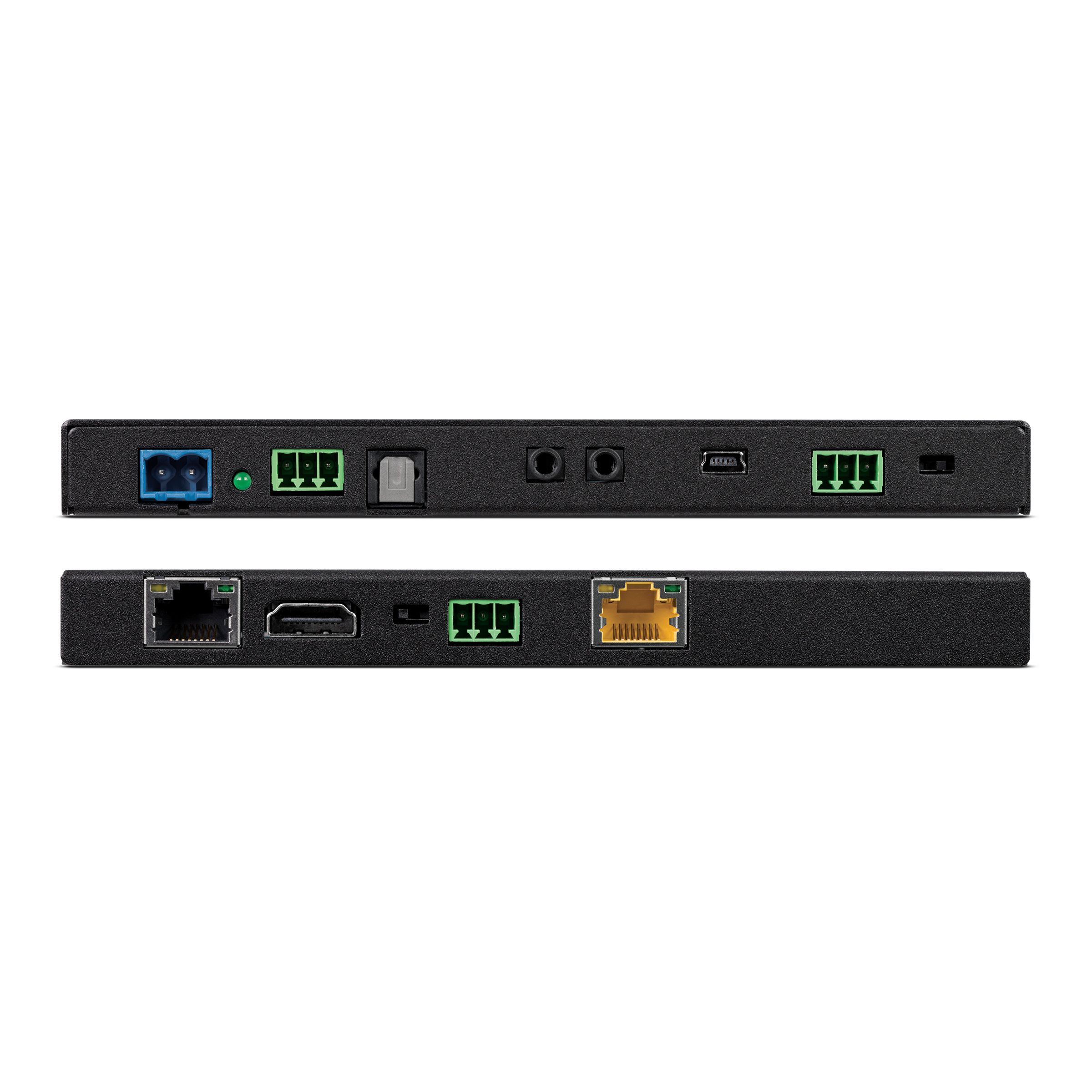

TX Inputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Input]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x RS-232]
1x RJ45 [1x LAN Serving]
1x USB 3 Type B [1x Service Port Power & Data]Outputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM]
1x Phoenix (3 pin) [1x Analogue Stereo (L/R) Audio Output]

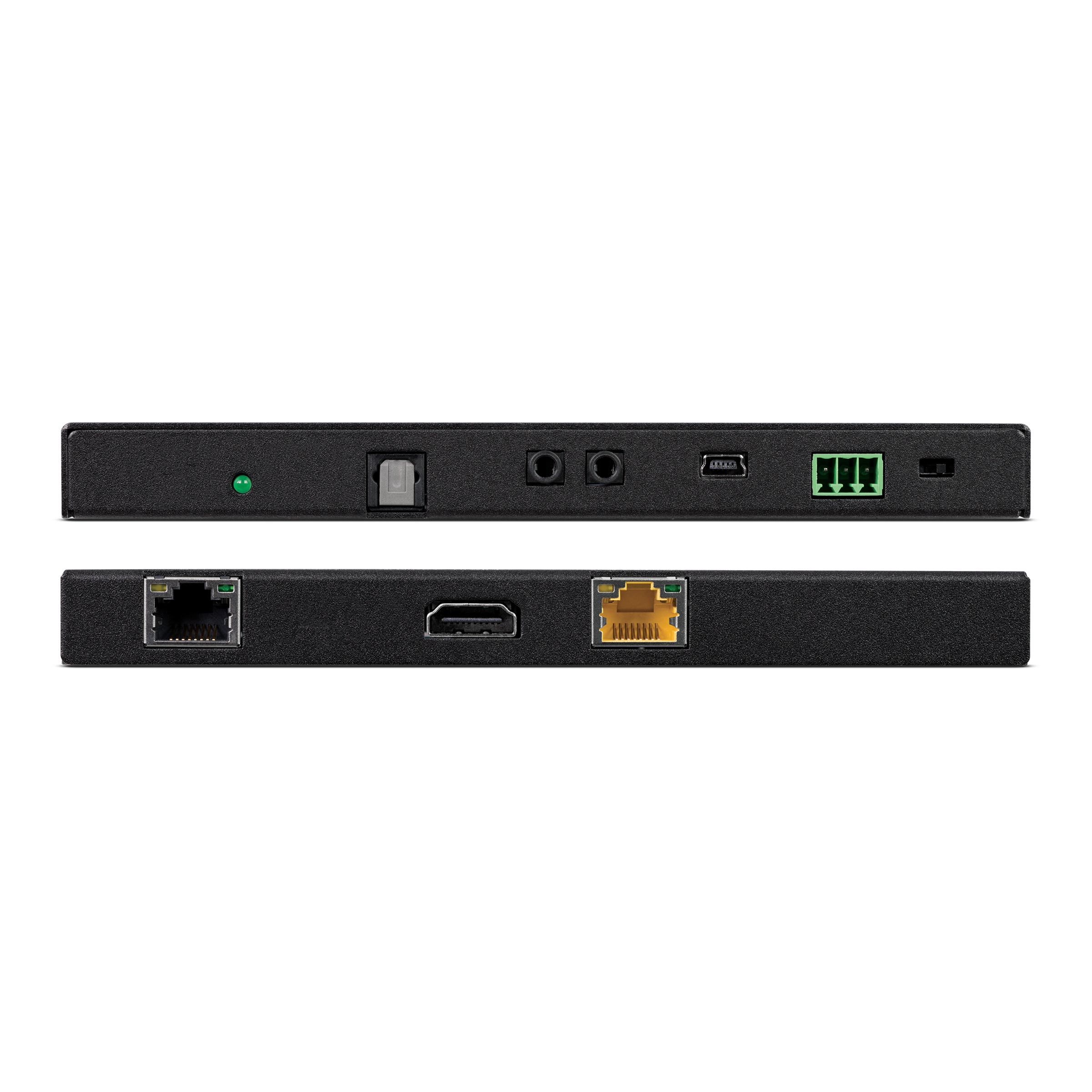

1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]PSU 48V/0.83A Dimensions 163mm [W] x 16mm [H] x 78mm [D] Net Weight 0.335kg Gross Weight 0.95kg RX Inputs 1x RJ45 [1x HDBaseT - HDMI & Propriety Data]
1x Toslink [1x OAR digital pathway - 2 Channel LPCM / DTS / Dolby Digital]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x USB Type A [1x Service Port Propriety Data]Outputs 1x HDMI [1x HDMI - Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x RJ45 [1x LAN Serving]
1x Phoenix (3 pin) [1x RS-232]PSU PoH Dimensions 163mm [W] x 16mm [H] x 78mm [D] Net Weight 0.335kg Gross Weight 0.95kg - Downloads
PUV-1530-KIT Manual
