IP-XTREAM-R4K – Standalone 4K (H.265) Streaming and Recording System with HDMI In with HDMI Monitor & Balanced Audio Output
IP-XTREAM-R4K – Standalone 4K (H.265) Streaming and Recording System with HDMI In with HDMI Monitor & Balanced Audio Output
The IP-XTREAM-R4K system enables online broadcasting of live video, with a locally stored archive, an easy and simple process. Video content up to full 4K is supported with 4K streaming up to 4:4:4 30Hz or 4:2:0 60Hz. 4 individual streams can be created for different viewing hardware, primary stream is H.265 with all secondary streams at H.264 ensuring the IP-XTREAM-R4K creates a versatile platform for customer engagement.
The streamed video can be recorded locally (via USB drive) or to a local network drive. Comprehensive & intuitive Web GUI with Scheduling function make this unit a wonderful tool for video streaming and recording.
- Features
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 1.x and HDCP 2.2 compliant Note: HDCP encrypted sources cannot be streamed, and will only be visible via the HDMI output
- 1 HDMI input with HDMI and balanced audio outputs
- Generates streams using H.265 (Primary stream) and H.264 (3 Service targeted streams)
- Supports live streaming to Facebook, YouTube, Twitch channels etc
- Supports independent recording to a user-determined destination
- Recorded video can be stored on locally connected USB storage (FAT or exFAT format) or to a designated network drive supporting NFS or CIFS
- Supports encrypting streams using 802.1X security (PEAP, TLS, TTLS)
- Specification

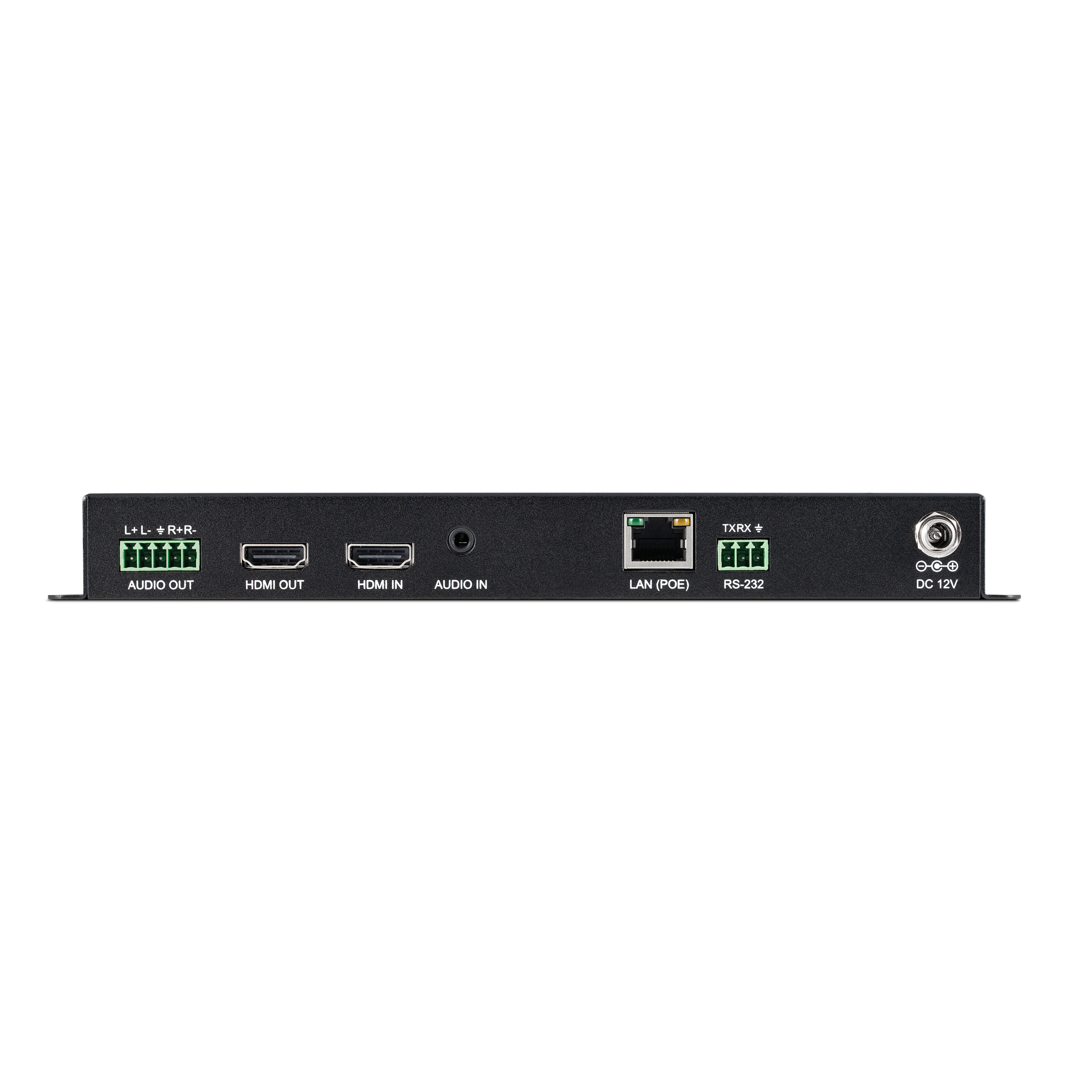

Inputs HDMI Uncompressed AV and Data [1x HDMI]
Analogue Stereo(L/R) [1x 3.5mm Stereo mini-jack]
Stream out & PoE IP [1x RJ45]
RS-232 [1x Phoenix (3 pin)]USB Storage record / service port Propriety Data [1x USB Type A]Outputs HDMI Uncompressed AV and Data [1x HDMI]
Analogue Stereo (Balanced or Unbalanced) [1x Phoenix (5 pin)]PSU 12V/3A Dimensions 231.5mm [W] x 25mm [H] x 108mm [D] Net Weight 660g Gross Weight 1740g - Downloads
IP-XTREAM-R4K Manual
SKUIP-XTREAM-R4K
