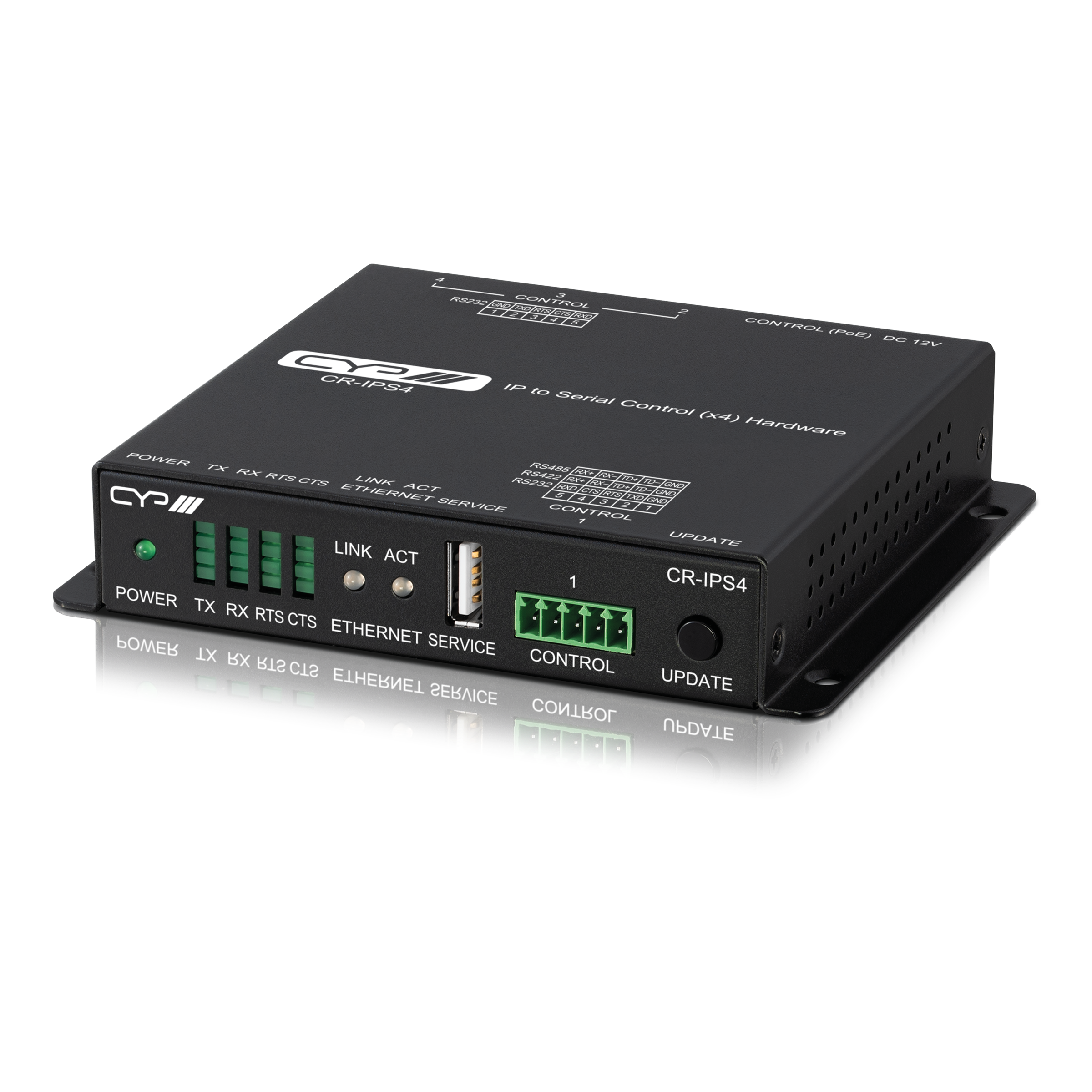

CR-IPS4 – IP to Serial Controller with 4 x I/O Ports
CR-IPS4 – IP to Serial Controller with 4 x I/O Ports
The CR-IPS4 is a Control System Center for users to control a variety of serial devices. This four way version supports RS-232 at each I/O port and 1 port for the additional use of RS-422 or RS-485. Users can connect up to four devices simultaneously and control them via a 3 (or 5)-pin adapter cable to send RS-232/422/485 commands from this unit.
Comprehensive user control interfaces are available, including WebGUI, Telnet, and console (RS-232 in).
This unit can be powered either by a 12V/1.25A adapter or Power over Ethernet (PoE), allowing it to be powered directly from a standard PoE network switch without the need for an external power adapter, providing incredible installation flexibility.

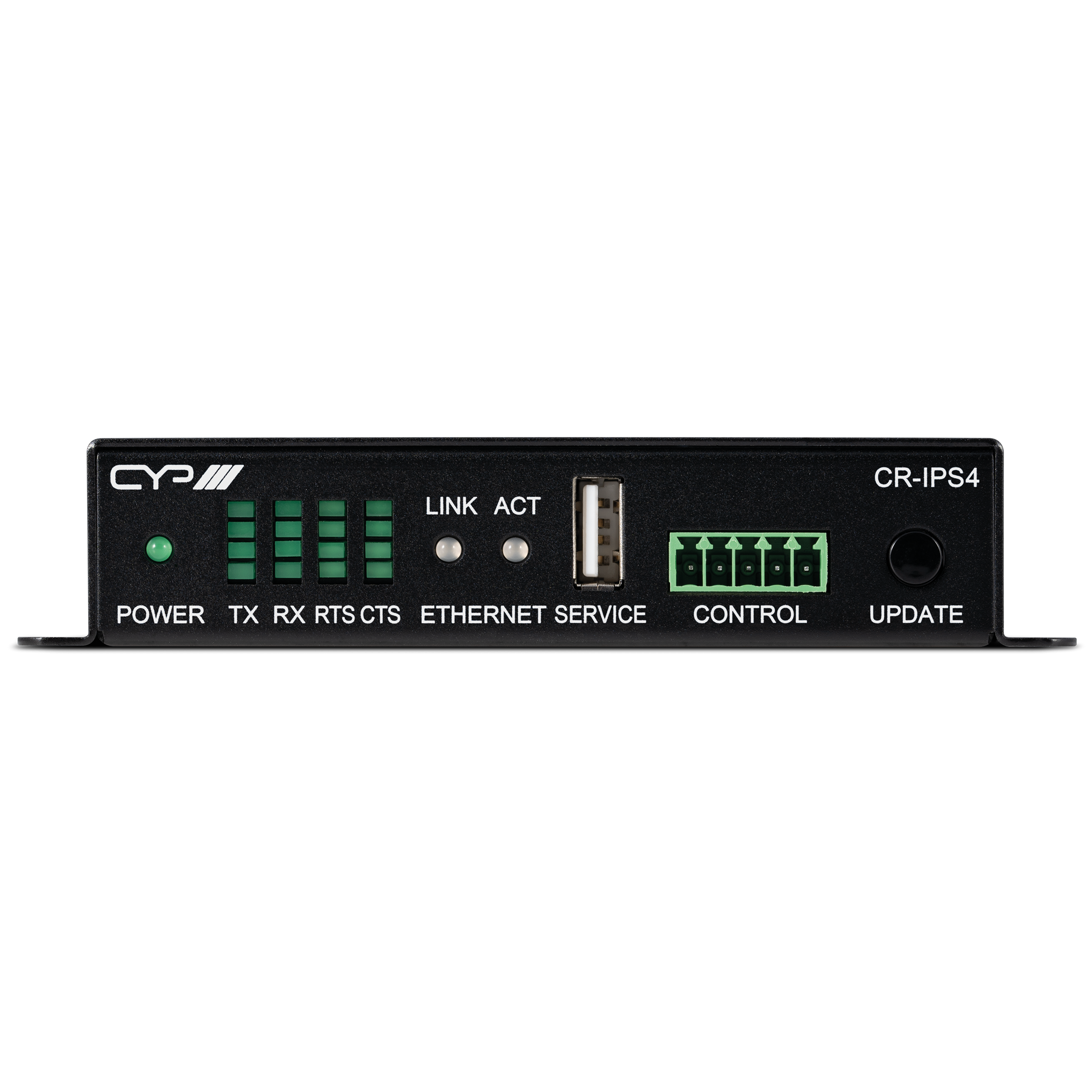

The LEDs on the board provide status indicators for users to check: power and Ethernet status. It supports IEEE 802.1x RTS/CTS protocol to avoid hidden stations. The unit also provides a hotkey for convenient firmware updates
- Features
- Support one RS-232/422/485 port and three RS-232 ports
- Enable control up to four devices simultaneously
- Support multiple user control interfaces including WebGUI, Telnet and RS-232/422/485
- Support IEEE 802.1x RTS/CTS protocol
- Support Power over Ethernet (PoE), providing incredible installation flexibility
- LED indicates the unit’s status for confirmation
- Firmware can be easily updated in the field either via USB or using the hotkey
- Specification
Inputs 1x RJ45 [1x LAN & PoE Propriety Data]
1x USB Type A [1x Service Port Propriety Data]Outputs 1x Phoenix (5 pin) [1x RS-232 / RS-422 / RS-485 Com Port]
3x Phoenix (5 pin) [3x RS-232 Com Port]POE PSU PoE PSU 12V/1.25A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 360g Gross Weight 760g - Downloads
CR-IPS4 Manual
