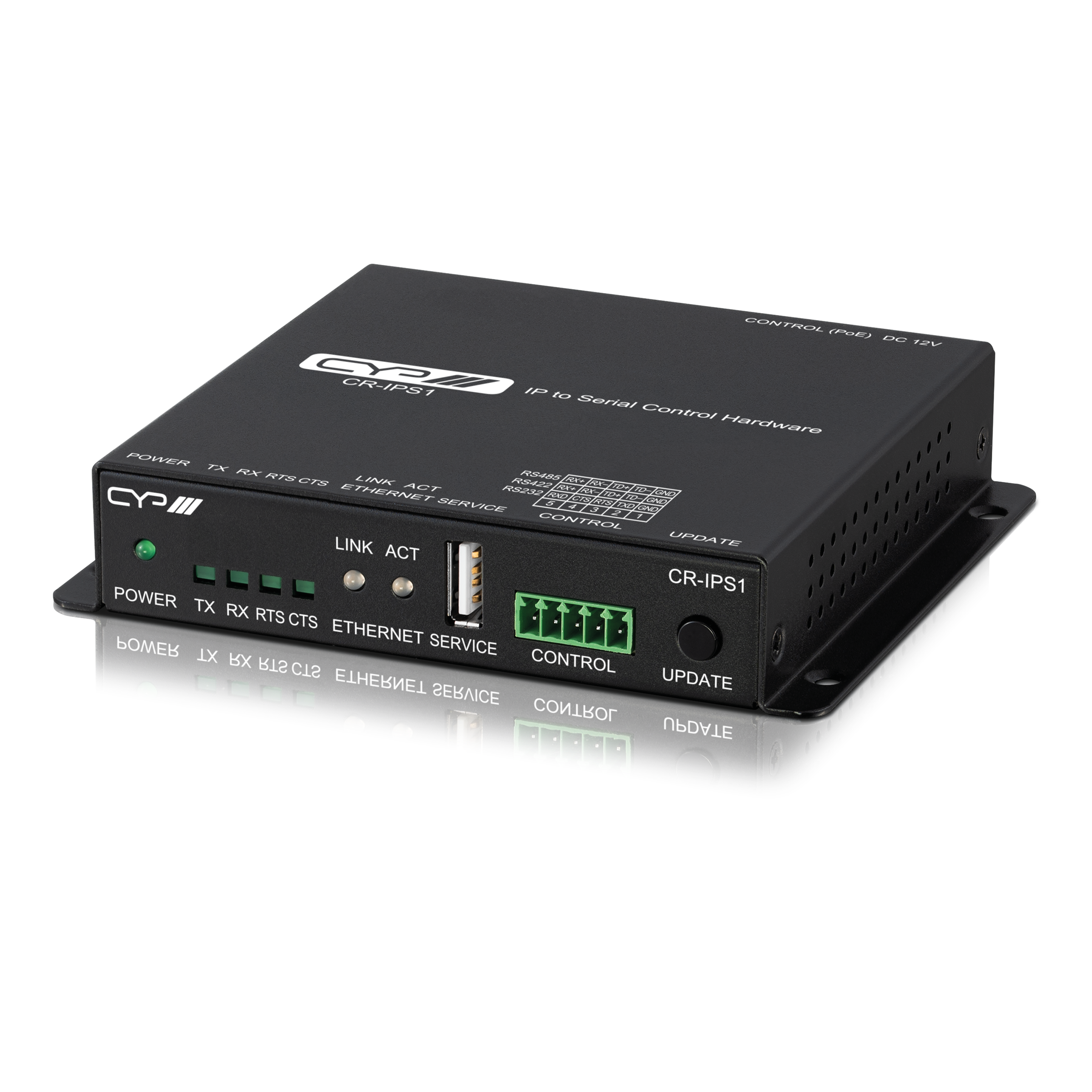

CR-IPS1 – IP to Serial Controller with a Single I/O Port
CR-IPS1 – IP to Serial Controller with a Single I/O Port
The CR-IPS1 Control System Centre is for users to control a single Serial device of any variety. It supports one RS-232/422/485 port. Users can connect device and control it via a 3 (or 5)-pin adapter cable to send RS-232/422/485 commands from this unit.
Comprehensive user control interfaces are available, including WebGUI, Telnet, and console (RS-232 in).This unit can be powered either by a 12V/1.25A adapter or Power over Ethernet (PoE), allowing it to be powered directly from a standard PoE network switch without the need for an external power adapter, providing incredible installation flexibility.

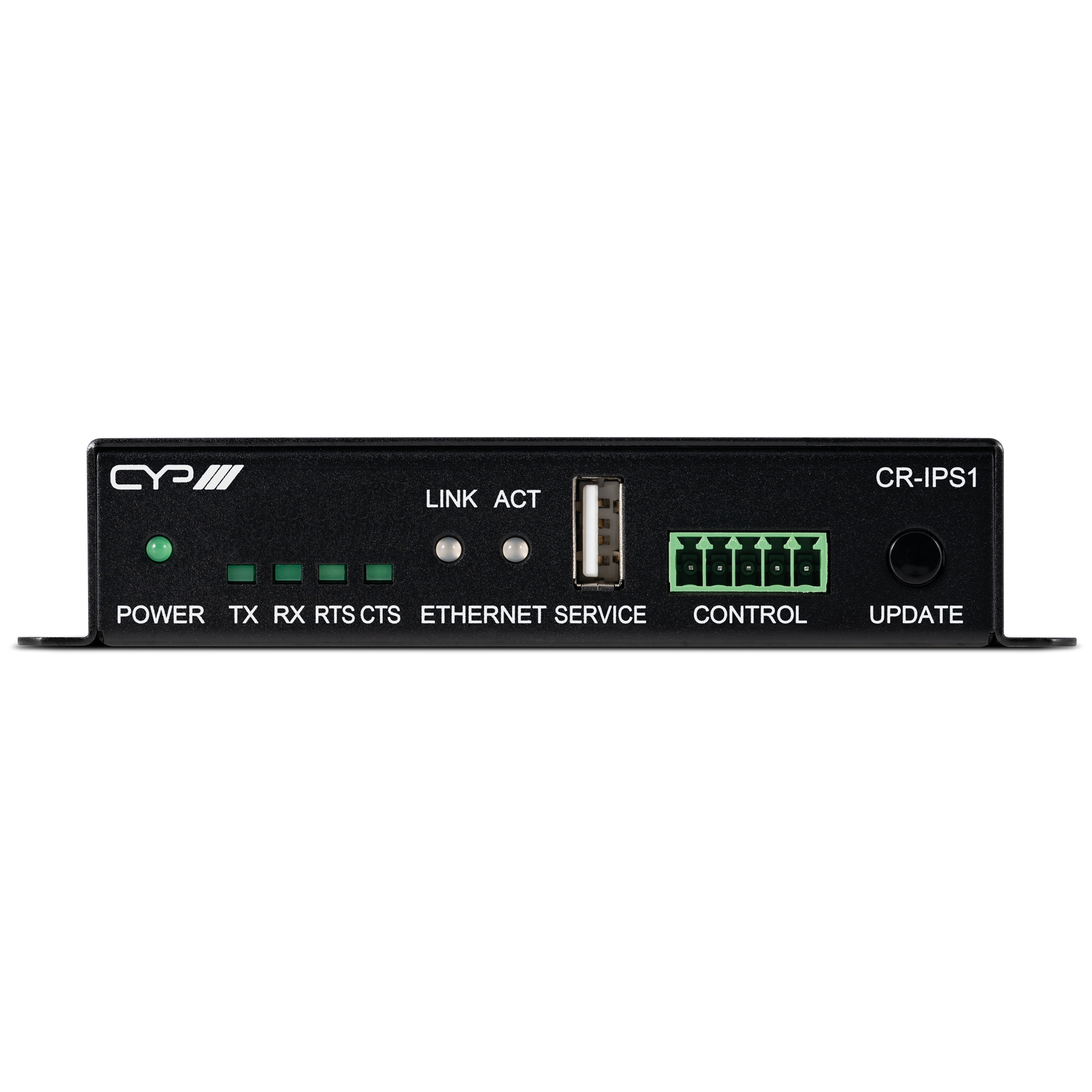

The LEDs on the board provide status indicators for users to check: power and Ethernet status. It supports IEEE 802.1x RTS/CTS protocol to avoid hidden stations. The unit also provides a hotkey for convenient firmware updates.
- Features
- Support one RS-232/422/485 port
- Support multiple user control interfaces including WebGUI, Telnet and RS-232/422/485
- Support IEEE 802.1x RTS/CTS protocol
- Support Power over Ethernet (PoE), providing incredible installation flexibility
- LED indicates the unit’s status for confirmation
- Firmware can be easily updated in the field either via USB or using the hotkey
- Specification

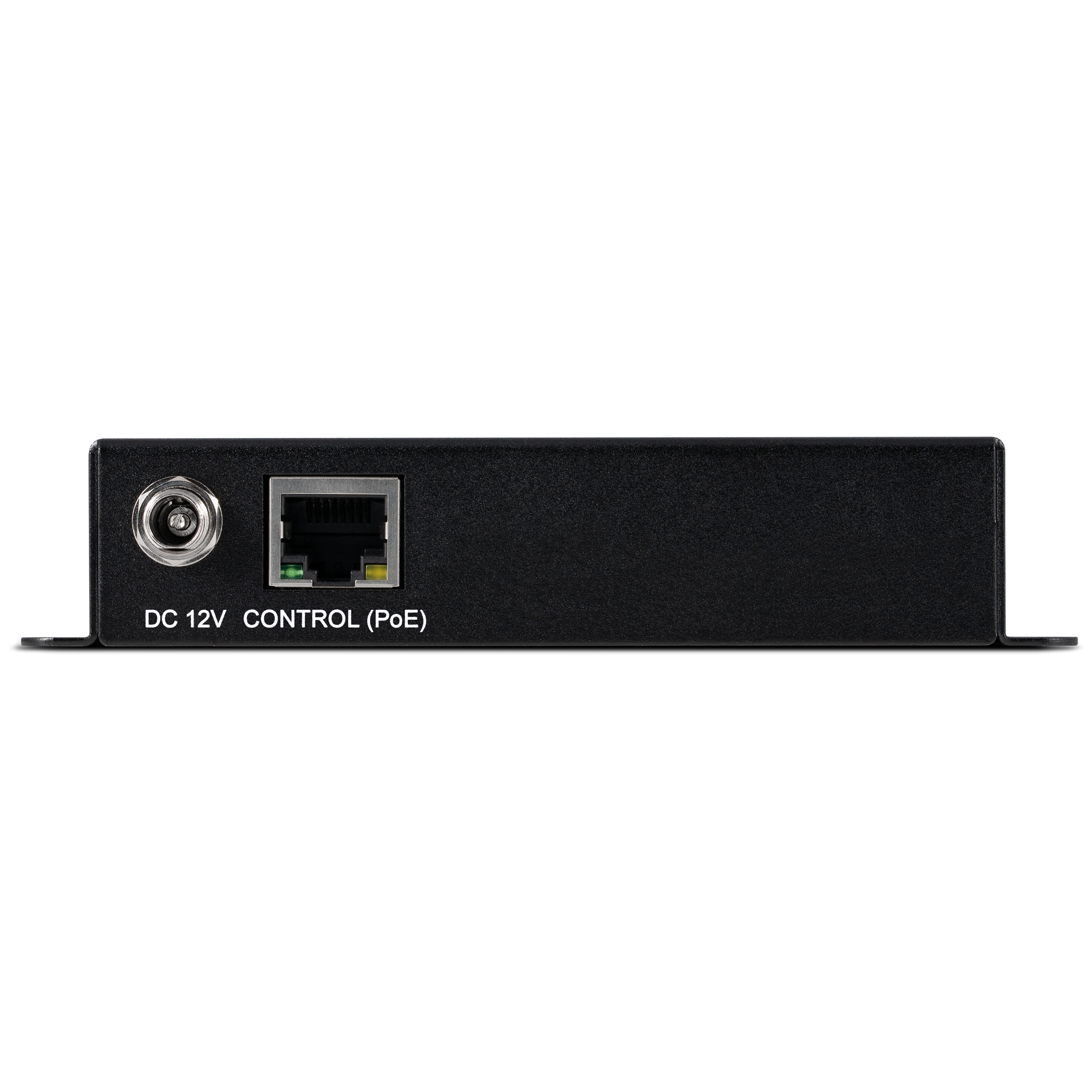

Inputs 1x RJ45 [1x LAN PoE IP]
1x USB Type A [1x Service Port Propriety Data]Outputs 1x Phoenix (5 pin) [1x RS-232 / RS-422 / RS-485 Com Port] POE PSU PoE PSU 12V/1.25A Dimensions 128mm [W] x 25mm [H] x 108mm [D] Net Weight 360g Gross Weight 740g - Downloads
CR-IPS1 Manual
