The AVX-105F-KIT 4K UHD+ USB-C to HDMI over fiber KIT is designed for high-quality AV extension with minimal latency thanks to AVX technology.
By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K@60Hz (4:4:4) HDMI audio/video streams.
Advanced HDMI content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be easily transmitted. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 30km (Maximum transmission distance depends on the SFP+ modules used). In addition, this unit’s compact form factor makes it ideal for installation in tight spaces, or inclusion in A/V travel kits.
This KIT includes both the transmitter and receiver and also includes standard SFP+ modules capable of transmission distances of up to 300m with OM3 fiber cable. (Fiber cable not included).
- Features
- HDMI 2.0 (via USB-C) compatible
- HDCP 2.2 and HDCP 1.x compliant

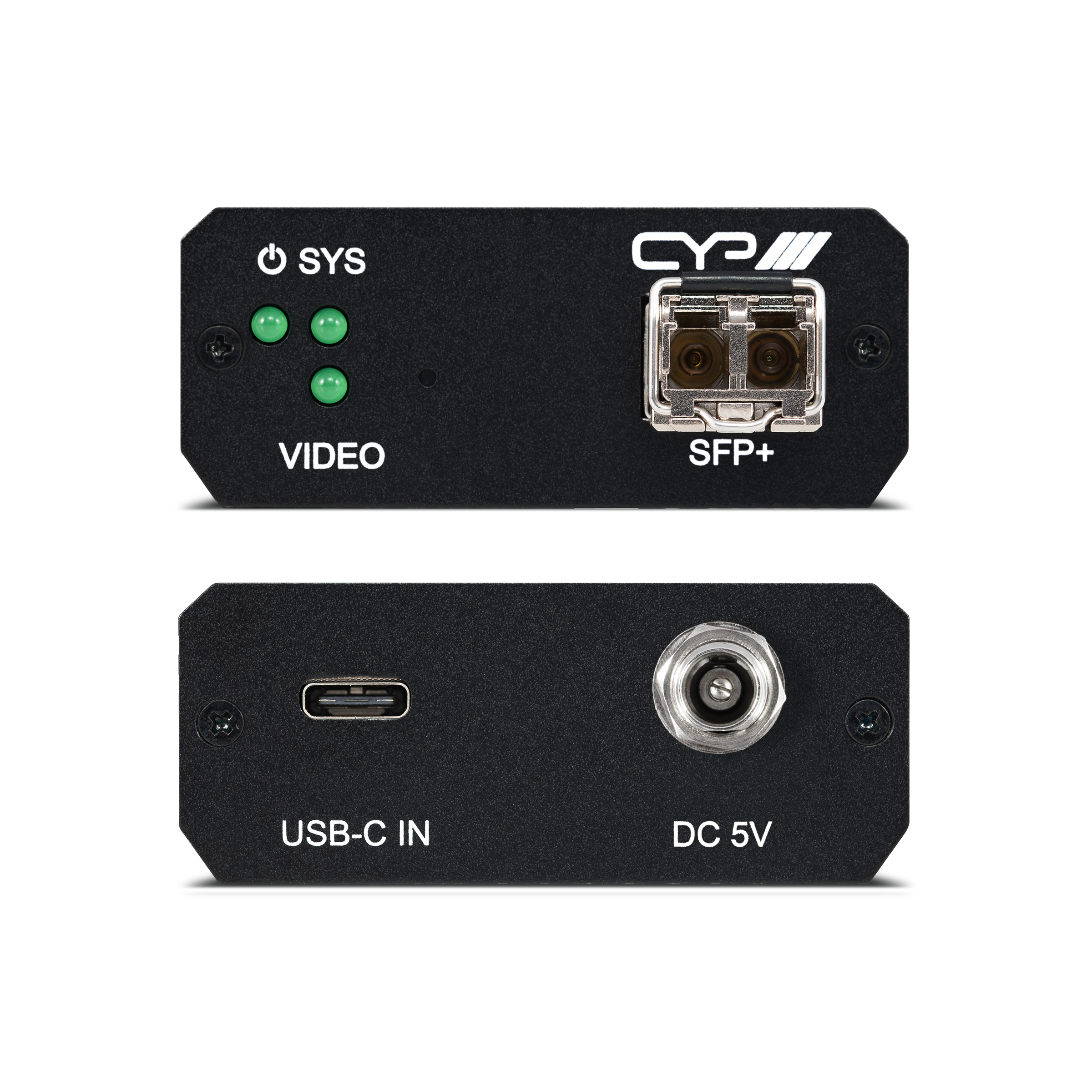

- TX: 1 x USB-C input & 1 x fiber (SFP+) output

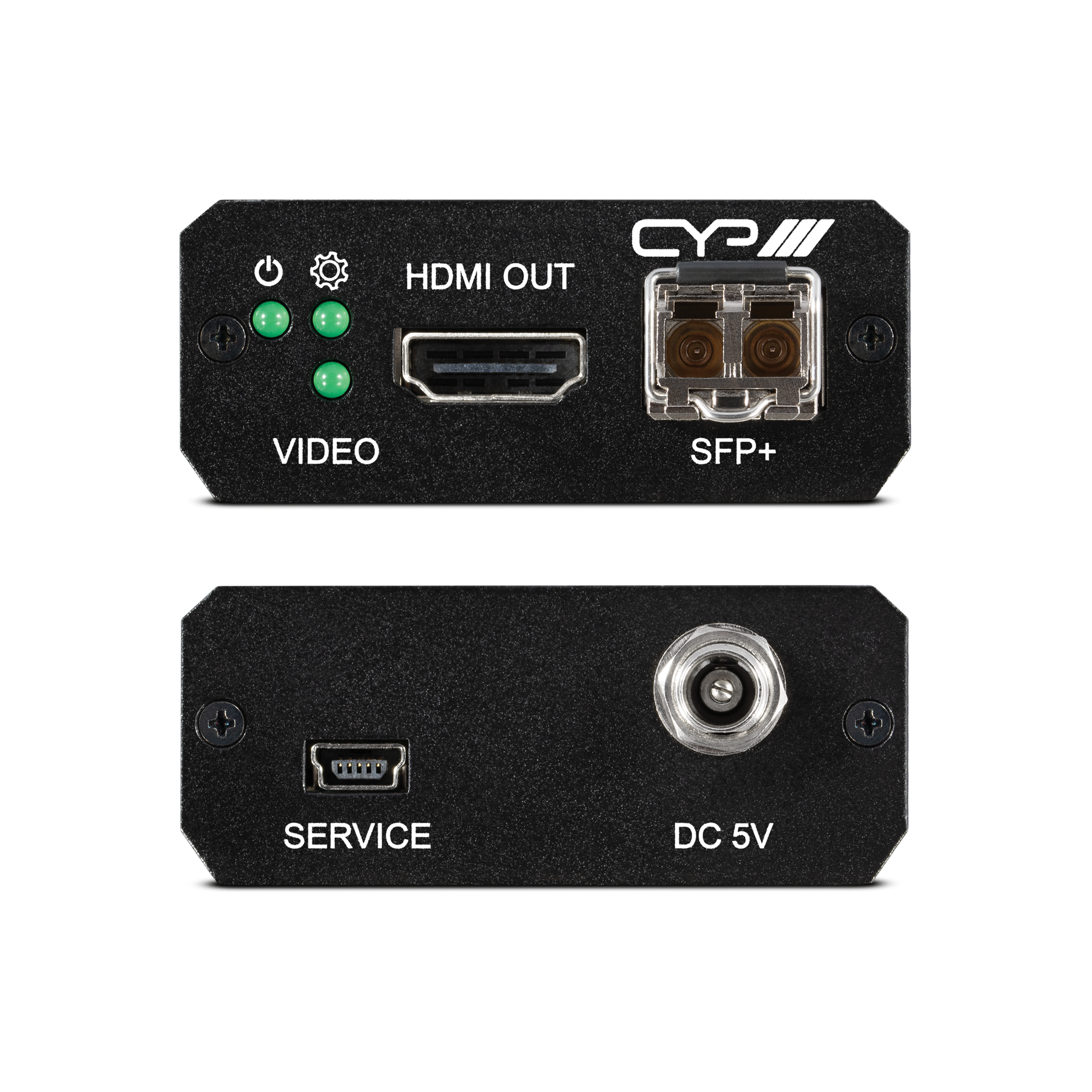

- RX: 1 x fiber (SFP+) input & 1 x HDMI output
- Ultra-light compression, lossless for most content
- Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used)
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output)
- Supports pass-through of 10/12-bit HDR sources
- Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream

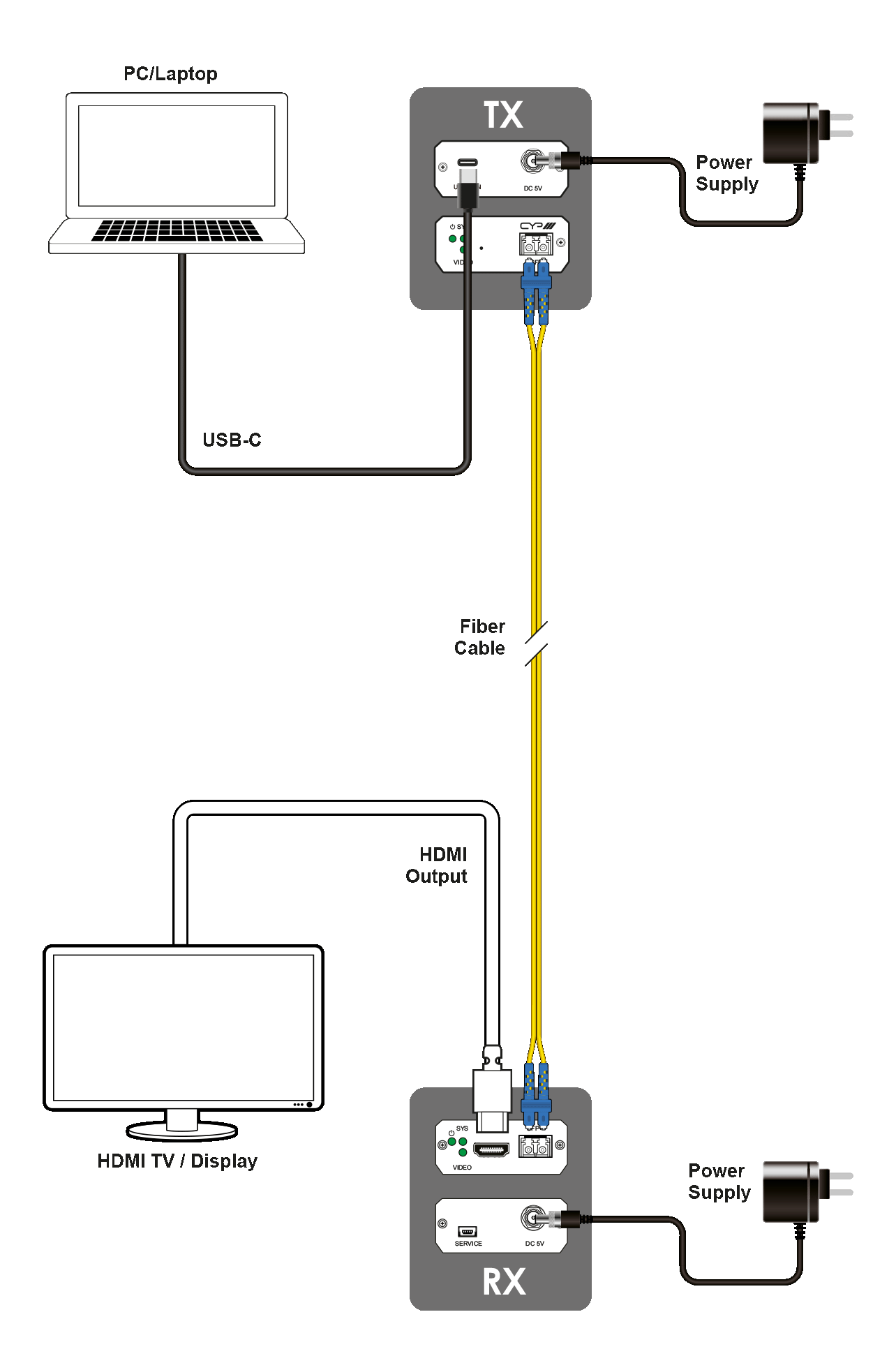

- Simple, hassle free, point-to-point connection
- Specification
Inputs 1x USB-C [1x TX: USB-C / Thunderbolt]
1x LC-LC Duplex Multimode 62.5-125 Fibre [1x RX: SFP+ HDMI & Propriety Data]Outputs 1x LC-LC Duplex Multimode 62.5-125 Fibre [1x TX: SFP+ HDMI & Propriety Data]
1x HDMI [1x RX: HDMI Uncompressed AV and Data]PSU 5V/2.6A Dimensions 60mm [W] x 25mm [H] x 95mm [D] Net Weight 180g Gross Weight 1000g - Downloads
AVX-105F-KIT Manual
