AVX-105C-KIT – AVX Full 4K USB-C to HDMI AV over CAT Transmitter/Receiver KIT
AVX-105C-KIT – AVX Full 4K USB-C to HDMI AV over CAT Transmitter/Receiver KIT

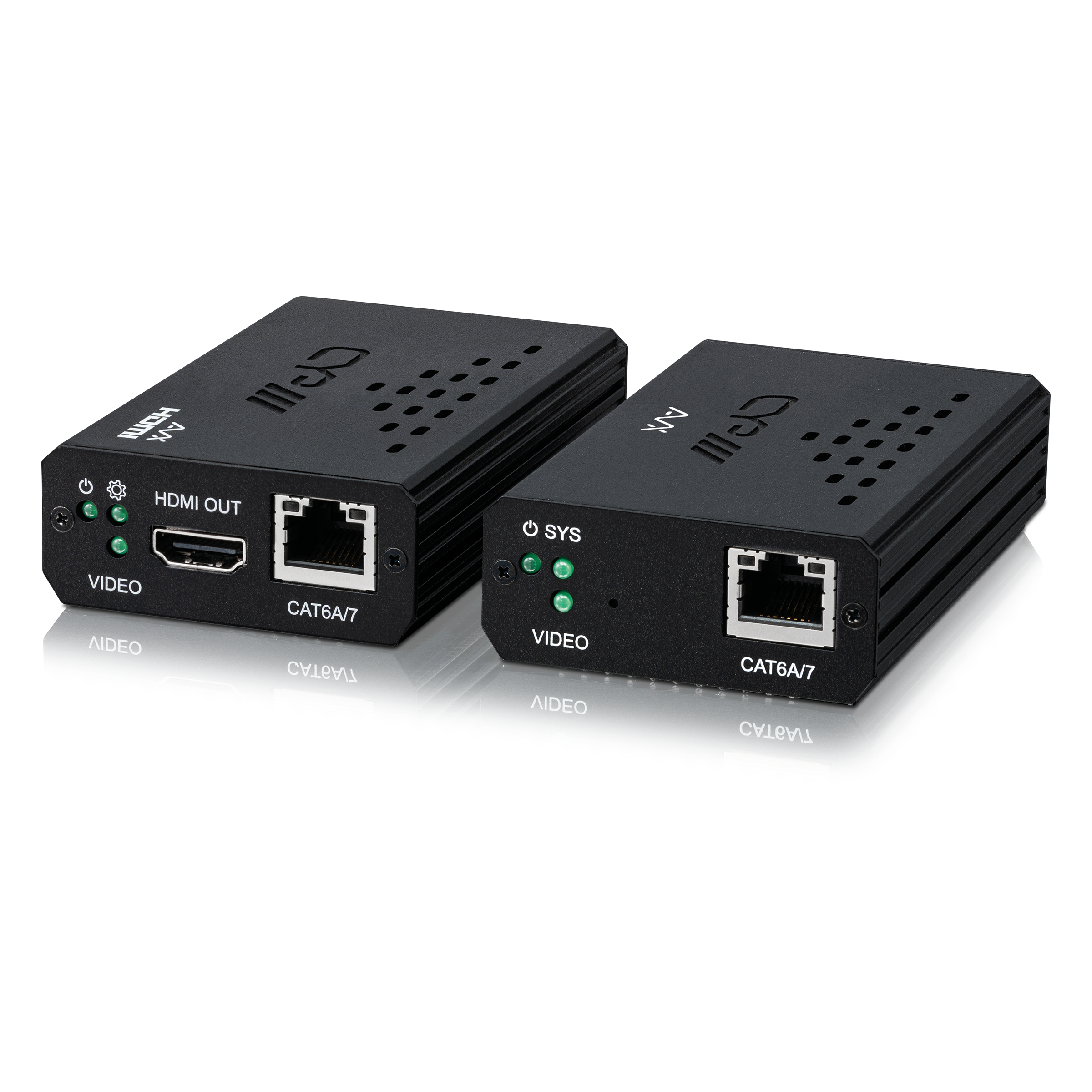

The AVX-105C-KIT is a 4K UHD+ USB-C over CAT Transmission kit, that is designed for high-quality AV extension with minimum latency.
By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K@60Hz (4:4:4) audio/video streams.
Advanced video content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be easily transmitted. The use of 10 Gigabit Ethernet allows for extension distances of up to 100m when using Cat.6A/7. Additionally, this unit’s compact form factor, and its PoE functionality, which can extend power to the receiver, makes it ideal for installation in tight spaces, or inclusion in AV rental kits.
- Features
- HDMI 2.0 (via USB-C) compatible
- HDCP 2.2 and HDCP 1.x compliant
- Ultra-light compression, lossless for most content
- Extension up to 100m when using Cat.6A/7
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Supports pass-through of 10/12-bit HDR sources
- Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream

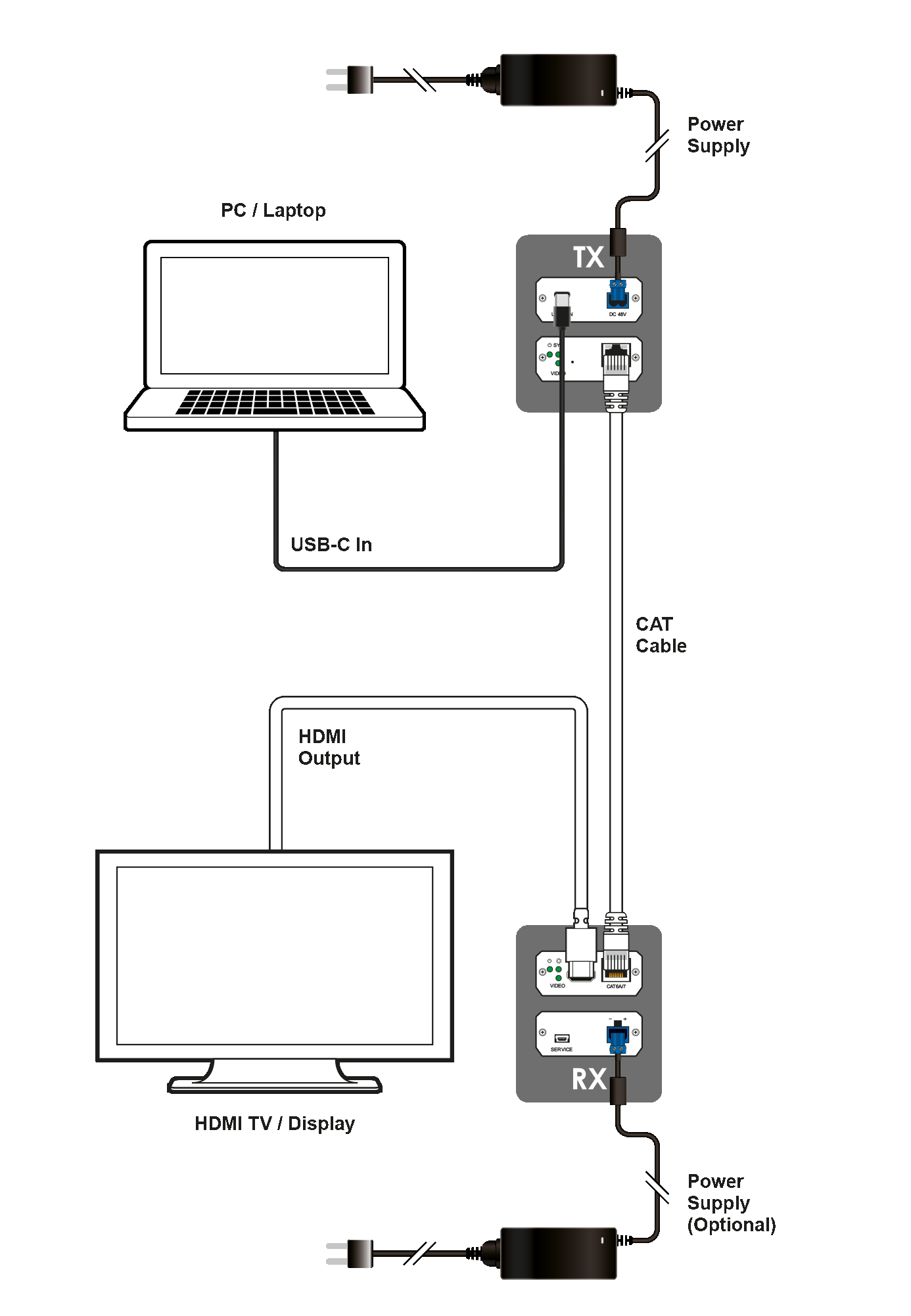

- Simple, hassle free, point-to-point connection
- Supports PoE which can extend power from the transmitter to the receiver. (Compatible receivers only)
- Specification

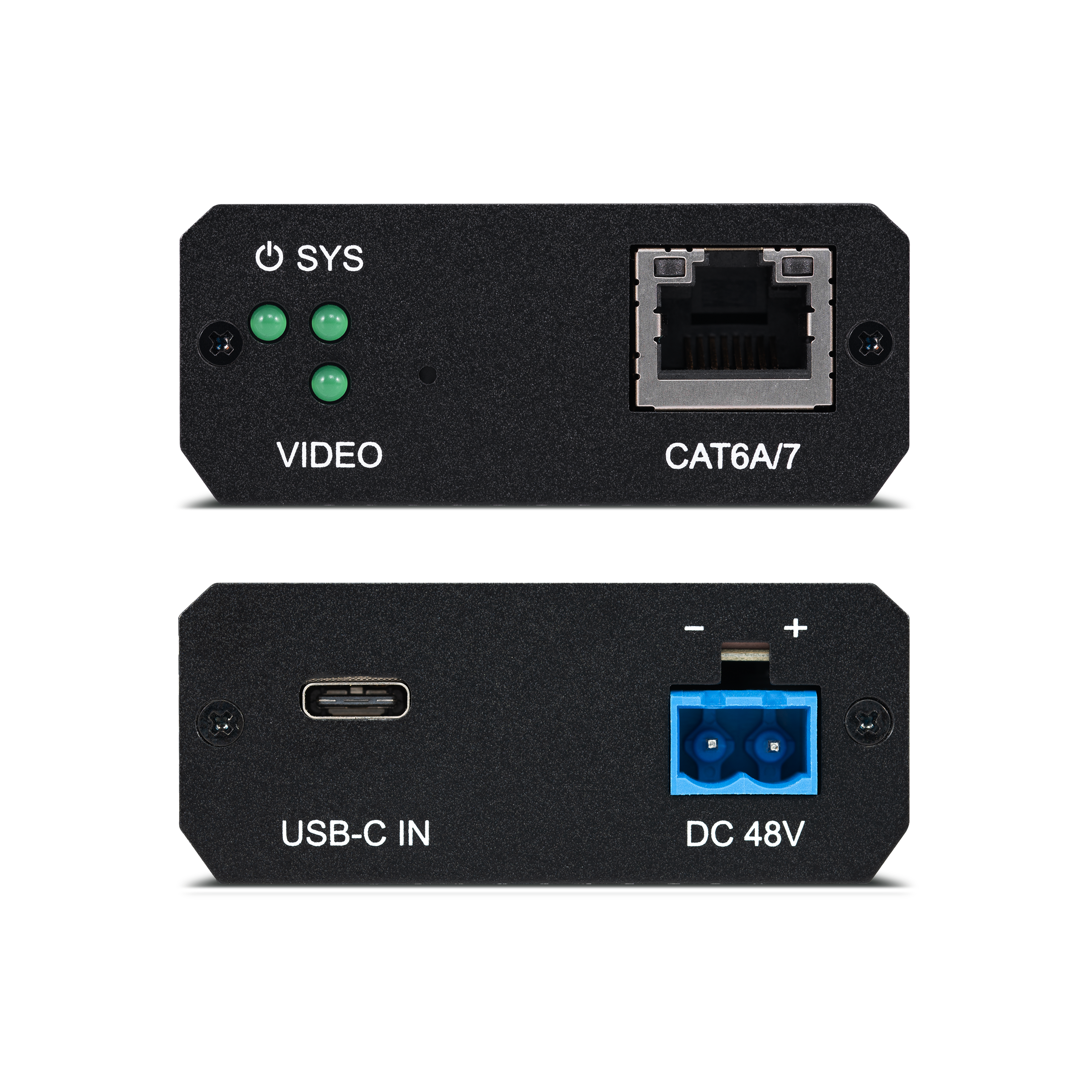

Inputs 1x USB-C [1x TX: USB-C / Thunderbolt]

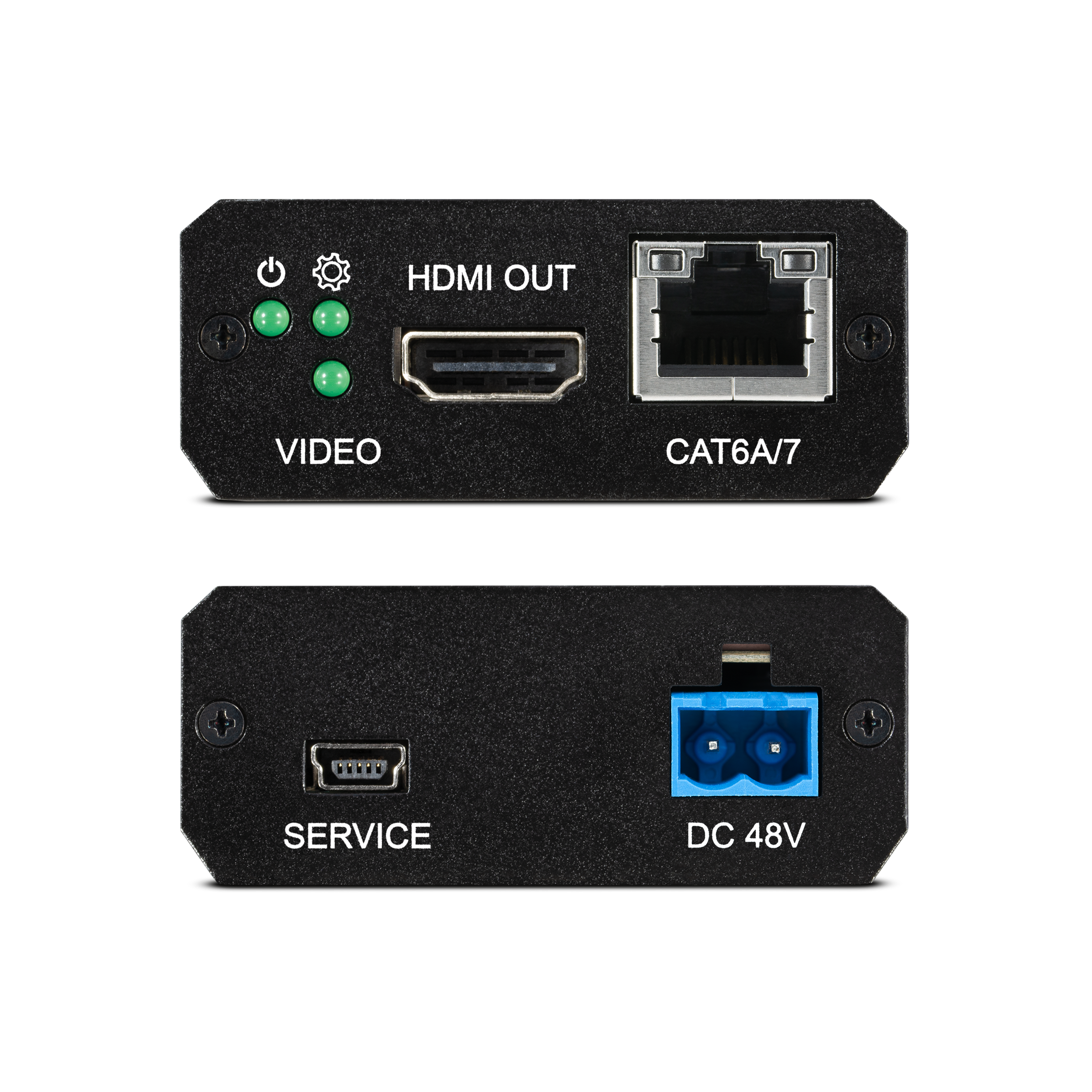

1x RJ45 [1x RX: AVX Extend HDMI & Propriety Data]Outputs 1x RJ45 [1x TX: AVX Extend HDMI & Propriety Data]
1x HDMI [1x RX: HDMI Uncompressed AV and Data]POE PSU PoE PSU 48V/0.83A Dimensions 60mm [W] x 25mm [H] x 95mm [D] Net Weight 180g Gross Weight 1200g - Downloads
AVX-105C-KIT Manual
